Terminal for Industrial Air Conditioner System of Cassette Fan Coil Unit,4-way-1400CFM

China Terminal for Industrial Air Conditioner System of Cassette Fan Coil Unit,4-way-1400CFM supplier
Terminal for Industrial Air Conditioner System of Cassette Fan Coil Unit,4-way-1400CFM supplier Terminal for Industrial Air Conditioner System of Cassette Fan Coil Unit,4-way-1400CFM supplier Terminal for Industrial Air Conditioner System of Cassette Fan Coil Unit,4-way-1400CFM supplier

Large Image :  Terminal for Industrial Air Conditioner System of Cassette Fan Coil Unit,4-way-1400CFM

Product Details:

Place of Origin: China
Brand Name: MECO, DEKON OR OEM BRAND
Certification: CE
Model Number: Pls contact sales02@china-fancoil.com directly

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: Pls mail to sales02@china-fancoil.com for check
Packaging Details: Export packing
Delivery Time: 25-35days
Payment Terms: TT or LC
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description

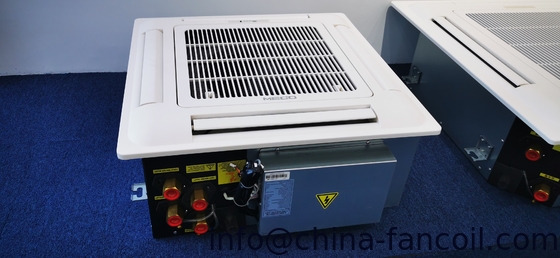

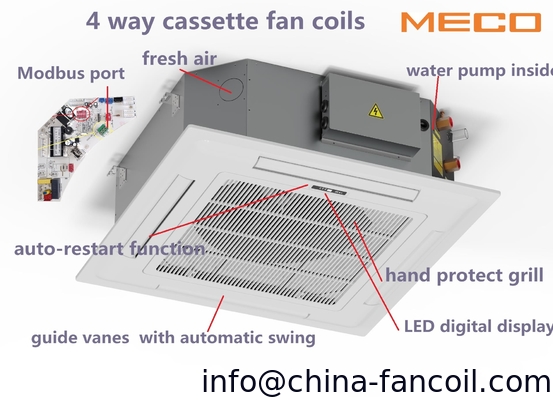

Chilled water 4 way cassette type fan coil units
water cassette air conditioner
air volume=200CFM-1600CFM
drained by water pump height=290mm
multi air flow
E-heater is optional
Duct connection is optional
Flesh air can be intake
Compact design, suitable for strict space installation.
Centrifugal fan with backward vanes, driven by a three-speed motor, statically and dynamically balanced, low noise.
Luxury shape and ABS panel
The easily removable filter is made of filtering honeycomb polypropylene fabric and supported by a plastic frame.
The drip tray is complete with a drain pump for draining the condensate water.
remote control
BMS system can be optional
Water drained pump can be select inside the unit (standard) or outside the unit(optional and easy to do maintain)
2 pipes and 2 rows type as standard.
♦ On-board thermostat and remote thermostat
♦ Electric heater
♦ Return air box
♦ Balancing valve
♦Auto swing



PERFORMANCE OF "K" STYLE CASSETTE TYPE FAN COIL(4-WAY,2TUBE)
model(2 tube system) MFP-34KM-(Q)KK1 MFP-51KM-(Q)KK1 MFP-68KM-(Q)KK1 MFP-80KM-(Q)KK1 MFP-85KM-(Q)KK2 MFP-102KM-(Q)KK2 MFP-136KM-(Q)KK2 MFP-170KM-(Q)KK3 MFP-204KM-(Q)KK3 MFP-238KM-(Q)KK3
model MFP-34KM-(Q)K1 MFP-51KM-(Q)K1 MFP-68KM-(Q)K1 MFP-80KM-(Q)K1 MFP-85KM-(Q)K2 MFP-102KM-(Q)K2 MFP-136KM-(Q)K2 MFP-170KM-(Q)K3 MFP-204KM-(Q)K3 MFP-238KM-(Q)K3
model of panel MB-S****K1 MB-S****K2 MB-S****K3
power supply 220V,50Hz,1Ph
air volume H m3/h 340 510 680 800 850 1020 1360 1700 2040 2380
M 290 400 540 650 700 850 1110 1400 1670 1950
L 200 290 400 500 550 680 860 1100 1300 1520
static pressure Pa 0 0 0 0 0 0 0 0 0 0
cooling capacity TH H W 1800 2700 3600 4200 4500 5400 7200 9000 10800 12600
BTU/h 6142 9212 12283 14330 15354 18425 24566 30708 36850 42991
SH W 1365 2100 2790 3200 3365 4085 5702 6780 8240 9320
BTU/h 4657 7165 9519 10918 11481 13938 19455 23133 28115 31800
TH M W 1555 2341 3080 3570 3811 4510 6187 7600 9221 10513
SH W 1092 1680 2186 2500 2604 3130 4300 5301 6490 7300
TH L W 1367 2059 2700 3201 3362 4040 5515 6733 8230 9390
SH W 883 1316 1743 2055 2117 2532 3485 4314 5314 5857
heating capacity H W 2700 4050 5400 6350 6750 8100 10800 13500 16200 18900
M W 2187 3210 4375 5108 5435 6550 8691 11000 13259 15300
L W 1896 2812 3751 4396 4673 5570 7413 9319 11312 12890
noise H 0Pa dB(A) 37 39 41 42 43 45 46 48 50 52
power input H 0Pa W 37 52 62 65 76 96 134 152 189 228
waterflow volume   m3/h 0.31 0.46 0.62 0.73 0.77 0.93 1.23 1.54 1.85 2.16
water pressure dropping kPa 11.8 12.9 22.1 24.3 18.2 26.8 28.4 33.2 35.9 38.4
dimension of water(in & out)connection pipe in ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4"
out ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4"
coil type high efficient copper pipe to wear Hydrophilic aluminum coil
dimension of water drain pipe mm ¢26 ¢26 ¢26 ¢26 ¢26 ¢26 ¢26 ¢26 ¢26 ¢26
net dimension unit L×W×H     mm 570*570*290   730*730*290 930*930*290
panel 650*650*45   850*850*45 1050*1050*45
net weight whole kg 24 24 26 27 33 34 34 40 41 42

For Fan coil units, our range include below catagories:
