Water chilled ceiling concealed duct type fan coil unit-400CFM

China Water chilled ceiling concealed duct type fan coil unit-400CFM supplier

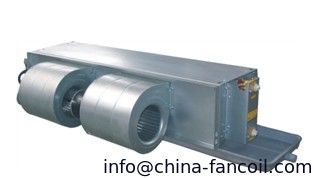

Large Image :  Water chilled ceiling concealed duct type fan coil unit-400CFM

Product Details:

Place of Origin: China
Brand Name: MECO, DEKON OR OEM BRAND
Certification: CE
Model Number: Pls contact sales02@china-fancoil.com directly

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: Pls mail to sales02@china-fancoil.com for check
Packaging Details: Export packing
Delivery Time: 25-35days
Payment Terms: TT or LC
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description
High Light:

duct type fan coil unit

,

concealed duct fan coil unit

,

fan coil unit

MECO Water chilled ceiling concealed duct type fan coil unit
air volume=200-1400CFM)
height=230mm

return box and filter optional



air conditioner fan coil

1. fan

Our fans are made by international professional fan manufacture with stable quality and reliable character with routine dynamic balance precise debug. Fan runs stably and quietly.

2. Water collection tray

Adopt high class panel,with plastic sprayed on the surface,therefore it is smooth and shiny rusty-proof as wellIntroducing one-off pressed forming technique,there is no welding line and point deal with heat preservation to assure the tray flat and compact avoiding quadratic leakage. Sloping design of bidirectional air guide outlet, aster the condensate is flow speed, no exist water, therefore, reducing the breeding ratio of bacteria. Outsize condensate tray design prevents coil and water pipe inlet and outlet joints from leak.

3. Heat exchanger

High quality purple copper, with high diathermanous efficiency, tenacity and rigidity characteristic to bear high hydraulic pressure especially, suits super high building use. Distance of fins is improved by computer emulation optimum design with experimental feedback, supply sufficient heat exchange area, smooth airflow and high efficient heat exchange.

4.Air return box is optional, which can ease installation, reducing construction cost.

5. Integrated models

Integrated model range airflow varies from 250~2000 m3/hincluding nine models.

6.High efficiency

Adopt high efficient heat exchanger and huge airflow centrifugal fan enhances unit diathermanous effect.

7.Flexible installation

Symmetrical design allows you to change the water flow direction according to you actual needs during installation





model(2 tube system) MFP-34WA MFP-51WA MFP-68WA MFP-85WA
air volume H m3/h 340 510 680 850
M 270 380 515 660
L 190 260 340 430
static pressure Pa 12(30) 12(30) 12(30) 12(30)
cooling capacity TH H W 1800 2700 3600 4500
BTU/h 6142 9212 12283 15354
SH W 1341 2012 2682 3353
BTU/h 4575 6865 9151 11440
TH M W 1458 2187 2916 3645
W 1152 1728 2304 2880
SH L W 1134 1701 2268 2835
W 930 1395 1860 2325
heating capacity H W 2700 4050 5400 6750
M W 2079 3119 4158 5198
L W 1634 2450 3267 4084
noise high speed 12Pa dB(A) 35 36 38 40
30Pa 39 41 43 45
power input 12Pa W 34 41 59 73
30Pa 41 54 65 82
waterflow volume   m3/h 0.31 0.46 0.62 0.77
water pressure dropping kPa 7 15 18 23
dimension of water(in & out)connection pipe   ZG3/4" ZG3/4" ZG3/4" ZG3/4"
  ZG3/4" ZG3/4" ZG3/4" ZG3/4"
dimension L×W×H mm 700*458*230 810*458*230 930*458*230 990*458*230
weight   kg 15 18 19 21





Contact Us for more info:
Mr.John Ding/Sales Manager
--------------------------------------------------
MECO,the Expert of FAN COIL UNIT
Taizhou MECO Refrigeration Equipment Co.,Ltd
Tel: +86 574 88152763
Skype: John Ding
Johnding574@gmail.com
sales02@china-fancoil.com


For Fan coil units, our range include below catagories:
hydronic hi-wall fan coil unit;                                      ceiling concealed fan coil unit;
convector fan coil unit;                                                  high static pressure fan coil unit;
