Water chilled Vertical & Horizontal Fan Coil 1000CFM

China Water chilled Vertical & Horizontal  Fan Coil  1000CFM supplier

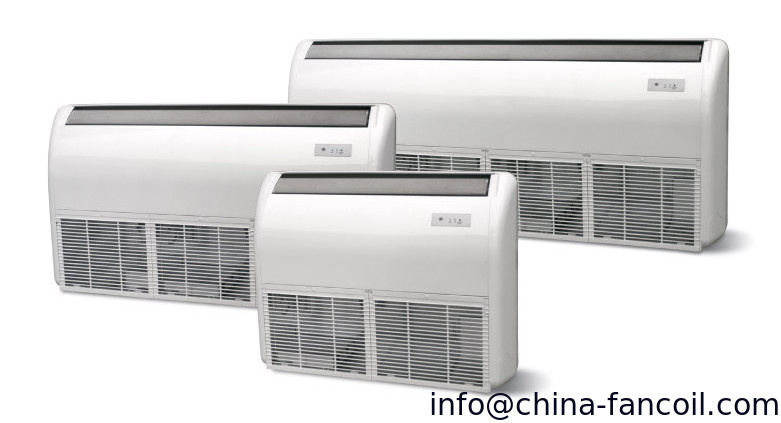

Large Image :  Water chilled Vertical & Horizontal Fan Coil 1000CFM

Product Details:

Place of Origin: China
Brand Name: MECO
Certification: CE,ISO9001
Model Number: http://www.china-fancoil.com

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs per model
Price: check out by mail to info@china-fancoil.com
Packaging Details: standard Export carton box
Delivery Time: 30-35days since deposit date
Payment Terms: TT or LC at sight
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description
High Light:

ceiling floor fan coil

,

ceiling floor fcu

,

floor ceiling fan coil

Water chilled Vertical & Horizontal type Fan coil unit 200CFM -1400CFM
ceiling floor type fan coil
max air volume=2380m3/h(1400CFM)
2 pipe and 4 pipe is optional
It can be installed on the floor or under the ceiling with the features of easy and flexible installation, wide range and long distance air supply,good performance,various control Functions and slim body,it is especially applicable to the hotel office,meeting room with low space room.
Luxury appearance design,not only meet the cooling(heating) demand,but also beautify indoor decoration.
Auto swing function three-dimensional wide angle airflow, makes indoor airflow more even and enhances comfort of airflow
Elaborate structure design makes installation and maintenance more convenient.
Remote controller is standard,and wire controller is optional.
Water valve inside is optional.
2 pipe and 4 pipe is optional.
CE & ROHS standard

model(2 tube system)MFP-51ZDMMFP-68ZDMMFP-85ZDMMFP-102ZDMMFP-136ZDMMFP-170ZDMMFP-204ZDMMFP-238ZDM
power supply220V,50Hz,60Hz
air volumeHm3/h51068085010201360170020402380
M3805156607651040128015501800
L26034043053071086010501280
static pressurePa00000000
cooling capacityTHHW2700360045005400720090001080012600
BTU/h921212283153541842524566307083685042991
SHW19902730317442615385674681099062
BTU/h67909315108301453918374230172766830920
THMW248530303752446764997926938910605
W15712015245030714278544766697262
SHLW20782504295038315660729586198989
W12121545184423973317446053005555
heating capacityHW405054006750810010800135001620018900
MW27923970494157407987105571310114011
LW17882801353339075464704887149778
noiseH0PadB(A)3941434546485051
power inputH0PaW52627696134152189228
waterflow volume m3/h0.460.620.770.931.231.541.852.16
water pressure droppingkPa11.813.6212325323338
dimension of water(in & out)connection pipeinZG3/4"ZG3/4"ZG3/4"ZG3/4"ZG3/4"ZG3/4"ZG3/4"ZG3/4"
outZG3/4"ZG3/4"ZG3/4"ZG3/4"ZG3/4"ZG3/4"ZG3/4"ZG3/4"
coiltypehigh efficient copper pipe to wear Hydrophilic aluminum coil
The maximum pressureMPa1.61.61.61.61.61.61.61.6
dimension of water drain pipemm¢26¢26¢26¢26¢26¢26¢26¢26
unit dimennsionL×W×Hmm905*673*2431288*673*2431672*673*243
unit weightkg2628303840424545
