2 pipe 4 pipe integrated thermostat-reach set temp fan can select stop or running-sensor external or internal selectable

China 2 pipe 4 pipe integrated thermostat-reach set temp fan can select stop or running-sensor external or internal selectable supplier
2 pipe 4 pipe integrated thermostat-reach set temp fan can select stop or running-sensor external or internal selectable supplier 2 pipe 4 pipe integrated thermostat-reach set temp fan can select stop or running-sensor external or internal selectable supplier 2 pipe 4 pipe integrated thermostat-reach set temp fan can select stop or running-sensor external or internal selectable supplier 2 pipe 4 pipe integrated thermostat-reach set temp fan can select stop or running-sensor external or internal selectable supplier 2 pipe 4 pipe integrated thermostat-reach set temp fan can select stop or running-sensor external or internal selectable supplier 2 pipe 4 pipe integrated thermostat-reach set temp fan can select stop or running-sensor external or internal selectable supplier 2 pipe 4 pipe integrated thermostat-reach set temp fan can select stop or running-sensor external or internal selectable supplier 2 pipe 4 pipe integrated thermostat-reach set temp fan can select stop or running-sensor external or internal selectable supplier 2 pipe 4 pipe integrated thermostat-reach set temp fan can select stop or running-sensor external or internal selectable supplier 2 pipe 4 pipe integrated thermostat-reach set temp fan can select stop or running-sensor external or internal selectable supplier 2 pipe 4 pipe integrated thermostat-reach set temp fan can select stop or running-sensor external or internal selectable supplier 2 pipe 4 pipe integrated thermostat-reach set temp fan can select stop or running-sensor external or internal selectable supplier 2 pipe 4 pipe integrated thermostat-reach set temp fan can select stop or running-sensor external or internal selectable supplier 2 pipe 4 pipe integrated thermostat-reach set temp fan can select stop or running-sensor external or internal selectable supplier 2 pipe 4 pipe integrated thermostat-reach set temp fan can select stop or running-sensor external or internal selectable supplier

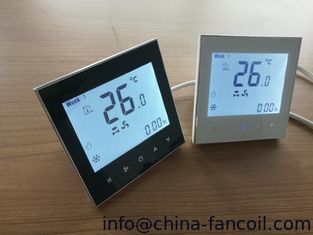

Large Image :  2 pipe 4 pipe integrated thermostat-reach set temp fan can select stop or running-sensor external or internal selectable

Product Details:

Place of Origin: China
Brand Name: MECO, DEKON OR OEM BRAND
Certification: CE
Model Number: http://www.china-fancoil.com

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs per model
Price: check out by mail to sales02@china-fancoil.com
Packaging Details: Standard export packing
Delivery Time: 30-35days since deposit date
Payment Terms: TT or LC at sight
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description
Mode: Cool, Heat And Vent. Temp: Room Temperature Setting
Protection: Low Temperature Protection Back Light: Backlight Function Available
Remote: Remote Control (Optional)

2 pipe 4 pipe switchable thermostat-reach set temp fan can select stop or running-sensor external or internal selectable/ TF-703




BRIEF INTRODUCTION
TF-703 series Touch Screen Room Thermostat.
Microprocessor based thermostat with LCD display.
Designed to control the fans and valves for chilled water fan coil unit applications.

2 pipe 4 pipe integrated thermostat-reach set temp fan can select stop or running-sensor external or internal selectable



MAIN FEATURES

1. Big LCD screen white backlight display;
2. Modbus ( BMS) RS485 RTU optional;
3. Smart phone App WIFI remote control optional;
4. Fan coil or AHU all suitable.
5. Hidden 86mm box and European 60mm round box both available.
6. Amazon Echo or Google Home accessable.(for WIFI app control model only)
7. Temperature for ℃ & ℉ is changeable, for more convinient temp control and setting.
8. Auto restart function available. Can memery the functions and settings before electricity off.
9. 5+2 six periods programmable maximize comfortable room temperature and energy saving.

10. This special designed model can switch 2 pipe or 4 pipe as you wish

11. Reach the set temperature, fan can select as stop or running in low speed.

12. The temperature sensor can be select as internal type or external type as you wish.






TECHNICAL DATA
Sensor:NTC
Accuracy:±0.5℃
Temp. Range:5 -35℃
Power Consumption:<1.5W
Timing error:<1%
Power Supply:110~240V, 50 ~60Hz
Current Load: Induction for fan: 3A; Resistive for fan: 5A
Shell Material:PC (Fireproof)
Dimension:86x86x13.3mm
Installation box:86*86mm or European 60mm
Ambient Temp.:0 ~ 45℃,5 ~ 95%RH(Non condensing)
Storage Temp:-5~ 55℃


Screen reference

2 pipe 4 pipe integrated thermostat-reach set temp fan can select stop or running-sensor external or internal selectable



Installation instructions

2 pipe 4 pipe integrated thermostat-reach set temp fan can select stop or running-sensor external or internal selectable

2 pipe 4 pipe integrated thermostat-reach set temp fan can select stop or running-sensor external or internal selectable2 pipe 4 pipe integrated thermostat-reach set temp fan can select stop or running-sensor external or internal selectable



2 pipe 4 pipe integrated thermostat-reach set temp fan can select stop or running-sensor external or internal selectable



Wiring of 2 pipe or 4 pipe FCU



2 pipe 4 pipe integrated thermostat-reach set temp fan can select stop or running-sensor external or internal selectableS








For Fan coil units, our range include below catagories:
