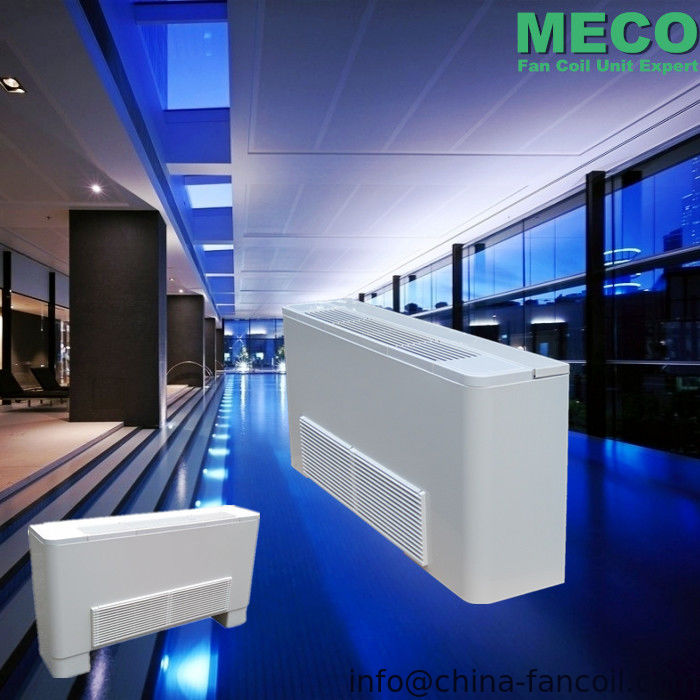

Water fan coil unit with cabinet 1400CFM

China Water fan coil unit with cabinet 1400CFM supplier
Water fan coil unit with cabinet 1400CFM supplier Water fan coil unit with cabinet 1400CFM supplier

Large Image :  Water fan coil unit with cabinet 1400CFM

Product Details:

Place of Origin: China
Brand Name: MECO
Certification: CE,ISO9001
Model Number: http://www.china-fancoil.com

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs per model
Price: check out by mail to info@china-fancoil.com
Packaging Details: standard Export carton box
Delivery Time: 30-35days since deposit date
Payment Terms: TT or LC at sight
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description

MECO Water chilled free stand Universal fan coil unit with cabinet also called universal fan coil or convector fan coil

Which is widely used in residential homes, offices etc.

Air flow from 200CFM-1400CFM;

Cooling capacity of 1.8kw to 12.6kw;

2 pipe system and 4 pipe systems optional;

2 way valve or 3 way valve optional;

left or right side piping is changable at site.



1. fan

Our fans are made by international professional fan manufacture with stable quality and reliable character with routine dynamic balance precise debug. Fan runs stably and quietly.

2. Water collection tray

Adopt high class panel,with plastic sprayed on the surface,therefore it is smooth and shiny rusty-proof as wellIntroducing one-off pressed forming technique,there is no welding line and point deal with heat preservation to assure the tray flat and compact avoiding quadratic leakage. Sloping design of bidirectional air guide outlet, aster the condensate is flow speed, no exist water, therefore, reducing the breeding ratio of bacteria. Outsize condensate tray design prevents coil and water pipe inlet and outlet joints from leak.

3. Heat exchanger

High quality purple copper, with high diathermanous efficiency, tenacity and rigidity characteristic to bear high hydraulic pressure especially, suits super high building use. Distance of fins is improved by computer emulation optimum design with experimental feedback, supply sufficient heat exchange area, smooth airflow and high efficient heat exchange.

4.Air return box is optional, which can ease installation, reducing construction cost.

5. Integrated models

Integrated model range airflow varies from 250~2000 m3/hincluding nine models.

6.High efficiency

Adopt high efficient heat exchanger and huge airflow centrifugal fan enhances unit diathermanous effect.

7.Flexible installation

Symmetrical design allows you to change the water flow direction according to you actual needs during installation

For Fan coil units, our range include below catagories:

Contact Us for more info:
Mr.John Ding/Sales Manager
--------------------------------------------------
MECO,the Expert of FAN COIL UNIT
Taizhou MECO Refrigeration Equipment Co.,Ltd
Tel: +86 574 88152763
Skype: John Ding





model(2 tube system) MFP-136LM4 MFP-170LM4 MFP-204LM4 MFP-238LM4
air volume H m3/h 1360 1700 2040 2380
M 1020 1280 1530 1790
L 680 850 1020 1190
static pressure Pa 12(30) 12(30) 12(30) 12(30)
cooling capacity TH H W 7200 9000 10800 12600
BTU/h 24566 30708 36850 42991
SH W 5471 6839 8207 9575
BTU/h 18667 23335 28002 32670
TH M W 5978 7472 8967 10461
W 4722 5903 7084 8265
SH L W 4649 5812 6974 8136
W 3813 4765 5718 6672
heating capacity H W 5180 6480 7780 9070
M W 4070 5090 6110 7130
L W 3270 4080 4900 5720
noise high speed 12Pa dB(A) 44 45 46 49
30Pa 49 50 52 54
power input 12Pa W 118 146 182 216
30Pa 132 168 206 247
waterflow volume cool m3/h 1.23 1.54 1.85 2.16
heat 0.45 0.56 0.67 0.78
water pressure dropping cool kPa 30 22 30 36
heat 12 8.8 12 14.4
dimension of water(in & out)connection pipe   ZG3/4" ZG3/4" ZG3/4" ZG3/4"
  ZG3/4" ZG3/4" ZG3/4" ZG3/4"
dimension L×W×H   mm 1570*235*640 1720*235*640 1880*235*640 2040*235*640
weight     kg 48 52 58 62
