Large air volume ducted fan coil units 120Pa static pressure

China Large air volume ducted fan coil units 120Pa static pressure supplier
Large air volume ducted fan coil units 120Pa static pressure supplier Large air volume ducted fan coil units 120Pa static pressure supplier Large air volume ducted fan coil units 120Pa static pressure supplier

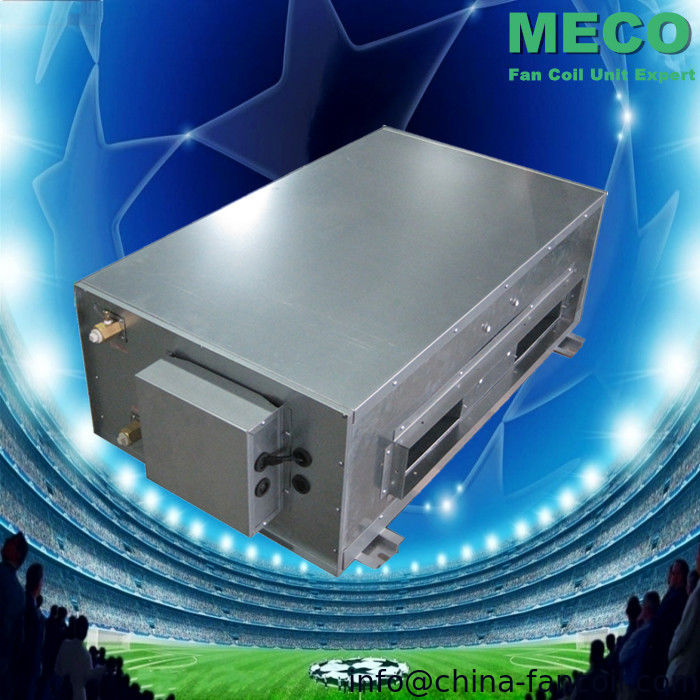

Large Image :  Large air volume ducted fan coil units 120Pa static pressure

Product Details:

Place of Origin: China
Brand Name: MECO
Certification: CE,ISO9001
Model Number: http://www.china-fancoil.com

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs per model
Price: check out by mail to info@china-fancoil.com
Packaging Details: standard Export carton box
Delivery Time: 30-35days since deposit date
Payment Terms: TT or LC at sight
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description

Water chilled high static pressure type fan coil units 1000CFM-2800CFM

Large air volume ducted fan coil units 120Pa static pressure

fan coil
static pressure =120Pa
air volume=1000CFM-2800CFM

fan coil

1.Three speed fan, meet different wind volume requirement.

2.Classical elegant design, with no ceiling also can combined with indoor fitment excellent.

3.High static pressure, realize further distance with below.

4.Fresh air is available, improve air quality.



model(4 tube system) MFP-340HA4 MFP-408HA4 MFP-476HA4
air volume H m3/h 3400 4080 4760
M 2560 3100 3600
L 1720 2100 2560
static pressure Pa 200 250 300
cooling capacity TH H W 18000 21600 25200
BTU/h 61416 73699 85982
SH W 13410 16092 18774
BTU/h 45755 54906 64057
TH M W 14580 17496 20412
W 11518 13822 16125
SH L W 11340 13608 15876
W 9299 11159 13018
heating capacity H W 13000 15600 18100
M W 10190 12220 14260
L W 8170 9800 11430
noise high speed 12Pa dB(A) 56 58 60
power input 12Pa W 900 1100 1150
waterflow volume cool m3/h 3.08 3.7 4.32
heat   1.13 1.35 1.57
water pressure dropping cool kPa 40 56 68
heat   14 20 23
dimension of water(in & out)connection pipe cool ZG7/4" ZG7/4" ZG7/4"
heat ZG7/4" ZG7/4" ZG7/4"
dimension of water drain pipe mm 1.6 1.6 1.6
dimension L×W×H mm 1440*770*538 1440*770*538 1440*770*538
weight     kg 91 102 110





Contact Us for more info:
Mr.John Ding/Sales Manager
--------------------------------------------------
MECO,the Expert of FAN COIL UNIT
Taizhou MECO Refrigeration Equipment Co.,Ltd
Tel: +86 574 88152763
Skype: John Ding
Johnding574@gmail.com
sales02@china-fancoil.com


For Fan coil units, our range include below catagories:
hydronic hi-wall fan coil unit;                                      ceiling concealed fan coil unit;
convector fan coil unit;                                                  high static pressure fan coil unit;
