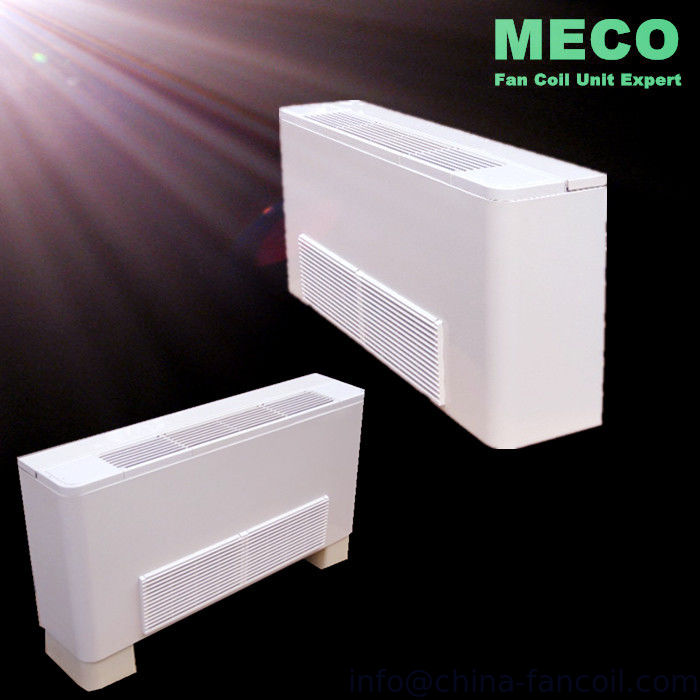

Water chilled free stand Universal fan coil unit 300CFM 2 tubes

China Water chilled free stand Universal fan coil unit 300CFM 2 tubes supplier
Water chilled free stand Universal fan coil unit 300CFM 2 tubes supplier Water chilled free stand Universal fan coil unit 300CFM 2 tubes supplier

Large Image :  Water chilled free stand Universal fan coil unit 300CFM 2 tubes

Product Details:

Place of Origin: China
Brand Name: MECO, DEKON OR OEM BRAND
Certification: CE
Model Number: Pls contact sales02@china-fancoil.com directly

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: Pls mail to sales02@china-fancoil.com for check
Packaging Details: Export packing
Delivery Time: 25-35days
Payment Terms: TT or LC
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description

MECO Water chilled free stand Universal fan coil unit 200CFM-1400CFM

universal fan coil

1. fan

Our fans are made by international professional fan manufacture with stable quality and reliable character with routine dynamic balance precise debug. Fan runs stably and quietly.

2. Water collection tray

Adopt high class panel,with plastic sprayed on the surface,therefore it is smooth and shiny rusty-proof as wellIntroducing one-off pressed forming technique,there is no welding line and point deal with heat preservation to assure the tray flat and compact avoiding quadratic leakage. Sloping design of bidirectional air guide outlet, aster the condensate is flow speed, no exist water, therefore, reducing the breeding ratio of bacteria. Outsize condensate tray design prevents coil and water pipe inlet and outlet joints from leak.

3. Heat exchanger

High quality purple copper, with high diathermanous efficiency, tenacity and rigidity characteristic to bear high hydraulic pressure especially, suits super high building use. Distance of fins is improved by computer emulation optimum design with experimental feedback, supply sufficient heat exchange area, smooth airflow and high efficient heat exchange.

4.Air return box is optional, which can ease installation, reducing construction cost.

5. Integrated models

Integrated model range airflow varies from 250~2000 m3/hincluding nine models.

6.High efficiency

Adopt high efficient heat exchanger and huge airflow centrifugal fan enhances unit diathermanous effect.

7.Flexible installation

Symmetrical design allows you to change the water flow direction according to you actual needs during installation







model(2 tube system) MFP-34LM MFP-51LM MFP-68LM MFP-85LM MFP-102LM
air volume H m3/h 340 510 680 850 1020
M 260 390 510 640 770
L 170 260 340 430 510
static pressure Pa 12(30) 12(30) 12(30) 12(30) 12(30)
cooling capacity TH H W 1800 2700 3600 4500 5400
BTU/h 6142 9212 12283 15354 18425
SH W 1368 2052 2736 3420 4103
BTU/h 4668 7001 9335 11669 13999
TH M W 1494 2242 2989 3736 4483
W 1181 1771 2362 2952 3541
SH L W 1162 1744 2325 2906 3487
W 953 1430 1907 2383 2860
heating capacity H W 2700 4050 5400 6750 8100
M W 2131 3197 4262 5328 6393
L W 1675 2511 3349 4186 5024
noise high speed 12Pa dB(A) 35 36 38 40 43
30Pa 39 41 43 45 48
power input 12Pa W 34 41 59 73 91
30Pa 41 54 65 82 98
waterflow volume   m3/h 0.31 0.46 0.62 0.77 0.93
water pressure dropping kPa 7 15 18 23 28
dimension of water(in & out)connection pipe   ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4"
  ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4"
dimension L×W×H   mm 790*235*640 940*235*640 1020*235*640 1140*235*640 1260*235*640
weight     kg 22 24 25 29 32


Contact Us for more info:
Mr.John Ding/Sales Manager
--------------------------------------------------
MECO,the Expert of FAN COIL UNIT
Taizhou MECO Refrigeration Equipment Co.,Ltd
Tel: +86 574 88152763
Skype: John Ding
Johnding574@gmail.com
sales02@china-fancoil.com


For Fan coil units, our range include below catagories:
hydronic hi-wall fan coil unit;                                      ceiling concealed fan coil unit;
convector fan coil unit;                                                  high static pressure fan coil unit;
