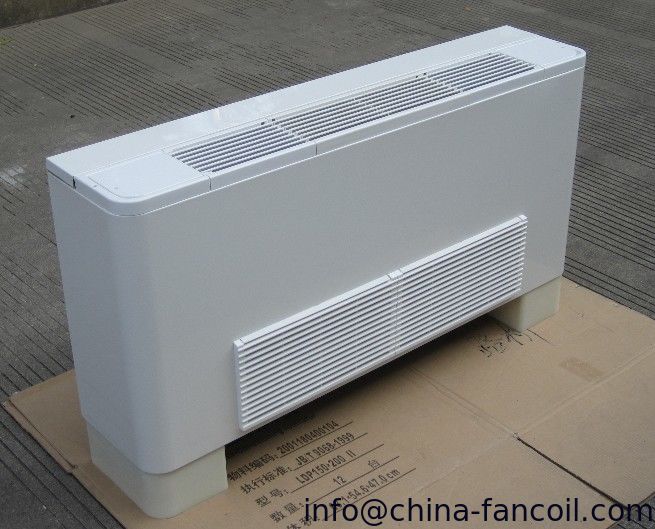

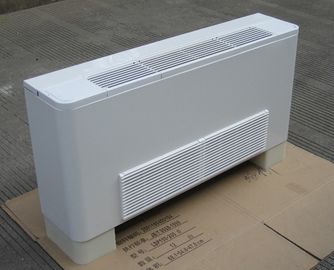

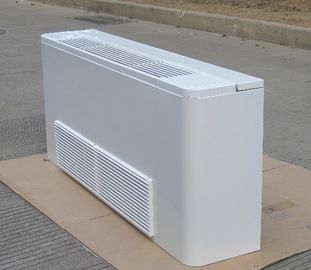

Water chilled free stand Universal fan coil unit 1200CFM 2 tubes

China Water chilled free stand Universal fan coil unit 1200CFM 2 tubes supplier
Water chilled free stand Universal fan coil unit 1200CFM 2 tubes supplier Water chilled free stand Universal fan coil unit 1200CFM 2 tubes supplier

Large Image :  Water chilled free stand Universal fan coil unit 1200CFM 2 tubes

Product Details:

Place of Origin: China
Brand Name: MECO, DEKON OR OEM BRAND
Certification: CE
Model Number: Pls contact sales02@china-fancoil.com directly

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: Pls mail to sales02@china-fancoil.com for check
Packaging Details: Export packing
Delivery Time: 25-35days
Payment Terms: TT or LC
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description

MECO Water chilled free stand Universal fan coil unit 200CFM-1400CFM

universal fan coil

1. fan

Our fans are made by international professional fan manufacture with stable quality and reliable character with routine dynamic balance precise debug. Fan runs stably and quietly.

2. Water collection tray

Adopt high class panel,with plastic sprayed on the surface,therefore it is smooth and shiny rusty-proof as wellIntroducing one-off pressed forming technique,there is no welding line and point deal with heat preservation to assure the tray flat and compact avoiding quadratic leakage. Sloping design of bidirectional air guide outlet, aster the condensate is flow speed, no exist water, therefore, reducing the breeding ratio of bacteria. Outsize condensate tray design prevents coil and water pipe inlet and outlet joints from leak.

3. Heat exchanger

High quality purple copper, with high diathermanous efficiency, tenacity and rigidity characteristic to bear high hydraulic pressure especially, suits super high building use. Distance of fins is improved by computer emulation optimum design with experimental feedback, supply sufficient heat exchange area, smooth airflow and high efficient heat exchange.

4.Air return box is optional, which can ease installation, reducing construction cost.

5. Integrated models

Integrated model range airflow varies from 250~2000 m3/hincluding nine models.

6.High efficiency

Adopt high efficient heat exchanger and huge airflow centrifugal fan enhances unit diathermanous effect.

7.Flexible installation

Symmetrical design allows you to change the water flow direction according to you actual needs during installation





model(2 tube system) MFP-136LM MFP-170LM MFP-204LM MFP-238LM
air volume H m3/h 1360 1700 2040 2380
M 1020 1280 1530 1790
L 680 850 1020 1190
static pressure Pa 12(30) 12(30) 12(30) 12(30)
cooling capacity TH H W 7200 9000 10800 12600
BTU/h 24566 30708 36850 42991
SH W 5471 6839 8207 9575
BTU/h 18667 23335 28002 32670
TH M W 5978 7472 8967 10461
W 4722 5903 7084 8265
SH L W 4649 5812 6974 8136
W 3813 4765 5718 6672
heating capacity H W 10800 13500 16200 18900
M W 8524 10655 12786 14917
L W 6697 8372 10046 11721
noise high speed 12Pa dB(A) 44 45 46 49
30Pa 49 50 52 54
power input 12Pa W 118 146 182 216
30Pa 132 168 206 247
waterflow volume   m3/h 1.23 1.54 1.85 2.16
water pressure dropping kPa 30 22 30 36
dimension of water(in & out)connection pipe   ZG3/4" ZG3/4" ZG3/4" ZG3/4"
  ZG3/4" ZG3/4" ZG3/4" ZG3/4"
dimension L×W×H   mm 1570*235*640 1720*235*640 1880*235*640 2040*235*640
weight     kg 46 50 56 60


Contact Us for more info:
Mr.John Ding/Sales Manager
--------------------------------------------------
MECO,the Expert of FAN COIL UNIT
Taizhou MECO Refrigeration Equipment Co.,Ltd
Tel: +86 574 88152763
Skype: John Ding
Johnding574@gmail.com
sales02@china-fancoil.com


For Fan coil units, our range include below catagories:
hydronic hi-wall fan coil unit;                                      ceiling concealed fan coil unit;
convector fan coil unit;                                                  high static pressure fan coil unit;
