LoraWAN gateway
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description

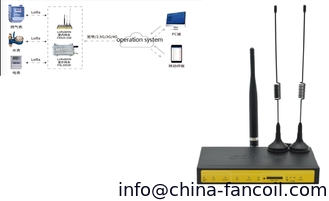

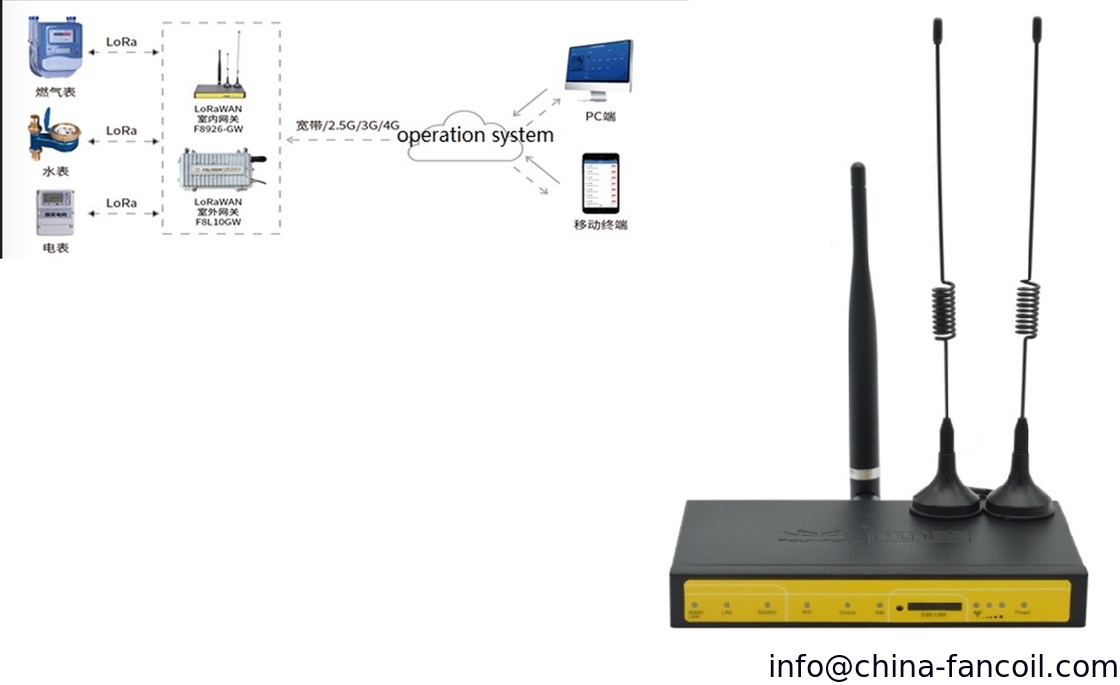

a wireless data transmission gateway based on standard LoRaWAN protocol, and it applicable to the terminal and NS which meets standard LoRaWan protocol. It can be connected to LoRaWAN terminals in various application nodes, collects useful information and sends the data to cloud server through wireless 3G/4G cellular network or wired ethernet port.
The product uses the high-performance industrial-grade 32-bits CPU and wireless module, with the embedded real-time operating system as the software support platform. It provides 1*LAN/WAN, 1*LAN, 1*Console, 1*WIFI, 1*USIM, 3*antenna interfaces and DC power supply. And it supports wireless configuration, management and online update.
The product has been widely used in the M2M industry of the IoT industrial chain, such as smart grid, intelligent transportation, smart home, finance, mobile POS gateways, supply chain automation, industrial automation, intelligent building, fire protection, public safety, environmental protection, meteorology, digital medical, telemetry, agriculture, forestry, water, coal, petrochemical and other related fields.
| Item | Description |
| F8926-GW-W LoRa+WCDMA WIFI Router | |
| band |
Support DC-HSPA+/HSPA+/HSDPA/HSUPA/UMTS 850/1900/2100MHz, 850/900/1900/2100MHz is optional Support GSM850/900/1800/1900MHz Support GPRS/EDGE CLASS 12 |
| bandwidth |
DC-HSPA+: RX 42Mpbs,TX5.76 Mbps HSPA+:RX 21Mpbs,TX 5.76 Mbps HSDPA:RX 7.2Mbps ,HSUPA:TX 5.76Mbps UMTS:384Kbps |
| Output Power |
<24dBm
|
| Sensitivity |
<-109dBm
|
|
F8926-GW-FL LoRa+FDD LTE WIFI Router
|
|
| band |
Support LTE FDD 2600/2100/1800/900/800MHz, 700/1700/2100MHz is optional
Support DC-HSPA+/HSPA+/HSDPA/HSUPA/UMTS 850/900/2100MHz, 800/850/1900/2100MHz is optional
Support EDGE/GPRS/GSM 850/900/1800/1900MHz
GPRS CLASS 10 EDGE CLASS 12 |
| bandwidth |
LTE FDD:RX 100Mbps,TX 50Mbps DC-HSPA+:RX 42Mpbs,TX 5.76 Mbps HSPA+:RX 21Mpbs,TX 5.76 Mbps HSDPA:RX 7.2Mbps ,HSUPA:TX 5.76Mbps UMTS:384Kbps |
| Output Power |
<23dBm
|
| Sensitivity |
<-97dBm
|
| F8926-GW-L LoRa+LTE WIFI Router | |
| band | Support :LTE FDD,LTE TDD,EVDO,WCDMA,TD-SCDMA,CDMA1X,GPRS/EDGE |
| bandwidth |
LTE FDD:RX 100Mbps,TX 50Mbps LTE TDD:RX 61Mbps,TX 18Mbps DC-HSPA+:RX 42Mpbs,TX 5.76 Mbps TD-HSPA+:RX 4.2Mbps,TX 2.2Mbps EVDO Rev. A:RX 3.1Mbps,TX 1.8Mbps |
| Output Power |
<23dBm |
| Sensitivity |
<-97dBm |
| Item | Description |
|
Network Structure
|
Simple star network topology and support repeater mode
|
| LoRaWAN protocol | ClassA,ClassC,LinkWAN |
|
Communication distance |
3.5km |
| Frequency | EU433,CN470-510,CN779-787,EU863-870,US902-928,AU915-928,AS923,KR920-923 |
| Max outputpower | 23±2dBm |
| Max Sensitivity | -142dbm @LoRa |
| communication bandwidth | 125kHz,250kHz,500kHz |
| communication channel | 8 Upstream Channel ,1 downstream Channel |
| communication rate | Link adaptation rate |
|
Working Mode
|
Support full-duplex and half-duplex
|
|
Server Report Method
|
Support 3G/4G or wired-ethernet |
