Chilled water 4 way ceiling concealed cassette type fan coil units-500CFM

Certification
Good quality Ceiling concealed FCU for sales
Good quality Ceiling concealed FCU for sales
Excellent product produced by Meco,all purchased items worked very good, tks.

—— Saliman

For your K series fan coil units, we liked it very much, the design is beautiful, only problem is prices for big sized models, anyway, i like it.

—— Roman-Silva

I'm Online Chat Now

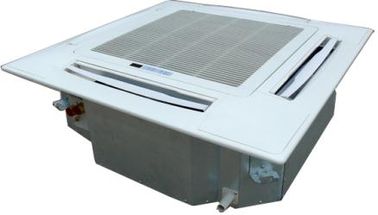

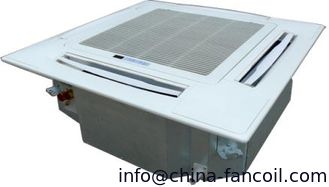

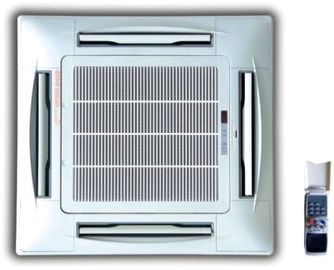

Chilled water 4 way ceiling concealed cassette type fan coil units-500CFM

China Chilled water 4 way ceiling concealed cassette type fan coil units-500CFM supplier
Chilled water 4 way ceiling concealed cassette type fan coil units-500CFM supplier Chilled water 4 way ceiling concealed cassette type fan coil units-500CFM supplier

Large Image :  Chilled water 4 way ceiling concealed cassette type fan coil units-500CFM

Product Details:

Place of Origin: China
Brand Name: MECO, DEKON OR OEM BRAND
Certification: CE
Model Number: Pls contact sales02@china-fancoil.com directly

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: Pls mail to sales02@china-fancoil.com for check
Packaging Details: Export packing
Delivery Time: 25-35days
Payment Terms: TT or LC
Supply Ability: 10000pcs per month
Detailed Product Description
High Light:

cassette fan coil unit

,

4 way cassette fan coil

,

cassette FCU

Chilled water 4 way cassette type fan coil units

water cassette air conditioner
air volume=200CFM-1200CFM)
drained by water pump height=290mm
multi air flow
remote control

model(2 tube system) MFP-34KM-(Q)EE1 MFP-51KM-(Q)EE1 MFP-68KM-(Q)EE1 MFP-85KM-(Q)EE2 MFP-102KM-(Q)EE2
air volume H m3/h 340 510 680 850 1020
M 280 380 515 660 765
L 180 260 340 430 530
static pressure Pa 0 0 0 0 0
cooling capacity TH H W 1800 2700 3600 4500 5400
BTU/h 6142 9212 12283 15354 18425
SH W 1311 1971 2700 3184 4196
BTU/h 4473 6725 9212 10864 14317
TH M W 1500 2460 3000 3715 4423
SH W 994 1555 1995 2426 3041
TH L W 1391 2057 2479 2921 3793
SH W 823 1200 1530 1826 2373
heating capacity H W 2700 4050 5400 6750 8100
M W 1949 2770 3938 4902 5694
L W 1297 1774 2779 3505 3876
noise H 0Pa dB(A) 37 39 41 43 45
power input H 0Pa W 37 52 62 76 96
waterflow volume   m3/h 0.31 0.46 0.62 0.77 0.93
water pressure dropping kPa 11.8 11.8 22.4 27 29.6
dimension of pipe in ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4"
out ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4"
dimension of water drain pipe mm 26 26 26 26 26
net dimension unit L×W×H mm 590*590*270 752*752*293
panel 650*650*45 850*850*45
net weight unit kg 19 19 20 23 23
panel 2.2

4.5
