Chilled water 4 way ceiling concealed cassette type fan coil units-600CFM

China Chilled water 4 way ceiling concealed cassette type fan coil units-600CFM supplier
Chilled water 4 way ceiling concealed cassette type fan coil units-600CFM supplier Chilled water 4 way ceiling concealed cassette type fan coil units-600CFM supplier

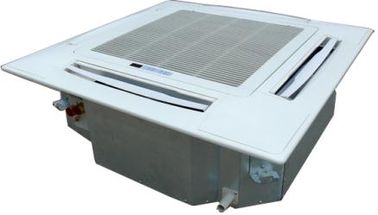

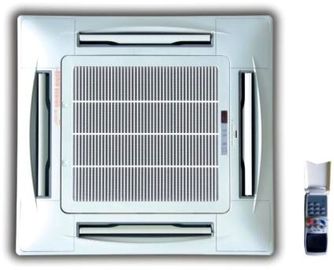

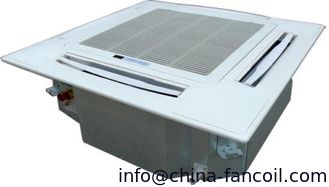

Large Image :  Chilled water 4 way ceiling concealed cassette type fan coil units-600CFM

Product Details:

Place of Origin: China
Brand Name: MECO, DEKON OR OEM BRAND
Certification: CE
Model Number: Pls contact sales02@china-fancoil.com directly

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: Pls mail to sales02@china-fancoil.com for check
Packaging Details: Export packing
Delivery Time: 25-35days
Payment Terms: TT or LC
Supply Ability: 10000pcs per month
Detailed Product Description
High Light:

cassette fan coil unit

,

4 way cassette fan coil

,

cassette FCU

Chilled water 4 way cassette type fan coil units

water cassette air conditioner
air volume=200CFM-1200CFM)
drained by water pump height=290mm
multi air flow
remote control

model(2 tube system) MFP-34KM-(Q)EE1 MFP-51KM-(Q)EE1 MFP-68KM-(Q)EE1 MFP-85KM-(Q)EE2 MFP-102KM-(Q)EE2
air volume H m3/h 340 510 680 850 1020
M 280 380 515 660 765
L 180 260 340 430 530
static pressure Pa 0 0 0 0 0
cooling capacity TH H W 1800 2700 3600 4500 5400
BTU/h 6142 9212 12283 15354 18425
SH W 1311 1971 2700 3184 4196
BTU/h 4473 6725 9212 10864 14317
TH M W 1500 2460 3000 3715 4423
SH W 994 1555 1995 2426 3041
TH L W 1391 2057 2479 2921 3793
SH W 823 1200 1530 1826 2373
heating capacity H W 2700 4050 5400 6750 8100
M W 1949 2770 3938 4902 5694
L W 1297 1774 2779 3505 3876
noise H 0Pa dB(A) 37 39 41 43 45
power input H 0Pa W 37 52 62 76 96
waterflow volume   m3/h 0.31 0.46 0.62 0.77 0.93
water pressure dropping kPa 11.8 11.8 22.4 27 29.6
dimension of pipe in ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4"
out ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4"
dimension of water drain pipe mm 26 26 26 26 26
net dimension unit L×W×H mm 590*590*270 752*752*293
panel 650*650*45 850*850*45
net weight unit kg 19 19 20 23 23
panel 2.2

4.5
