Chilled water 4 way ceiling concealed cassette type fan coil units-800CFM

China Chilled water 4 way ceiling concealed cassette type fan coil units-800CFM supplier
Chilled water 4 way ceiling concealed cassette type fan coil units-800CFM supplier Chilled water 4 way ceiling concealed cassette type fan coil units-800CFM supplier

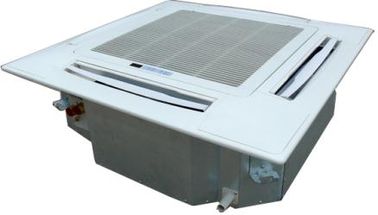

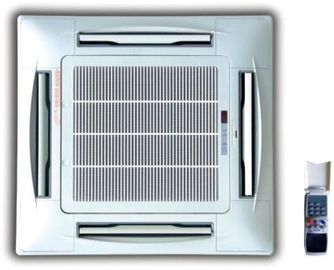

Large Image :  Chilled water 4 way ceiling concealed cassette type fan coil units-800CFM

Product Details:

Place of Origin: China
Brand Name: MECO, DEKON OR OEM BRAND
Certification: CE
Model Number: Pls contact sales02@china-fancoil.com directly

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: Pls mail to sales02@china-fancoil.com for check
Packaging Details: Export packing
Delivery Time: 25-35days
Payment Terms: TT or LC
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description
High Light:

cassette fan coil unit

,

4 way cassette fan coil

,

cassette FCU

Chilled water 4 way cassette type fan coil units

water cassette air conditioner
air volume=200CFM-1200CFM)
drained by water pump height=290mm
multi air flow
remote control



model(2 tube system)

MFP-136KM-

(Q)EE3

 MFP-170KM-(Q)EE3 MFP-204KM-(Q)EE3 MFP-238KM-(Q)EE3
air volume H m3/h 1360 1700 2040 2380
M 1040 1280 1550 1800
L 710 860 1050 1280
static pressure Pa 0 0 0 0
cooling capacity TH H W 7200 9000 10800 12600
BTU/h 24566 30708 36850 42991
SH W 5362 6707 8072 9070
BTU/h 18295 22884 27542 30947
TH M W 6435 7848 9296 10500
SH W 4236 5393 6603 7190
TH L W 5604 7223 8534 8900
SH W 3284 4416 5248 5500
heating capacity H W 10800 13500 16200 18900
M W 7924 10473 12997 13900
L W 5421 6992 8645 9700
noise H 0Pa dB(A) 46 48 50 51
power input H 0Pa W 134 152 189 228
waterflow volume   m3/h 1.23 1.54 1.85 2.16
water pressure dropping kPa 29.6 35.4 35.4 40
dimension of pipe in ZG3/4" ZG3/4" ZG3/4" ZG3/4"
out ZG3/4" ZG3/4" ZG3/4" ZG3/4"
dimension of water drain pipe mm ￠26 ￠26 ￠26 ￠26
net dimension unit L×W×H mm 822*822*263 822*822*293
panel 950*950*45
net weight unit kg 25 28 28 29
panel 6
