ceiling suspended cassette fan coil units 2 pipe system-800CFM

China ceiling suspended cassette fan coil units 2 pipe system-800CFM supplier
ceiling suspended cassette fan coil units 2 pipe system-800CFM supplier ceiling suspended cassette fan coil units 2 pipe system-800CFM supplier ceiling suspended cassette fan coil units 2 pipe system-800CFM supplier ceiling suspended cassette fan coil units 2 pipe system-800CFM supplier ceiling suspended cassette fan coil units 2 pipe system-800CFM supplier

Large Image :  ceiling suspended cassette fan coil units 2 pipe system-800CFM

Product Details:

Place of Origin: China
Brand Name: MECO, DEKON OR OEM BRAND
Certification: CE
Model Number: Pls contact sales02@china-fancoil.com directly

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: Pls mail to sales02@china-fancoil.com for check
Packaging Details: Export packing
Delivery Time: 25-35days
Payment Terms: TT or LC
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description

Chilled water 4 way cassette type fan coil units, indoor unit of chiller, water chilled air conditioner
water cassette air conditioner, remote controller and wired controller.

drain pump, 2 tube and 4 tube

0-10V BLDC motor
air volume=200CFM-1600CFM
drained by water pump height=290mm
multi air flow

MECO Chilled water Cassette fan coil units are designed for the climate control of rooms. They are installed above suspended ceilings as flush-mounted units. There are 4 models available – one way cassette fan coil units, four way cassette fan coil units K series, four way cassette fan coil units E series, and eight way cassette fan coil units G series – assure you a pleasant, comfortable room climate in summer and winter. Installation in the open space between the suspended ceiling and the floor slab above minimizes space requirements and saves your costs. - See more at: http://www.china-fancoil.com/products.html

800CFM Chilled water 4 way cassette type fan coil units features as below:

air volume=800CFM

Cooling capacity 7.2kw/2TR

drained by water pump


multi air flow


E-heater is optional


Compact design, suitable for strict space installation.


Centrifugal fan with backward vanes, driven by a three-speed motor, statically and dynamically balanced, low noise.


Luxury shape and ABS panel


The easily removable filter is made of filtering honeycomb polypropylene fabric and supported by a plastic frame.
The drip tray is complete with a drain pump for draining the condensate water.
remote control
BMS system can be optional
Water drained pump can be select inside the unit (standard) or outside the unit(optional and easy to do maintain)
2 pipes and 2 rows type as standard.
♦ On-board thermostat and remote thermostat
♦ Electric heater
♦ Return air box
♦ Balancing valve
♦Auto swing





PERFORMANCE OF "M" STYLE CASSETTE TYPE FAN COIL(4-WAY,2TUBE)---DRAINED BY WATER PUMP
model(2 tube system) MFP-34KM-Q1MM1 MFP-51KM-Q1MM1 MFP-68KM-Q1MM1 MFP-80KM-Q1MM1 MFP-85KM-Q1MM2 MFP-102KM-Q1MM2 MFP-130KM-Q1MM2 MFP-136KM-Q1MM3 MFP-153KM-Q1MM3 MFP-170KM-Q1MM3 MFP-204KM-Q1MM3 MFP-238KM-Q1MM3 MFP-255KM-Q1MM4 MFP-272KM-(Q)MM4
power supply 220V,50Hz,1Ph
air volume H m3/h 380 550 680 780 880 1050 1300 1380 1550 1750 2050 2200 2550 2720
M 300 440 540 620 700 840 1040 1100 1240 1400 1640 1760 1950 2040
L 230 330 410 470 530 630 780 830 930 1050 1230 1320 1450 1360
static pressure Pa 0 0 0 0 0 0 0     0 0 0 0 0
cooling capacity TH H W 2000 3000 3800 4200 4900 5800 7000 7500 8100 9800 11000 12000 13400 15000
BTU/h 6824 10236 12966 14330 16719 19790 23884 25590 27637 33438 37532 40944 44356 51180
SH W 1400 2200 2850 3300 3500 4250 5250 5500 5880 7150 8250 9100 9800 11175
BTU/h 4777 7506 9724 11260 11942 14501 17913 18766 20060 24396 28149 31049 33438 38129
TH M W 1700 2550 3250 3550 4150 4950 5950 6400 6650 8350 9350 10200 10800 12450
SH W 1150 1800 2350 2650 2850 3500 4350 4550 4700 5950 6850 7650 36850 9560
TH L W 1400 2050 2600 2900 3400 4000 4850 5200 5420 6750 7600 8300 8900 10300
SH W 950 1400 1850 2100 2300 2800 3450 3600 3850 4700 5450 6000 6500 8400
heating capacity H W 3100 4700 5900 6500 7600 9000 10900 11600 12200 15200 17100 18600 21400 24000
M W 2650 4000 5000 5550 6450 7650 9250 9850 10300 12900 14550 15800 16700 19900
L W 2100 3150 3950 4350 5100 6050 7300 7750 8140 10200 11450 12450 12500 15200
noise H 0Pa dB(A) 39 42 44 46 42 46 48 46 48 47 50 51 52 53
power input H 0Pa W 40 50 58 60 70 95 125 130 145 160 190 210 220 230
waterflow volume m3/h 0.34 0.51 0.65 0.72 0.83 0.99 1.19 1.28 1.38 1.67 1.87 2.04 2.21 2.55
water pressure dropping kPa 11 13 22 25 18 25 30 23 23 28 33 42 43 45
dimension of water(in & out)connection pipe in ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4"
out ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4"

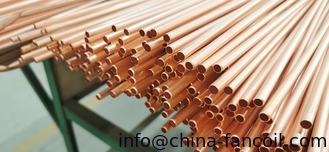

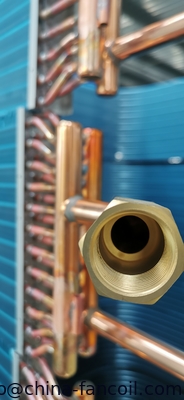

coil type high efficient copper pipe to wear Hydrophilic aluminum coil
dimension of water drain pipe mm ¢26 ¢26 ¢26 ¢26 ¢26 ¢26 ¢26     ¢26 ¢26 ¢26 ¢26 ¢26
net dimension unit L×W×H mm 592*592*242   750*750*242 840*840*242 840*840*292 946*946*292
panel 650*650*40   850*850*40 950*950*40 950*950*40 1050*1050*40
net weight unit kg 17 18 18 18.5 22 23 23 25 26 27 27 30 32
  panel   2.2 4.2 5 6
