decrotive water fan coil with Modbus- 1400CFM

China decrotive water fan coil with Modbus- 1400CFM supplier
decrotive water fan coil with Modbus- 1400CFM supplier decrotive water fan coil with Modbus- 1400CFM supplier decrotive water fan coil with Modbus- 1400CFM supplier decrotive water fan coil with Modbus- 1400CFM supplier decrotive water fan coil with Modbus- 1400CFM supplier

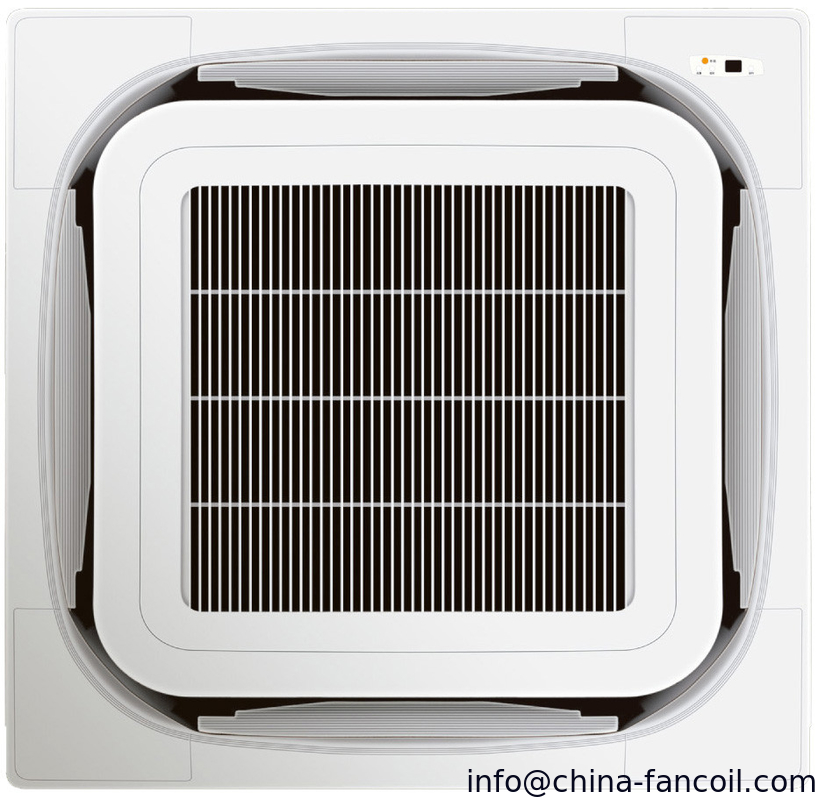

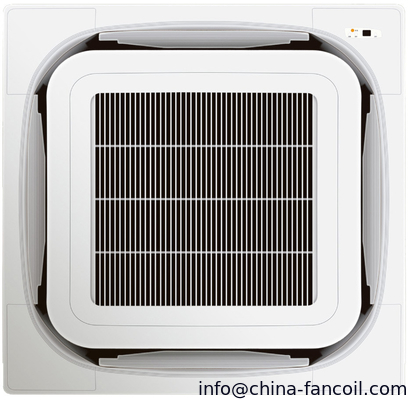

Large Image :  decrotive water fan coil with Modbus- 1400CFM

Product Details:

Place of Origin: China
Brand Name: MECO, DEKON OR OEM BRAND
Certification: CE
Model Number: Pls contact sales02@china-fancoil.com directly

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: Pls mail to sales02@china-fancoil.com for check
Packaging Details: Export packing
Delivery Time: 25-35days
Payment Terms: TT or LC
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description

Energy Saving Cassette Fan Coil Units 1400CFM



Specifications

  • Excellent quality and competitive price
  • easy operation and easy installation
  • energy saving Cassette Fan Coil Units
  • Different styles and model for choice



Features

1. Condensate drain pump integrated;

2. Remote controller as standard and thermostat is optional;

3. BMS function is optional

4. 2 pipe system cassette fan coil unit G model

 5. Cooling Capacity 1.5TR(5.4Kw)

      Full range cooling capacity from 0.5TR to 4TR (1.8kw to 14.4kw)

6. Air flow rate 1400CFM(2380m3/h)

      Full range air flow rate from 200CFM to 1600CFM.

7. Panel size 950*950*45mm Main body size: 840*840*285mm

8. Electric heater fitted as an option;

9. 2 way valve or 3 way valve optional (fitted or supplied loose)



Advantages

Brushless Panasonic brand DC motor is optional, with higher efficiency and energy saving.

Special designed 8 way air flows, for model of 600CFM, 800CFM, 1000CFM, 12000CFM 1400CFM and 1600CFM.

Our G model cassette fan coil unit having Wide angel airflow, 60 degrees from top to bottom, which allows multi selection for air flow directions.



Benefit

MECO Cassette fan coil units are designed for the climate control of rooms. They are installed above suspended ceilings as flush-mounted units.

There are 4 models available – one way cassette fan coil units, four way cassette fan coil units K series, four way cassette fan coil units E series, and eight way cassette fan coil units G series – assure you a pleasant, comfortable room climate in summer and winter. Installation in the open space between the suspended ceiling and the floor slab above minimizes space requirements and saves your costs.



Application

Our Chilled water cassette fan coil units, widely used in theater, restaurant, office buildings, ect.



Instructions

Standard export packing cartons; please read the instruction manual before install our fan coil units.

H H MFP-34KM4-(Q)AG1 MFP-51KM4-(Q)AG1 MFP-68KM4-(Q)AG1 MFP-85KM4-(Q)AG1 MFP-102KM4-(Q)GG3 MFP-136KM4-(Q)GG3 MFP-170KM4-(Q)GG3 MFP-204KM4-(Q)GG3 MFP-238KM4-(Q)GG4
MODEL OF UNIT MFP-34KM4-(Q)A1 MFP-51KM4-(Q)A1 MFP-68KM4-(Q)A1 MFP-85KM4-(Q)A1 MFP-102KM4-(Q)G3 MFP-136KM4-(Q)G3 MFP-170KM4-(Q)G3 MFP-204KM4-(Q)G3 MFP-238KM4-(Q)G4
MODEL OF PANEL MB-S****G1 MB-S****G3 MB-S****G4
POWER SUPPLY 220V,50Hz,1Ph
air volume H m3/h 340 510 680 850 1020 1360 1700 2040 2380
M 280 380 515 660 765 1040 1280 1550 1800
L 180 260 340 430 530 710 860 1050 1280
static pressure Pa 0 0 0 0 0 0 0 0 0
cooling capacity TH H W 1350 2030 2700 3380 4050 5400 6750 8100 9450
BTU/h 4606 6926 9212 11533 13819 18425 23031 27637 32243
SH W 1010 1520 2080 2450 3230 4130 5160 6220 6989
BTU/h 3446 5186 7097 8359 11021 14092 17606 21223 23846
TH M W 1130 1850 2250 2790 3320 4830 5890 6970 7873
W 770 1200 1540 1870 2340 3260 4150 5080 5532
SH L W 1040 1540 1860 2190 2840 4200 5420 6400 6674
W 630 920 1180 1410 1830 2530 3400 4040 4234
heating capacity H W 1080 1620 2160 2700 3240 4320 5400 6480 7560
M W 780 1108 1575 1961 2278 3170 4189 5199 5560
L W 519 710 1112 1402 1550 2168 2797 3458 3880
noise H dB(A) 37 39 41 43 45 46 48 50 51
power input H W 37 52 62 76 96 134 152 189 228
waterflow volume High speed cool m3/h 0.23 0.35 0.46 0.58 0.69 0.93 1.16 1.39 1.6
heat 0.09 0.14 0.19 0.23 0.28 0.37 0.46 0.56 0.7
water pressure dropping cool kPa 8.26 8.26 15.68 18.9 20.72 20.72 24.78 24.78 40
heat 3.54 3.54 6.72 8.1 8.88 8.88 10.62 10.62 16
dimension of water(in & out)connection pipe in ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4"
out ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4"
coil type
The maximum pressure MPa 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6
dimension of water drain pipe mm ¢26 ¢26 ¢26 ¢26 ¢26 ¢26 ¢26 ¢26 ¢26
unit dimennsion UNIT L×W×H mm 570*570*255 840*840*240 840*840*285 960*960*290
PANEL 650*650*30 950*950*45 1140*1140*45
WEIGHT UNIT kg 19 19 20 21 24 25 28 28 36
PANEL 2 6 8
