Cassette Fan coil unit with 1600CFM

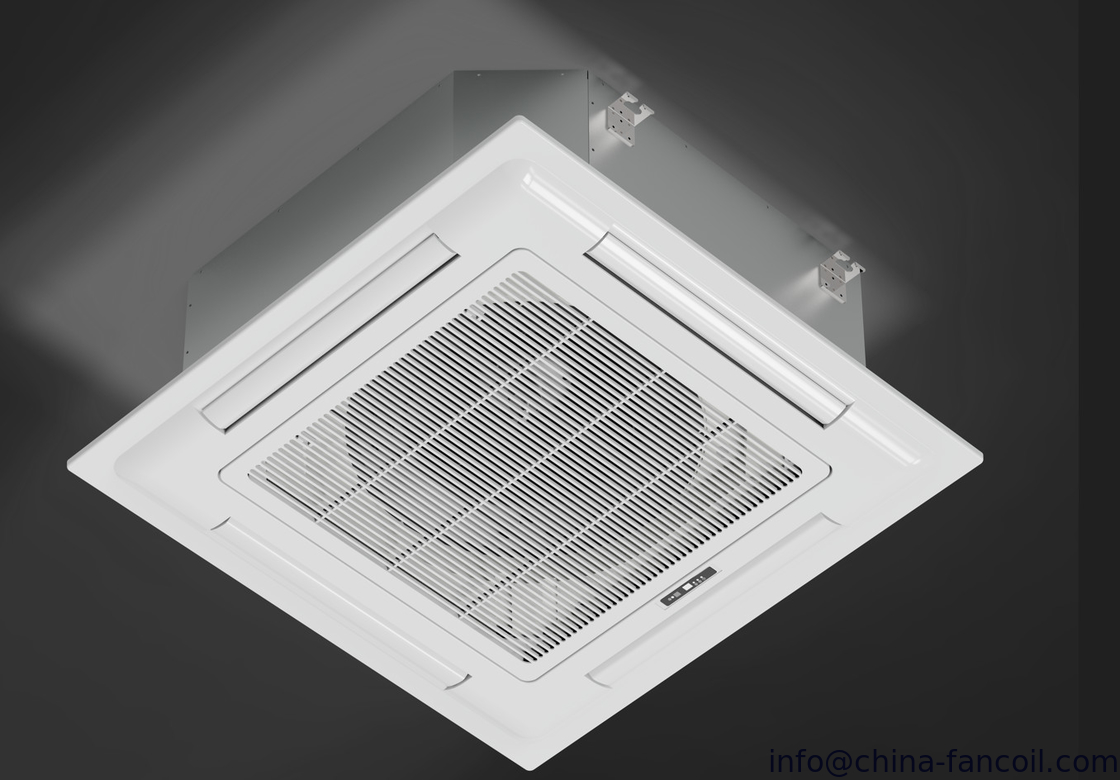

Large Image : Cassette Fan coil unit with 1600CFM

Product Details:

Place of Origin:	China
Brand Name:	MECO, DEKON OR OEM BRAND
Certification:	CE
Model Number:	Pls contact sales02@china-fancoil.com directly

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Price:	Pls mail to sales02@china-fancoil.com for check
Packaging Details:	Export packing
Delivery Time:	25-35days
Payment Terms:	TT or LC
Supply Ability:	10000pcs per month

Contact Now

Detailed Product Description

4-Way Ceiling Mounted Cassette Indoor Unit with DC motor

Water chilled ceiling concealed Cassette Fan coil unit 200-1400CFM-K type

1:Cassette type fan coil unit,4-way
2:E-heater is optional
3:CE certify and Rohs standrad
4:air volume from 200 to 1400cfm

1:4-way cassette type fan coil unit

air volume : 200cfm,300cfm,400cfm,500cfm,600cfm,800cfm,1000cfm,1200cfm,1400cfm

2:4-pipe system is optional

3:E-heater is optional

4:Flesh air can be intake

5: Duct connection is optional

6: Auto swing

7: BMS system can be optional

8: Remote controller is standard and wire controller is optional

9: Water drained pump can be select inside the unit (standard) or outside the unit(optional and easy to do maintain)

10:Easy to do maintain

11:Water valve can be optional whic installed already

12:Float switch inside to do alarm

PERFORMANCE OF "M" STYLE CASSETTE TYPE FAN COIL(4-WAY,2TUBE)---DRAINED BY WATER PUMP
model(2 tube system)				MFP-34KM-Q1MM1	MFP-51KM-Q1MM1	MFP-68KM-Q1MM1	MFP-80KM-Q1MM1	MFP-85KM-Q1MM2	MFP-102KM-Q1MM2	MFP-130KM-Q1MM2	MFP-136KM-Q1MM3	MFP-153KM-Q1MM3	MFP-170KM-Q1MM3	MFP-204KM-Q1MM3	MFP-238KM-Q1MM3	MFP-255KM-Q1MM4	MFP-272KM-(Q)MM4
power supply				220V,50Hz,1Ph
air volume		H	m³/h	380	550	680	780	880	1050	1300	1380	1550	1750	2050	2200	2550	2720
		M		300	440	540	620	700	840	1040	1100	1240	1400	1640	1760	1950	2040
		L		230	330	410	470	530	630	780	830	930	1050	1230	1320	1450	1360
static pressure			Pa	0	0	0	0	0	0	0			0	0	0	0	0
cooling capacity	TH	H	W	2000	3000	3800	4200	4900	5800	7000	7500	8100	9800	11000	12000	13400	15000
	TH		BTU/h	6824	10236	12966	14330	16719	19790	23884	25590	27637	33438	37532	40944	44356	51180
	SH		W	1400	2200	2850	3300	3500	4250	5250	5500	5880	7150	8250	9100	9800	11175
	SH		BTU/h	4777	7506	9724	11260	11942	14501	17913	18766	20060	24396	28149	31049	33438	38129
	TH	M	W	1700	2550	3250	3550	4150	4950	5950	6400	6650	8350	9350	10200	10800	12450
	SH	M	W	1150	1800	2350	2650	2850	3500	4350	4550	4700	5950	6850	7650	36850	9560
	TH	L	W	1400	2050	2600	2900	3400	4000	4850	5200	5420	6750	7600	8300	8900	10300
	SH	L	W	950	1400	1850	2100	2300	2800	3450	3600	3850	4700	5450	6000	6500	8400
heating capacity	H		W	3100	4700	5900	6500	7600	9000	10900	11600	12200	15200	17100	18600	21400	24000
	M		W	2650	4000	5000	5550	6450	7650	9250	9850	10300	12900	14550	15800	16700	19900
	L		W	2100	3150	3950	4350	5100	6050	7300	7750	8140	10200	11450	12450	12500	15200
noise	H	0Pa	dB(A)	39	42	44	46	42	46	48	46	48	47	50	51	52	53
power input	H	0Pa	W	40	50	58	60	70	95	125	130	145	160	190	210	220	230
waterflow volume			m³/h	0.34	0.51	0.65	0.72	0.83	0.99	1.19	1.28	1.38	1.67	1.87	2.04	2.21	2.55
water pressure dropping			kPa	11	13	22	25	18	25	30	23	23	28	33	42	43	45
dimension of water(in & out)connection pipe			in	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"
dimension of water(in & out)connection pipe			out	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"

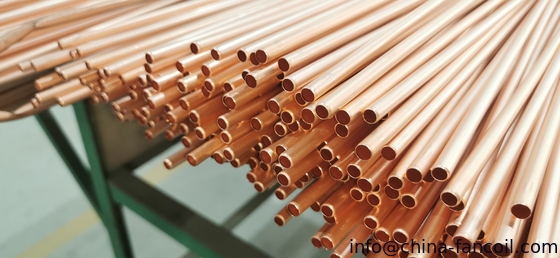

coil			type	high efficient copper pipe to wear Hydrophilic aluminum coil
dimension of water drain pipe			mm	￠26	￠26	￠26	￠26	￠26	￠26	￠26			￠26	￠26	￠26	￠26	￠26
net dimension	unit		L×W×H mm	592592242				750750242			840840242		840840292			946946292
net dimension	panel		L×W×H mm	65065040				85085040			95095040		95095040			1050105040
net weight	unit		kg	17	18	18	18.5	22	23	23	25		26	27	27	30	32
	panel			2.2				4.2			5					6
