exposed Fan coil

China exposed Fan coil supplier

Large Image :  exposed Fan coil

Product Details:

Place of Origin: China
Brand Name: MECO
Certification: CE
Model Number: Pls contact sales02@china-fancoil.com directly

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: Pls mail to sales02@china-fancoil.com for check
Packaging Details: Export packing
Delivery Time: 25-35days
Payment Terms: TT or LC
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description

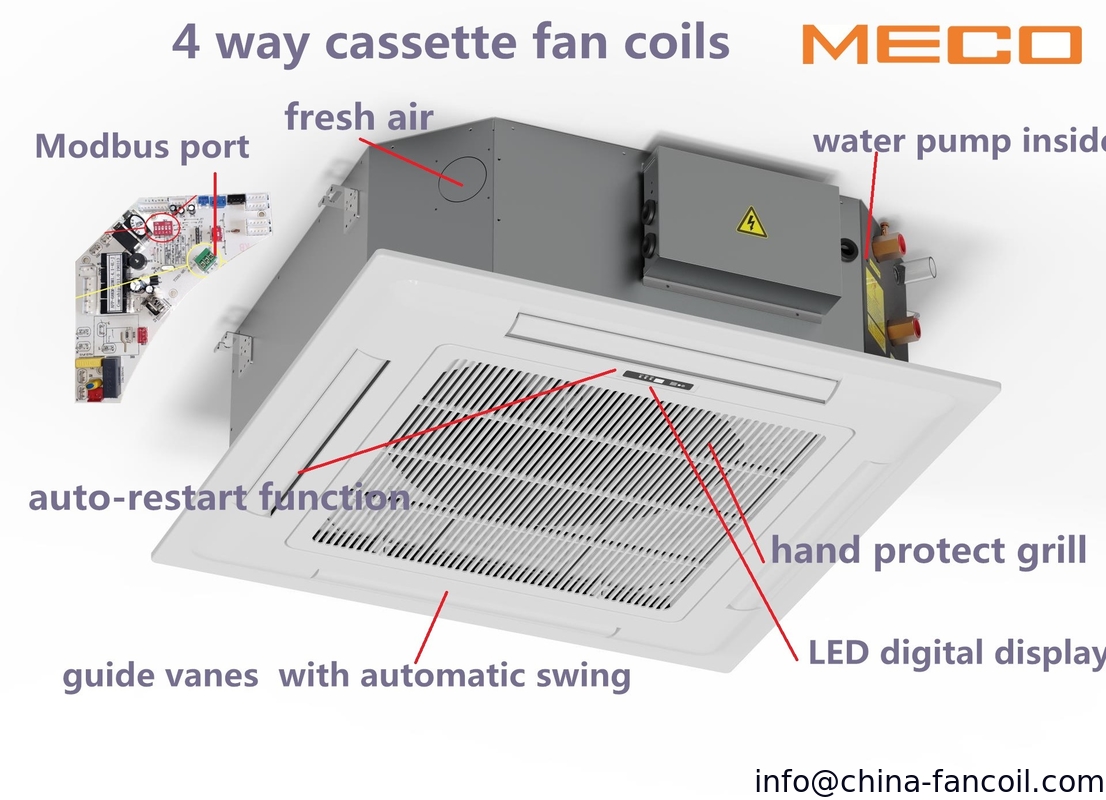

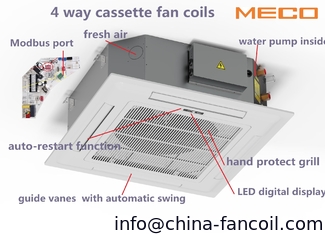

Cassette exposed Fan coil

  1. air volume from 200 to 1600CMF
  2. 4-pipe system is optional
  3. E-heater is optional
  4. Flesh air can be intake
  5. Duct connection is optional
  6. Auto swing
  7. BMS system can be optional
  8. Remote controller is standard and wire controller is optional
  9. Water drained pump can be select inside the unit (standard) or outside the unit(optional and easy to do maintain)
  10. Easy to do maintain
  11. Water valve can be optional whic installed already
  12. Float switch inside to do alarm
model(2 tube system) MFP-34KM-Q1MM1 MFP-51KM-Q1MM1 MFP-68KM-Q1MM1 MFP-85KM-Q1MM2 MFP-102KM-Q1MM2 MFP-136KM-Q1MM3 MFP-170KM-Q1MM3 MFP-204KM-Q1MM3 MFP-238KM-Q1MM3 MFP-255KM-Q1MM4 MFP-272KM-(Q)MM4
power supply 220V,50Hz,1Ph
air volume H m3/h 380 550 680 880 1050 1380 1750 2050 2200 2550 2720
M 300 440 540 700 840 1100 1400 1640 1760 1950 2040
L 230 330 410 530 630 830 1050 1230 1320 1450 1360
cooling capacity TH H W 2000 3000 3800 4900 5800 7500 9800 11000 12000 13400 15000
BTU/h 6824 10236 12966 16719 19790 25590 33438 37532 40944 44356 51180
SH W 1400 2200 2850 3500 4250 5500 7150 8250 9100 9800 11175
BTU/h 4777 7506 9724 11942 14501 18766 24396 28149 31049 33438 38129
heating capacity H W 3100 4700 5900 7600 9000 11600 15200 17100 18600 21400 24000
M W 2650 4000 5000 6450 7650 9850 12900 14550 15800 16700 19900
L W 2100 3150 3950 5100 6050 7750 10200 11450 12450 12500 15200
noise H 0Pa dB(A) 39 42 44 42 46 46 47 50 51 52 53
power input H 0Pa W 40 50 58 70 95 130 160 190 210 220 230
dimension of water(in & out)connection pipe in ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4"
out ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4"
coil type high efficient copper pipe to wear Hydrophilic aluminum coil
dimension of water drain pipe mm 26 26 26 26 26 26 26 26 26 26 26
net dimension unit L×W×H mm 592*592*242 750*750*242 840*840*242 840*840*292 946*946*292
panel 650*650*40 850*850*40 950*950*40 950*950*40 1050*1050*40




Contact Us for more info:
Mr.John Ding/Sales Manager
--------------------------------------------------
MECO,the Expert of FAN COIL UNIT
Taizhou MECO Refrigeration Equipment Co.,Ltd
Tel: +86 574 88152763
Skype: John Ding
Johnding574@gmail.com
sales02@china-fancoil.com


For Fan coil units, our range include below catagories:
hydronic hi-wall fan coil unit;                                      ceiling concealed fan coil unit;
convector fan coil unit;                                                  high static pressure fan coil unit;
