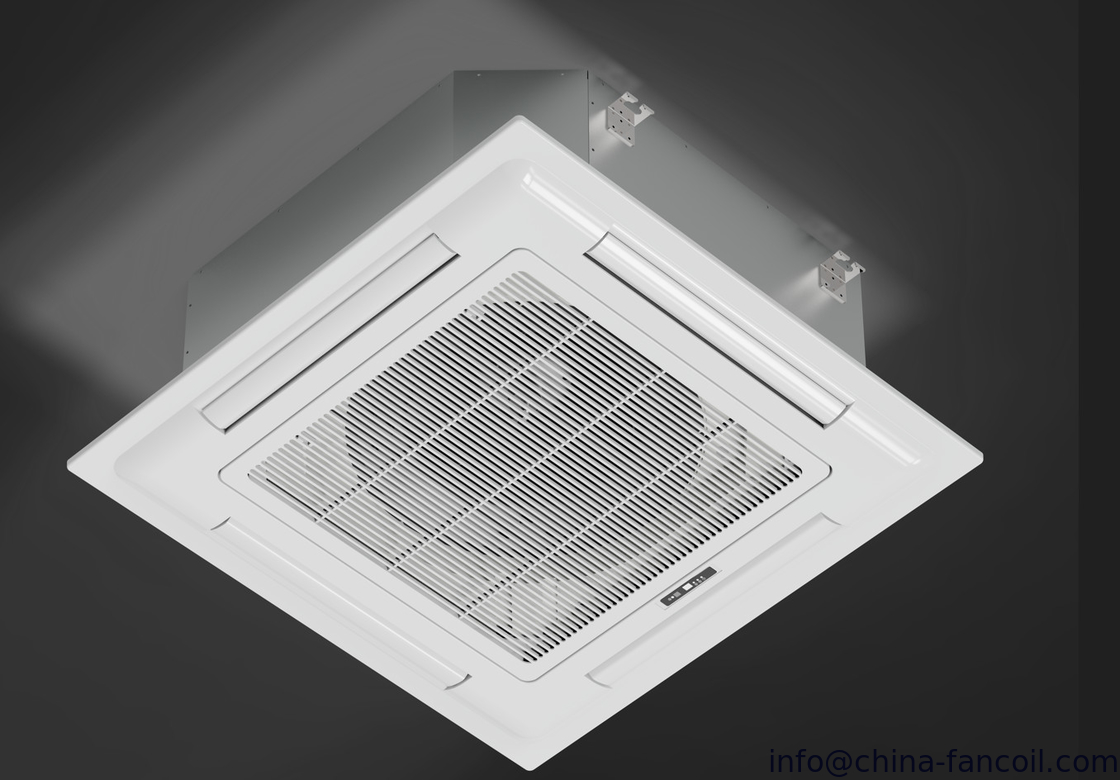

decrotive cassette fan coils

: Large Image : decrotive cassette fan coils

Product Details:

Place of Origin:	China
Brand Name:	MECO
Certification:	CE
Model Number:	Pls contact sales02@china-fancoil.com directly

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Price:	Pls mail to sales02@china-fancoil.com for check
Packaging Details:	Export packing
Delivery Time:	25-35days
Payment Terms:	TT or LC
Supply Ability:	10000pcs per month

Contact Now

Detailed Product Description

4-Way Cassette fan coils

360° airflow to reduce drafts and improve comfort
Models range from 6824BTU/h to 51180 BTU/h
Improved flexibility with 23 different possible airflow patterns, ensuring ideal air distribution to maximize comfort and savings
Lower air velocities for better room airflow distribution
Reduced unit weight and improved efficiency with a light weight fan
Stain resistant and easily cleanable decoration panel coating
3 user selectable fan speeds (H, M and L)

Flesh air can be intake
Duct connection is optional
Auto swing
BMS system can be optional
Remote controller is standard and wire controller is optional
Water drained pump can be select inside the unit (standard) or outside the unit(optional and easy to do maintain)
Water valve can be optional whic installed already
Float switch inside to do alarm

model(2 tube system)				MFP-34KM-Q1MM1	MFP-51KM-Q1MM1	MFP-68KM-Q1MM1	MFP-85KM-Q1MM2	MFP-102KM-Q1MM2	MFP-136KM-Q1MM3	MFP-170KM-Q1MM3	MFP-204KM-Q1MM3	MFP-238KM-Q1MM3	MFP-255KM-Q1MM4	MFP-272KM-(Q)MM4
power supply				220V,50Hz,1Ph
air volume		H	m³/h	380	550	680	880	1050	1380	1750	2050	2200	2550	2720
		M		300	440	540	700	840	1100	1400	1640	1760	1950	2040
		L		230	330	410	530	630	830	1050	1230	1320	1450	1360
cooling capacity	TH	H	W	2000	3000	3800	4900	5800	7500	9800	11000	12000	13400	15000
	TH		BTU/h	6824	10236	12966	16719	19790	25590	33438	37532	40944	44356	51180
	SH		W	1400	2200	2850	3500	4250	5500	7150	8250	9100	9800	11175
	SH		BTU/h	4777	7506	9724	11942	14501	18766	24396	28149	31049	33438	38129
heating capacity	H		W	3100	4700	5900	7600	9000	11600	15200	17100	18600	21400	24000
	M		W	2650	4000	5000	6450	7650	9850	12900	14550	15800	16700	19900
	L		W	2100	3150	3950	5100	6050	7750	10200	11450	12450	12500	15200
noise	H	0Pa	dB(A)	39	42	44	42	46	46	47	50	51	52	53
power input	H	0Pa	W	40	50	58	70	95	130	160	190	210	220	230
dimension of water(in & out)connection pipe			in	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"
dimension of water(in & out)connection pipe			out	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"
coil			type	high efficient copper pipe to wear Hydrophilic aluminum coil
dimension of water drain pipe			mm	￠26	￠26	￠26	￠26	￠26	￠26	￠26	￠26	￠26	￠26	￠26
net dimension	unit		L×W×H mm	592592242			750750242		840840242	840840292			946946292
net dimension	panel		L×W×H mm	65065040			85085040		95095040	95095040			1050105040
