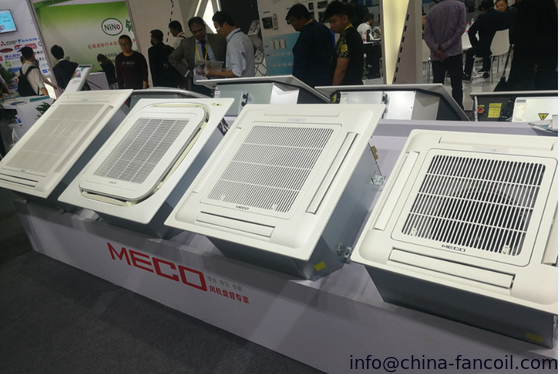

fan coil unit cassette type
4-Way Ceiling Mounted Cassette Indoor Unit with DC motor
Water chilled ceiling concealed Cassette Fan coil unit 200-1400CFM-K type
1:Cassette type fan coil unit,4-way
2:E-heater is optional
3:CE certify and Rohs standrad
4:air volume from 200 to 1400cfm
Tyst takkonvektor för både kyla och värme
Takkonvektor KM kan erbjuda både värme och kyla i en och samma produkt, perfekt för användningsområden som kontor, affärer, konferenslokaler och restauranger.
Via ställbara luftriktare i den eleganta frontgrillen kan luften spridas på önskat sätt. Möjlighet finns även att distribuera luft till angränsande utrymme via kanalanslutning.
KM är speciellt anpassad för att installeras i standardundertak, men kan även monteras frihängande.1:4-way cassette type fan coil unit
air volume : 200cfm,300cfm,400cfm,500cfm,600cfm,800cfm,1000cfm,1200cfm,1400cfm
2:4-pipe system is optional
3:E-heater is optional
4:Flesh air can be intake
5: Duct connection is optional
6: Auto swing
7: BMS system can be optional
8: Remote controller is standard and wire controller is optional
9: Water drained pump can be select inside the unit (standard) or outside the unit(optional and easy to do maintain)
10:Easy to do maintain
11:Water valve can be optional whic installed already
12:Float switch inside to do alarm
model(4 tube system) | MFP-102KM4-(Q)KK2 | MFP-136KM4-(Q)KK2 | MFP-170KM4-(Q)KK3 | MFP-204KM4-(Q)KK3 | MFP-204KM4-(Q)KK3 | |||
air volume | H | m3/h | 1020 | 1360 | 1700 | 2040 | 2380 | |
M | 850 | 1110 | 1400 | 1670 | 1950 | |||
L | 680 | 860 | 1100 | 1300 | 1520 | |||
cooling capacity | TH | H | W | 4200 | 5600 | 7000 | 8400 | 9850 |
BTU/h | 14330 | 19107 | 23884 | 28661 | 33608 | |||
SH | W | 3217 | 4200 | 5250 | 6300 | 7350 | ||
BTU/h | 10976 | 14330 | 17913 | 21496 | 25078 | |||
TH | M | W | 3570 | 4760 | 5950 | 7140 | 8355 | |
SH | W | 2499 | 3332 | 4165 | 4998 | 5850 | ||
TH | L | W | 3150 | 4200 | 5250 | 6300 | 7347 | |
SH | W | 1998 | 2667 | 3333 | 4009 | 4663 | ||
heating capacity | H | W | 3240 | 4320 | 5400 | 6480 | 7200 | |
M | W | 2620 | 3489 | 4374 | 5251 | 5832 | ||
L | W | 2233 | 2978 | 3726 | 4453 | 4968 | ||
noise | H | 0Pa | dB(A) | 45 | 46 | 48 | 50 | 52 |
power input | H | 0Pa | W | 96 | 134 | 152 | 189 | 228 |
waterflow volume | Cooling | m3/h | 0.72 | 0.96 | 1.21 | 1.45 | 1.70 | |
waterflow volume | heating | 0.27 | 0.36 | 0.45 | 0.54 | 0.60 | ||
water pressure dropping | cooling | kPa | 21.07 | 22.15 | 25.32 | 26.67 | 29.44 | |
heating | 8.26 | 8.56 | 10.87 | 11.65 | 12.31 | |||
dimension of water(in & out)connection pipe | cooling/heating | ZG3/4" | ZG3/4" | ZG3/4" | ZG3/4" | ZG3/4" | ||
ZG3/4" | ZG3/4" | ZG3/4" | ZG3/4" | ZG3/4" | ||||
dimension of pipe | mm | ¢26 | ¢26 | ¢26 | ¢26 | ¢26 | ||
net dimension | unit | L×W×H mm | 730*730*290 | 730*730*290 | 930*930*290 | |||
panel | 850*850*45 | 850*850*45 | 1050*1050*45 | |||||
net weight | unit | kg | 35 | 35 | 41 | 42 | 43 |
