Cassette 4-way 4 tube-200CFM

China Cassette 4-way 4 tube-200CFM supplier
Cassette 4-way 4 tube-200CFM supplier Cassette 4-way 4 tube-200CFM supplier Cassette 4-way 4 tube-200CFM supplier

Large Image :  Cassette 4-way 4 tube-200CFM

Product Details:

Place of Origin: China
Brand Name: MECO, DEKON OR OEM BRAND
Certification: CE
Model Number: Pls contact sales02@china-fancoil.com directly

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: Pls mail to sales02@china-fancoil.com for check
Packaging Details: Export packing
Delivery Time: 25-35days
Payment Terms: TT or LC
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description

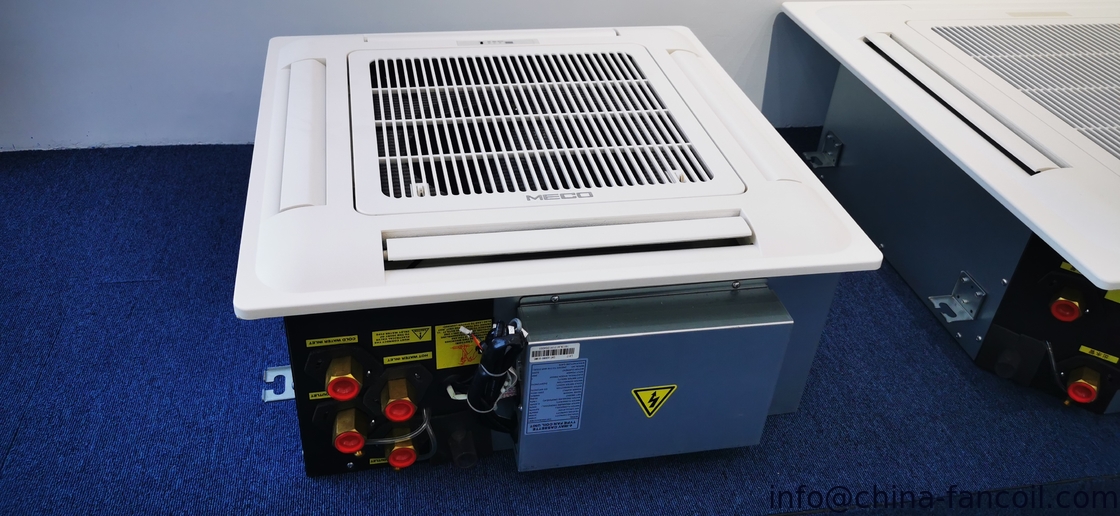

Chilled water 4 way ceiling cassette type fan coil unit
Air volume=200CFM-1600CFM(340m³/h-2720m³/h)
cooling capacity:1.8Kw--15Kw(0.5RT--4RT)
Easy to be installed. Thin design unit which can be installed in a limit ceiling, the thinnest is 290mm
EC motor is standard, DC motor is optional , high efficiency and energy saving.
"C"type heat exchanger, blue fin.
Compact design, suitable for strict space installation.
Driven by a three-speed motor, low noise.
Turbo centrifugal fan. The efficiency of airflow rate,heavy wind volume and low noise is excellent. Because the ventilator wheel is processed to sine strip seam.
Wide angel airflow: 60 degrees from top to bottom. Adopting uniform size with a square, elegant streamline panel.
Luxury shape and ABS panel. Corner cover design makes installation and maintain maintenance.
The drip tray is complete with a drain pump for draining the condensate water.
Remote control.
Fresh air can be input from outdoor to better indoor air quality.
The water remain in the tray is easy to drained by manual.

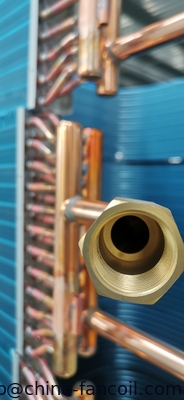

High efficient copper pipe to wear Hydrophilic aluminum coil.
2 pipes and 2 rows type as standard. 4 pipe is optional.
Water valve inside is optional.
E-heater is optional
External drained pump is optional
Electrostatic dust sanitiser is optional
BMS system is optional

model(4 tube system) MFP-34KM4-Q1MM1 MFP-51KM4-Q1MM1 MFP-68KM4-Q1MM1 MFP-85KM4-Q1MM2 MFP-102KM4-Q1MM2 MFP-136KM4-Q1MM3 MFP-170KM4-Q1MM3 MFP-204KM4-Q1MM3 MFP-238KM4-Q1MM3 MFP-255KM4-Q1MM4 MFP-272KM4-(Q)MM4
power supply 220V,50Hz,1Ph
air volume H m3/h 360 520 650 840 1000 1320 1660 1950 2090 2400 2720
M 290 420 510 670 800 1050 1330 1560 1670 1900 2040
L 220 310 390 500 600 790 1000 1170 1250 1400 1360
static pressure Pa 0 0 0 0 0 0 0 0 0 0 0
cooling capacity TH H W 1950 2950 3700 4800 5700 7350 9600 10800 11750 12800 13200
BTU/h 6700 10050 12700 16400 19400 25100 32750 36800 40150 42991 45040
SH W 1350 2150 2800 3450 4150 5400 7000 8100 8900 9500 10000
BTU/h 4700 7350 9550 11700 14200 18400 23900 27600 30450 32414 34120
TH M W 1650 2500 3200 4050 4850 6250 8200 9150 10000 10520 11000
SH W 1150 1750 2300 2800 3450 4450 5850 6700 7500 35894 37532
TH L W 1350 2000 2550 3350 3900 5100 6600 7450 8150 8730 9100
SH W 950 1350 1800 2250 2750 3550 4600 5350 5900 6310 6600
heating capacity H W 1950 3000 3750 4850 5750 7400 9700 10900 11850 13000 13500
M W 1700 2550 3200 4100 4850 6250 8200 9250 10050 10650 11200
L W 1350 2000 2500 3250 3850 4950 6500 7300 7950 8340 8750
noise H 0Pa dB(A) 39 42 44 42 46 46 47 50 51 52 53
power input H 0Pa W 40 50 58 70 95 130 160 190 210 220 230
waterflow volume Cooling m3/h 0.33 0.5 0.64 0.81 0.97 1.25 1.64 1.83 2 2.36 2.2
Heating 0.22 0.33 0.42 0.54 0.64 0.82 1.08 1.21 1.32 1.42 1.5
water pressure dropping Cooling kPa 11 13 22 18 25 23 28 33 42 ZG3/4" ZG3/4"
Heating 7 8 13 11 15 15 19 23 26 ZG3/4" ZG3/4"
dimension of water(in & out)connection pipe in ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4"
out ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4"
coil type high efficient copper pipe to wear Hydrophilic aluminum coil
dimension of water drain pipe mm ¢26 ¢26 ¢26 ¢26 ¢26   ¢26 ¢26 ¢26 ¢26 ¢26
net dimension unit L×W×H mm 592*592*242 750*750*242 840*840*242 840*840*292 946*946*292
panel 650*650*40 850*850*40 950*950*40 950*950*40 1050*1050*40
net weight unit kg 19 20 20 24.5 25.5 27.5 29.5 29.5 30 33 33
panel   2.2 4.2 5 6
