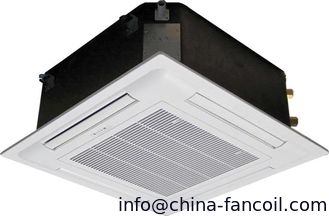

Water chilled ceiling concealed Cassette Fan coil unit 800CFM-K type

: Large Image : Water chilled ceiling concealed Cassette Fan coil unit 800CFM-K type

Product Details:

Place of Origin:	China
Brand Name:	MECO, DEKON OR OEM BRAND
Certification:	CE
Model Number:	Pls contact sales02@china-fancoil.com directly

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Price:	Pls mail to sales02@china-fancoil.com for check
Packaging Details:	Export packing
Delivery Time:	25-35days
Payment Terms:	TT or LC
Supply Ability:	10000pcs per month

Contact Now

Detailed Product Description

High Light:	cassette fan coil unit , cassette fcu , fan coil units

High Light:

cassette fan coil unit

cassette fcu

fan coil units

Water chilled ceiling concealed Cassette Fan coil unit 200-1400CFM-K type

1:Cassette type fan coil unit,4-way
2:E-heater is optional
3:CE certify and Rohs standrad
4:air volume from 200 to 1400cfm

1:4-way cassette type fan coil unit

air volume : 200cfm,300cfm,400cfm,500cfm,600cfm,800cfm,1000cfm,1200cfm,1400cfm

2:4-pipe system is optional

3:E-heater is optional

4:Flesh air can be intake

5: Duct connection is optional

6: Auto swing

7: BMS system can be optional

8: Remote controller is standard and wire controller is optional

9: Water drained pump can be select inside the unit (standard) or outside the unit(optional and easy to do maintain)

10:Easy to do maintain

11:Water valve can be optional whic installed already

12:Float switch inside to do alarm

model(2 tube system)				MFP-102KM -(Q)KK2	MFP-136KM-(Q)KK2	MFP-170KM-(Q)KK3	MFP-204KM-(Q)KK3	MFP-238KM -(Q)KK3
air volume		H	m3/h	1020	1360	1700	2040	2380
		M		850	1110	1400	1670	1950
		L		680	860	1100	1300	1520
static pressure			Pa	0	0	0	0	0
cooling capacity	TH	H	W	5400	7200	9000	10800	12600
	TH		BTU/h	18425	24566	30708	36850	42991
	SH		W	4085	5702	6780	8240	9320
	SH		BTU/h	13938	19455	23133	28115	31800
	TH	M	W	4510	6187	7600	9221	10513
	SH	M	W	3130	4300	5301	6490	7300
	TH	L	W	4040	5515	6733	8230	9390
	SH	L	W	2532	3485	4314	5314	5857
heating capacity	H		W	8100	10800	13500	16200	18900
	M		W	6550	8691	11000	13259	15300
	L		W	5570	7413	9319	11312	12890
noise	H	0Pa	dB(A)	45	46	48	50	52
power input	H	0Pa	W	96	134	152	189	228
waterflow volume			m3/h	0.93	1.23	1.54	1.85	2.16
water pressure dropping			kPa	26.8	28.4	33.2	35.9	38.4
dimension of pipe			in	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"
dimension of pipe			out	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"
dimension of water drain pipe			mm	￠26	￠26	￠26	￠26	￠26
net dimension	unit		L×W×H mm	730730290	730730290	930930290
net dimension	panel		L×W×H mm	85085045	85085045	1050105045
net weight	whole		kg	34	34	40	41	42
