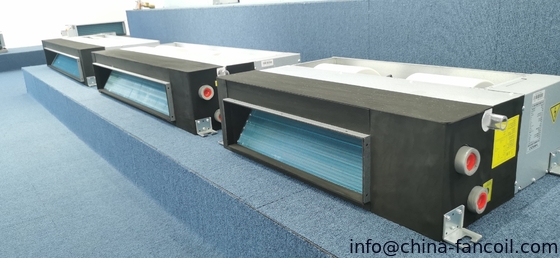

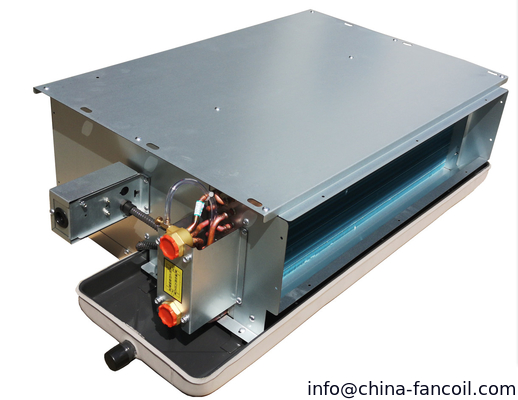

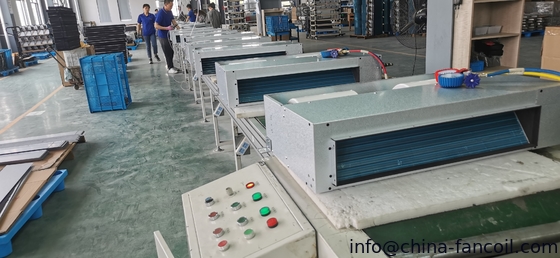

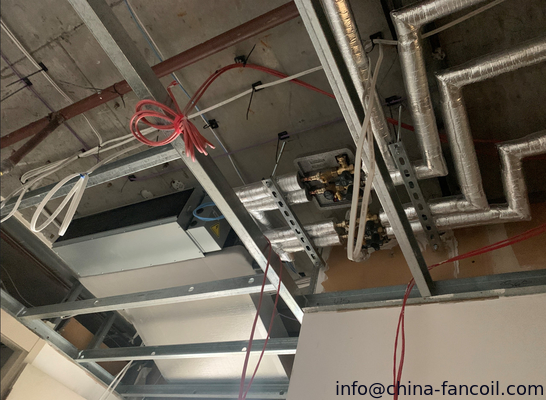

MECO Water chilled ceiling concealed duct type fan coil unit
air volume=200-1400CFM)
height=230mm
return box and filter optional
air conditioner fan coil
1. fan
Our fans are made by international professional fan manufacture with stable quality and reliable character with routine dynamic balance precise debug. Fan runs stably and quietly.
2. Water collection tray
Adopt high class panel,with plastic sprayed on the surface,therefore it is smooth and shiny rusty-proof as wellIntroducing one-off pressed forming technique,there is no welding line and point deal with heat preservation to assure the tray flat and compact avoiding quadratic leakage. Sloping design of bidirectional air guide outlet, aster the condensate is flow speed, no exist water, therefore, reducing the breeding ratio of bacteria. Outsize condensate tray design prevents coil and water pipe inlet and outlet joints from leak.
3. Heat exchanger

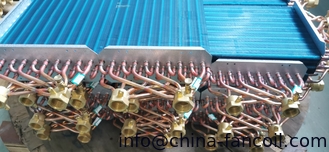

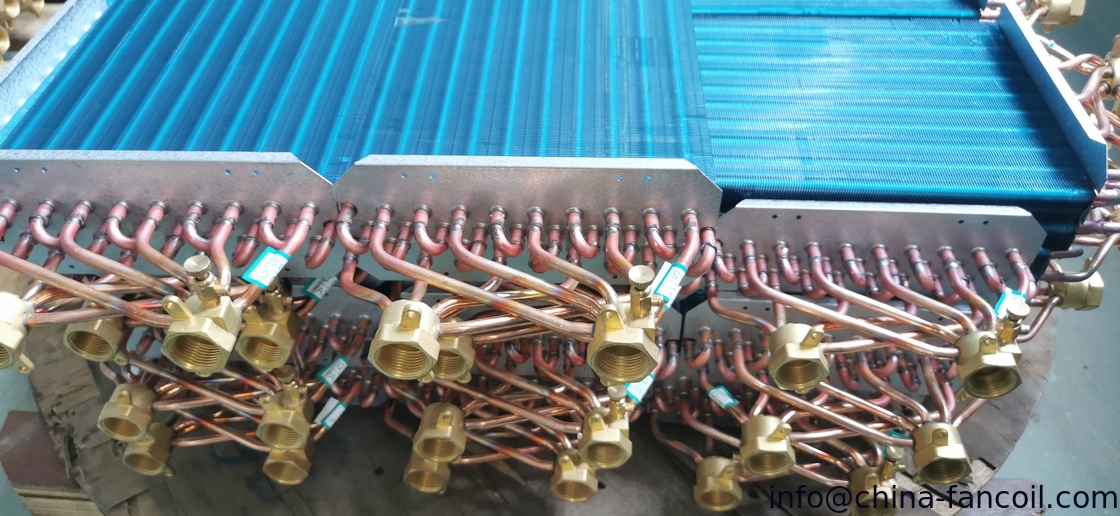

High quality purple copper, with high diathermanous efficiency, tenacity and rigidity characteristic to bear high hydraulic pressure especially, suits super high building use. Distance of fins is improved by computer emulation optimum design with experimental feedback, supply sufficient heat exchange area, smooth airflow and high efficient heat exchange.
4.Air return box is optional, which can ease installation, reducing construction cost.
5. Integrated models
Integrated model range airflow varies from 250~2000 m3/hincluding nine models.
6.High efficiency
Adopt high efficient heat exchanger and huge airflow centrifugal fan enhances unit diathermanous effect.
7.Flexible installation
Symmetrical design allows you to change the water flow direction according to you actual needs during installation
model(2 tube system) | MFP-34WA-B | MFP-51WA-B | MFP-68WA-B | MFP-85WA-B | MFP-102WA-B | MFP-136WA-B | MFP-170WA-B | MFP-204WA-B | MFP-238WA-B | |||
power supply | 220V,50Hz,1Ph | |||||||||||
air volume | H | m3/h | 340 | 510 | 680 | 850 | 1020 | 1360 | 1700 | 2040 | 2380 | |
M | 270 | 380 | 515 | 660 | 765 | 1040 | 1280 | 1550 | 1800 | |||
L | 190 | 260 | 340 | 430 | 530 | 710 | 860 | 1050 | 1280 | |||
static pressure | Pa | 12(30,50) | 12(30,50) | 12(30,50) | 12(30,50) | 12(30,50) | 12(30,50) | 12(30,50) | 12(30,50) | 12(30,50) | ||
cooling capacity | TH | H | W | 2150 | 3200 | 4000 | 5000 | 5800 | 8000 | 9500 | 11300 | 12800 |
BTU/h | 7335 | 10918 | 13648 | 17060 | 19789 | 27296 | 32414 | 38555 | 43673 | |||
SH | W | 1530 | 2230 | 2850 | 3530 | 4230 | 5790 | 6850 | 8110 | 9140 | ||
BTU/h | 5220 | 7608 | 9724 | 12044 | 14432 | 19755 | 23372 | 27671 | 31185 | |||
TH | M | W | 1710 | 2510 | 3305 | 4090 | 4790 | 6660 | 7695 | 9153 | 10000 | |
SH | W | 1210 | 1715 | 2320 | 2890 | 3345 | 4715 | 5470 | 6340 | 7165 | ||
TH | L | W | 1355 | 2000 | 2470 | 3000 | 3520 | 5150 | 5870 | 6820 | 7850 | |
SH | W | 980 | 1420 | 1735 | 2020 | 2500 | 3530 | 4075 | 4950 | 5580 | ||
heating capacity | H | W | 3350 | 5050 | 6250 | 7900 | 9150 | 12500 | 15100 | 17800 | 20100 | |
M | W | 2650 | 3900 | 5100 | 6350 | 7400 | 10300 | 11950 | 14200 | 15500 | ||
L | W | 2100 | 3100 | 3850 | 4650 | 5450 | 8000 | 9100 | 10550 | 12150 | ||
noise | high speed | 12Pa | dB(A) | 37 | 39 | 41 | 43 | 45 | 47 | 48 | 50 | 52 |
30Pa | 39 | 41 | 43 | 45 | 48 | 49 | 50 | 52 | 54 | |||
50Pa | 42 | 44 | 46 | 47 | 49 | 50 | 52 | 54 | 56 | |||
power input | 12Pa | W | 37 | 52 | 62 | 76 | 96 | 134 | 152 | 189 | 228 | |
30Pa | 44 | 59 | 72 | 87 | 108 | 156 | 174 | 212 | 253 | |||
50Pa | 49 | 66 | 84 | 100 | 118 | 174 | 210 | 250 | 300 | |||
waterflow volume | m3/h | 0.37 | 0.55 | 0.69 | 0.86 | 0.99 | 1.37 | 1.63 | 1.94 | 2.19 | ||
1.68 | ||||||||||||
water pressure dropping | kPa | 16 | 22 | 18 | 29 | 22 | 27 | 35 | 37 | 38 | ||
0.629 | 0.935 | 1.173 | 1.462 | 1.696969697 | 2.329 | 2.771 | 3.298 | 3.723 | ||||
dimension of water(in & out)connection pipe | ZG3/4" | ZG3/4" | ZG3/4" | ZG3/4" | ZG3/4" | ZG3/4" | ZG3/4" | ZG3/4" | ZG3/4" | |||
ZG3/4" | ZG3/4" | ZG3/4" | ZG3/4" | ZG3/4" | ZG3/4" | ZG3/4" | ZG3/4" | ZG3/4" | ||||
coil | type | high efficient copper pipe to wear Hydrophilic aluminum coil | ||||||||||
dimension of water drain pipe | mm | ZG3/4" | ||||||||||
dimension | without air return box | mm(L*W*H) | 624×465×235 | 814×465×235 | 864×465×235 | 944×465×235 | 1044×465×235 | 1424×465×235 | 1474×465×235 | 1674×465×235 | 1824×465×235 | |
air return from side | 624×510×235 | 814×510×235 | 864×510×235 | 944×510×235 | 1044×510×235 | 1424×510×235 | 1474×510×235 | 1674×510×235 | 1824×510×235 | |||
air return from bottom | 624×492×252 | 814×492×252 | 864×492×252 | 944×492×252 | 1044×492×252 | 1424×492×252 | 1474×492×252 | 1674×492×252 | 1824×492×252 | |||
weight | kg | 11 | 13 | 14 | 16 | 17 | 26 | 29 | 32 | 34 |
