horizontal fan coil fan coil unit-1400CFM

China horizontal fan coil fan coil unit-1400CFM supplier

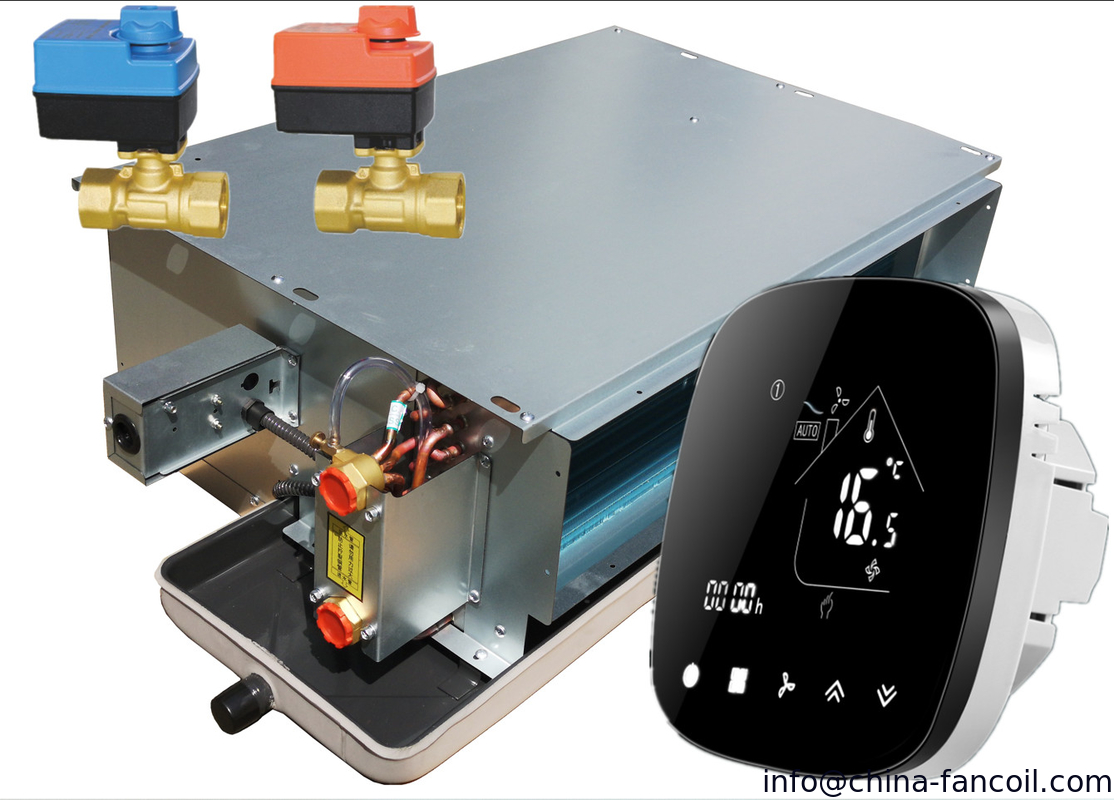

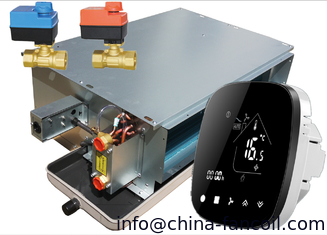

Large Image :  horizontal fan coil fan coil unit-1400CFM

Product Details:

Place of Origin: China
Brand Name: MECO, DEKON OR OEM BRAND
Certification: CE
Model Number: Pls contact sales02@china-fancoil.com directly

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: Pls mail to sales02@china-fancoil.com for check
Packaging Details: Export packing
Delivery Time: 25-35days
Payment Terms: TT or LC
Supply Ability: 10000pcs per month
Detailed Product Description

MECO Water chilled ceiling concealed duct type fan coil unit
air volume=200-1400CFM
return box and filter optional
air conditioner fan coil

1. fan
Our fans are made by international professional fan manufacture with stable quality and reliable character with routine dynamic balance precise debug. Fan runs stably and quietly.

2. Water collection tray
Adopt high class panel,with plastic sprayed on the surface,therefore it is smooth and shiny rusty-proof as well Introducing one-off pressed forming technique,there is no welding line and point deal with heat preservation to assure the tray flat and compact avoiding quadratic leakage. Sloping design of bidirectional air guide outlet, aster the condensate is flow speed, no exist water, therefore, reducing the breeding ratio of bacteria. Outsize condensate tray design prevents coil and water pipe inlet and outlet joints from leak.

3. Heat exchanger
High quality purple copper, with high diathermanous efficiency, tenacity and rigidity characteristic to bear high hydraulic pressure especially, suits super high building use. Distance of fins is improved by computer emulation optimum design with experimental feedback, supply sufficient heat exchange area, smooth airflow and high efficient heat exchange.

4.Air return box is optional, which can ease installation, reducing construction cost.

5. Integrated models
Integrated model range airflow varies from 250~2000 m3/h including nine models.

6.High efficiency
Adopt high efficient heat exchanger and huge airflow centrifugal fan enhances unit diathermanous effect.

7.Flexible installation
Symmetrical design allows you to change the water flow direction according to you actual needs during installation



PERFORMANCE OF DUCTED TYPE FAN COIL(2 TUBE)
model(2 tube system) MFP-34WA MFP-51WA MFP-68WA MFP-85WA MFP-102WA MFP-136WA MFP-170WA MFP-204WA MFP-238WA
power supply 220V,50Hz,1Ph
air volume H m3/h 340 510 680 850 1020 1360 1700 2040 2380
M 270 380 515 660 765 1040 1280 1550 1800
L 190 260 340 430 530 710 860 1050 1280
static pressure Pa 12(30) 12(30) 12(30) 12(30) 12(30) 12(30) 12(30) 12(30) 12(30)
cooling capacity TH H W 1800 2700 3600 4500 5400 7200 9000 10800 12600
BTU/h 6142 9212 12283 15354 18425 24566 30708 36850 42991
SH W 1341 2012 2682 3353 4023 5364 6705 8046 9387
BTU/h 4575 6865 9151 11440 13726 18302 22877 27453 32028
TH M W 1458 2187 2916 3645 4374 5832 7290 8748 10206
W 1152 1728 2304 2880 3455 4607 5759 6911 8063
SH L W 1134 1701 2268 2835 3402 4536 5670 6804 7938
W 930 1395 1860 2325 2790 3720 4649 5579 6509
heating capacity H W 2700 4050 5400 6750 8100 10800 13500 16200 18900
M W 2079 3119 4158 5198 6237 8316 10395 12474 14553
L W 1634 2450 3267 4084 4901 6534 8168 9801 11435
noise high speed 12Pa dB(A) 35 36 38 40 43 44 45 46 49
30Pa 39 41 43 45 48 49 50 52 54
power input 12Pa W 34 41 59 73 91 118 146 182 216
30Pa 41 54 65 82 98 132 168 206 247
waterflow volume   m3/h 0.31 0.46 0.62 0.77 0.93 1.23 1.54 1.85 2.16
water pressure dropping kPa 7 15 18 23 28 30 22 30 36
dimension of water(in & out)connection pipe   ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4"
  ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4"
coil type high efficient copper pipe to wear Hydrophilic aluminum coil
dimension of water drain pipe mm ZG3/4"
dimension L×W×H mm 755*462*235 855*462*235 955*462*235 1080*462*235 1075*462*235 1460*462*235 1650*462*235 1915*462*235 2150*462*235
weight   kg 15 18 19 21 28 30 34 37 40





Contact Us for more info:
Mr.John Ding/Sales Manager
--------------------------------------------------
MECO,the Expert of FAN COIL UNIT
Taizhou MECO Refrigeration Equipment Co.,Ltd
Tel: +86 574 88152763
Skype: John Ding
Johnding574@gmail.com
sales02@china-fancoil.com


For Fan coil units, our range include below catagories:
hydronic hi-wall fan coil unit;                                      ceiling concealed fan coil unit;
convector fan coil unit;                                                  high static pressure fan coil unit;
