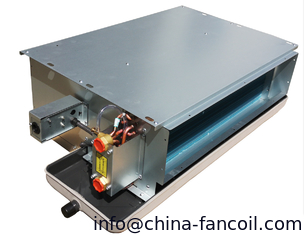

hide-away fan coil fan coil unit

China hide-away fan coil  fan coil unit supplier

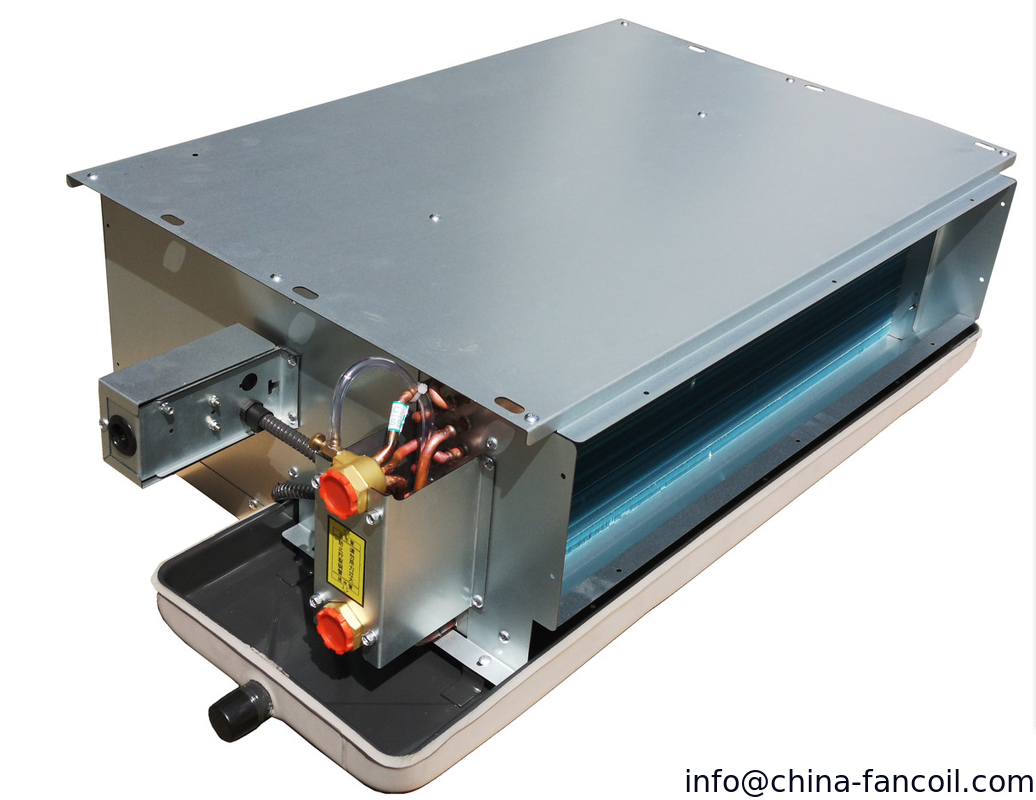

Large Image :  hide-away fan coil fan coil unit

Product Details:

Place of Origin: China
Brand Name: MECO, DEKON OR OEM BRAND
Certification: CE
Model Number: Pls contact sales02@china-fancoil.com directly

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: Pls mail to sales02@china-fancoil.com for check
Packaging Details: Export packing
Delivery Time: 25-35days
Payment Terms: TT or LC
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description

MECO Water chilled ceiling concealed duct type fan coil unit
air volume=200CFM-1400CFM
return box and filter optional
air conditioner fan coil

1. fan
Our fans are made by international professional fan manufacture with stable quality and reliable character with routine dynamic balance precise debug. Fan runs stably and quietly.

2. Water collection tray
Adopt high class panel,with plastic sprayed on the surface,therefore it is smooth and shiny rusty-proof as well Introducing one-off pressed forming technique,there is no welding line and point deal with heat preservation to assure the tray flat and compact avoiding quadratic leakage. Sloping design of bidirectional air guide outlet, aster the condensate is flow speed, no exist water, therefore, reducing the breeding ratio of bacteria. Outsize condensate tray design prevents coil and water pipe inlet and outlet joints from leak.

3. Heat exchanger
High quality purple copper, with high diathermanous efficiency, tenacity and rigidity characteristic to bear high hydraulic pressure especially, suits super high building use. Distance of fins is improved by computer emulation optimum design with experimental feedback, supply sufficient heat exchange area, smooth airflow and high efficient heat exchange.

4.Air return box is optional, which can ease installation, reducing construction cost.

5.High efficiency
Adopt high efficient heat exchanger and huge airflow centrifugal fan enhances unit diathermanous effect.

6.Flexible installation
Symmetrical design allows you to change the water flow direction according to you actual needs during installation



model(2 tube system) MFP-34WA-B MFP-51WA-B MFP-68WA-B MFP-85WA-B MFP-102WA-B MFP-136WA-B MFP-170WA-B MFP-204WA-B MFP-238WA-B
power supply 220V,50Hz,1Ph
air volume H m3/h 340 510 680 850 1020 1360 1700 2040 2380
M 270 380 515 660 765 1040 1280 1550 1800
L 190 260 340 430 530 710 860 1050 1280
static pressure Pa 12(30,50) 12(30,50) 12(30,50) 12(30,50) 12(30,50) 12(30,50) 12(30,50) 12(30,50) 12(30,50)
cooling capacity TH H W 2150 3200 4000 5000 5800 8000 9500 11300 12800
BTU/h 7335 10918 13648 17060 19789 27296 32414 38555 43673
SH W 1530 2230 2850 3530 4230 5790 6850 8110 9140
BTU/h 5220 7608 9724 12044 14432 19755 23372 27671 31185
TH M W 1710 2510 3305 4090 4790 6660 7695 9153 10000
SH W 1210 1715 2320 2890 3345 4715 5470 6340 7165
TH L W 1355 2000 2470 3000 3520 5150 5870 6820 7850
SH W 980 1420 1735 2020 2500 3530 4075 4950 5580
heating capacity H W 3350 5050 6250 7900 9150 12500 15100 17800 20100
M W 2650 3900 5100 6350 7400 10300 11950 14200 15500
L W 2100 3100 3850 4650 5450 8000 9100 10550 12150
noise high speed 12Pa dB(A) 37 39 41 43 45 47 48 50 52
30Pa 39 41 43 45 48 49 50 52 54
50Pa 42 44 46 47 49 50 52 54 56
power input 12Pa W 37 52 62 76 96 134 152 189 228
30Pa 44 59 72 87 108 156 174 212 253
50Pa 49 66 84 100 118 174 210 250 300
waterflow volume   m3/h 0.37 0.55 0.69 0.86 0.99 1.37 1.63 1.94 2.19
                1.68
water pressure dropping kPa 16 22 18 29 22 27 35 37 38
        0.629 0.935 1.173 1.462 1.696969697 2.329 2.771 3.298 3.723
dimension of water(in & out)connection pipe   ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4"
  ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4"
coil type high efficient copper pipe to wear Hydrophilic aluminum coil
dimension of water drain pipe mm ZG3/4"
dimension without air return box mm(L*W*H) 624×465×235 814×465×235 864×465×235 944×465×235 1044×465×235 1424×465×235 1474×465×235 1674×465×235 1824×465×235
air return from side 624×510×235 814×510×235 864×510×235 944×510×235 1044×510×235 1424×510×235 1474×510×235 1674×510×235 1824×510×235
air return from bottom 624×492×252 814×492×252 864×492×252 944×492×252 1044×492×252 1424×492×252 1474×492×252 1674×492×252 1824×492×252
weight   kg 11 13 14 16 17 26 29 32 34




Contact Us for more info:
Mr.John Ding/Sales Manager
--------------------------------------------------
MECO,the Expert of FAN COIL UNIT
Taizhou MECO Refrigeration Equipment Co.,Ltd
Tel: +86 574 88152763
Skype: John Ding
Johnding574@gmail.com
sales02@china-fancoil.com


For Fan coil units, our range include below catagories:
hydronic hi-wall fan coil unit;                                      ceiling concealed fan coil unit;
convector fan coil unit;                                                  high static pressure fan coil unit;
