Horizontal Concealed fan coil unit with 0-10V DC motor

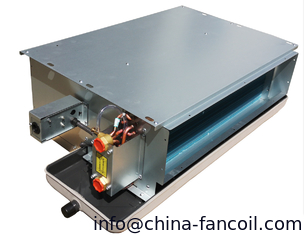

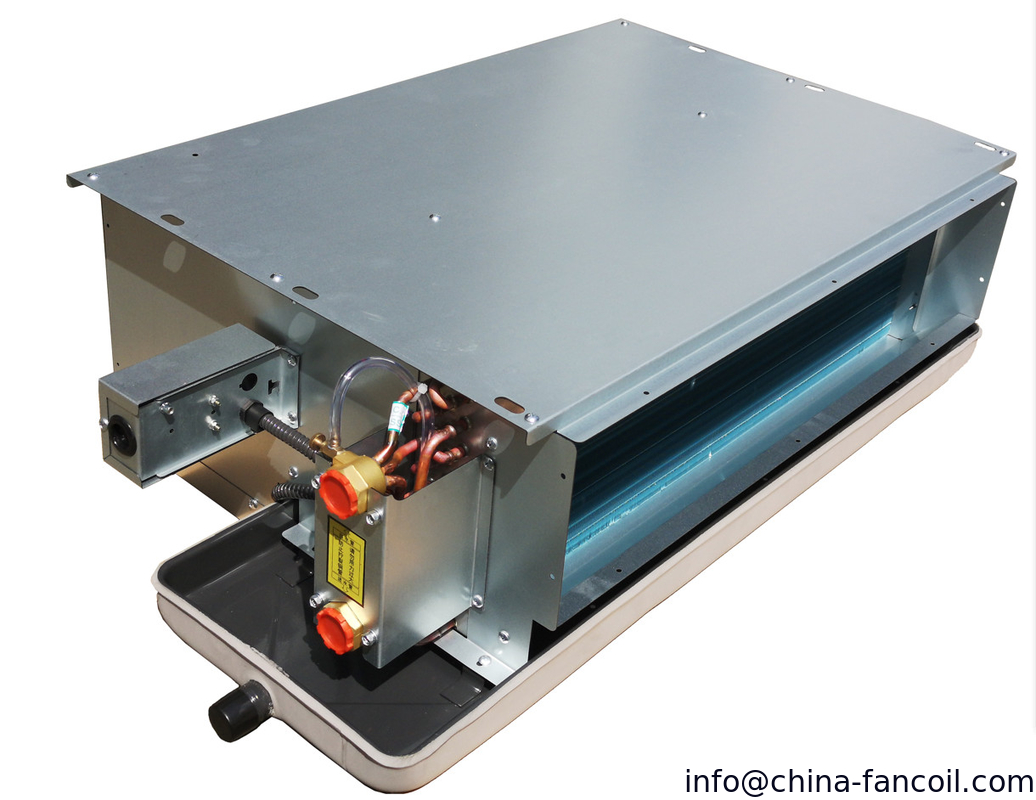

: Large Image : Horizontal Concealed fan coil unit with 0-10V DC motor

Product Details:

Place of Origin:	China
Brand Name:	MECO, DEKON OR OEM BRAND
Certification:	CE
Model Number:	Pls contact sales02@china-fancoil.com directly

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Price:	Pls mail to sales02@china-fancoil.com for check
Packaging Details:	Export packing
Delivery Time:	25-35days
Payment Terms:	TT or LC
Supply Ability:	10000pcs per month

Contact Now

Detailed Product Description

MECO Water chilled concealed duct type fan coil unit
air volume=200CFM-1400CFM
air conditioner fan coil

1. fan
Our fans are made by international professional fan manufacture with stable quality and reliable character with routine dynamic balance precise debug. Fan runs stably and quietly.

2. Water collection tray
cold rolled steel painted material

3. Heat exchanger
High quality purple copper, with high diathermanous efficiency, tenacity and rigidity characteristic to bear high hydraulic pressure especially, suits super high building use. Distance of fins is improved by computer emulation optimum design with experimental feedback, supply sufficient heat exchange area, smooth airflow and high efficient heat exchange.

4.Air return box is optional, which can ease installation, reducing construction cost.

5. Integrated models
Integrated model range airflow varies from 250~2000 m3/h including nine models.

6.High efficiency
Adopt high efficient heat exchanger and huge airflow centrifugal fan enhances unit diathermanous effect.

7.Flexible installation
Symmetrical design allows you to change the water flow direction according to you actual needs during installation

model(2 tube system)				MFP-34WA-B	MFP-51WA-B	MFP-68WA-B	MFP-85WA-B	MFP-102WA-B	MFP-136WA-B	MFP-170WA-B	MFP-204WA-B	MFP-238WA-B
power supply				220V,50Hz,1Ph
air volume		H	m³/h	340	510	680	850	1020	1360	1700	2040	2380
		M		270	380	515	660	765	1040	1280	1550	1800
		L		190	260	340	430	530	710	860	1050	1280
static pressure			Pa	12(30,50)	12(30,50)	12(30,50)	12(30,50)	12(30,50)	12(30,50)	12(30,50)	12(30,50)	12(30,50)
cooling capacity	TH	H	W	2150	3200	4000	5000	5800	8000	9500	11300	12800
	TH		BTU/h	7335	10918	13648	17060	19789	27296	32414	38555	43673
	SH		W	1530	2230	2850	3530	4230	5790	6850	8110	9140
	SH		BTU/h	5220	7608	9724	12044	14432	19755	23372	27671	31185
	TH	M	W	1710	2510	3305	4090	4790	6660	7695	9153	10000
	SH	M	W	1210	1715	2320	2890	3345	4715	5470	6340	7165
	TH	L	W	1355	2000	2470	3000	3520	5150	5870	6820	7850
	SH	L	W	980	1420	1735	2020	2500	3530	4075	4950	5580
heating capacity	H		W	3350	5050	6250	7900	9150	12500	15100	17800	20100
	M		W	2650	3900	5100	6350	7400	10300	11950	14200	15500
	L		W	2100	3100	3850	4650	5450	8000	9100	10550	12150
noise	high speed	12Pa	dB(A)	37	39	41	43	45	47	48	50	52
		30Pa		39	41	43	45	48	49	50	52	54
		50Pa		42	44	46	47	49	50	52	54	56
power input		12Pa	W	37	52	62	76	96	134	152	189	228
		30Pa		44	59	72	87	108	156	174	212	253
		50Pa		49	66	84	100	118	174	210	250	300
waterflow volume			m³/h	0.37	0.55	0.69	0.86	0.99	1.37	1.63	1.94	2.19
								1.68
water pressure dropping			kPa	16	22	18	29	22	27	35	37	38
				0.629	0.935	1.173	1.462	1.696969697	2.329	2.771	3.298	3.723
dimension of water(in & out)connection pipe				ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"
dimension of water(in & out)connection pipe				ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"
coil			type	high efficient copper pipe to wear Hydrophilic aluminum coil
dimension of water drain pipe			mm	ZG3/4"
dimension	without air return box		mm(LWH)	624×465×235	814×465×235	864×465×235	944×465×235	1044×465×235	1424×465×235	1474×465×235	1674×465×235	1824×465×235
	air return from side			624×510×235	814×510×235	864×510×235	944×510×235	1044×510×235	1424×510×235	1474×510×235	1674×510×235	1824×510×235
	air return from bottom			624×492×252	814×492×252	864×492×252	944×492×252	1044×492×252	1424×492×252	1474×492×252	1674×492×252	1824×492×252
weight			kg	11	13	14	16	17	26	29	32	34
