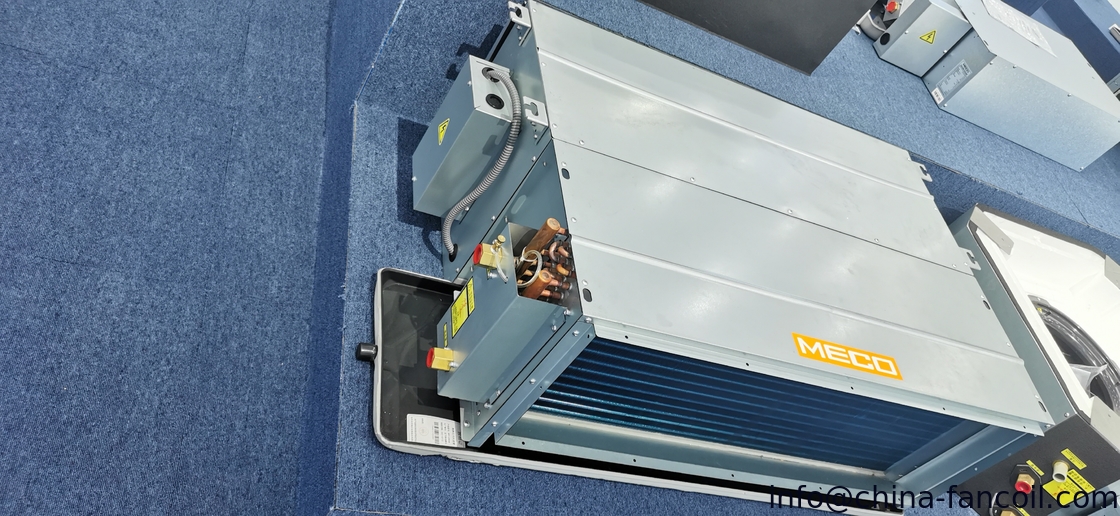

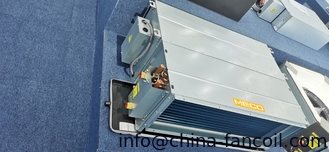

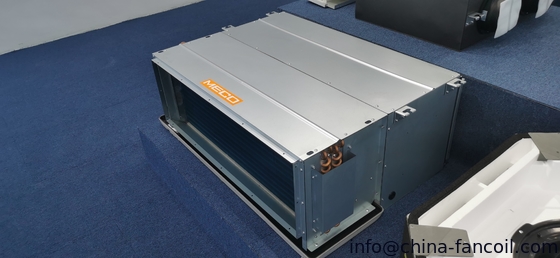

Water chilled high static pressure type fan coil units 1000CFM-2800CFM
fan coil
static pressure =120Pa
air volume=1000CFM-2800CFM
fan coil
1.Three speed fan, meet different wind volume requirement.
2.Classical elegant design, with no ceiling also can combined with indoor fitment excellent.
3.High static pressure, realize further distance with below.
4.Fresh air is available, improve air quality.
model(2 tube system) | MFP-340HA | MFP-408HA | MFP-476HA | |||
air volume | H | m3/h | 3400 | 4080 | 4760 | |
M | 2560 | 3100 | 3600 | |||
L | 1720 | 2100 | 2560 | |||
static pressure | Pa | 200 | 250 | 300 | ||
cooling capacity | TH | H | W | 18000 | 21600 | 25200 |
BTU/h | 61416 | 73699 | 85982 | |||
SH | W | 13410 | 16092 | 18774 | ||
BTU/h | 45755 | 54906 | 64057 | |||
TH | M | W | 14580 | 17496 | 20412 | |
W | 11518 | 13822 | 16125 | |||
SH | L | W | 11340 | 13608 | 15876 | |
W | 9299 | 11159 | 13018 | |||
heating capacity | H | W | 27000 | 32400 | 37800 | |
M | W | 20790 | 24948 | 29106 | ||
L | W | 16335 | 19602 | 22869 | ||
noise | high speed | 120Pa | dB(A) | 56 | 58 | 60 |
power input | 120Pa | W | 900 | 1100 | 1150 | |
waterflow volume | m3/h | 3.08 | 3.7 | 4.32 | ||
water pressure dropping | kPa | 40 | 56 | 68 | ||
dimension of water(in & out)connection pipe | ZG7/4" | ZG7/4" | ZG7/4" | |||
ZG7/4" | ZG7/4" | ZG7/4" | ||||
dimension of water drain pipe | mm | 1.6 | 1.6 | 1.6 | ||
dimension | L×W×H | mm | 1440*770*538 | 1440*770*538 | 1440*770*538 | |
weight | kg | 88 | 98 | 105 |
