High wall mounted fan coil unit-600CFM

China High wall mounted fan coil unit-600CFM supplier
High wall mounted fan coil unit-600CFM supplier High wall mounted fan coil unit-600CFM supplier High wall mounted fan coil unit-600CFM supplier

Large Image :  High wall mounted fan coil unit-600CFM

Product Details:

Place of Origin: China
Brand Name: MECO
Certification: CE,ISO9001
Model Number: http://www.china-fancoil.com

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs per model
Price: check out by mail to info@china-fancoil.com
Packaging Details: standard Export carton box
Delivery Time: 30-35days since deposit date
Payment Terms: TT or LC at sight
Supply Ability: 10000pcs per month
Detailed Product Description

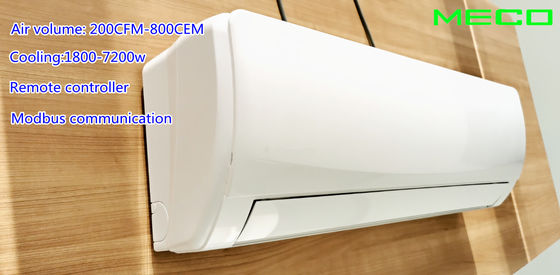

MECO water chilledhigh wall fan coil

Air volume from 200cfm to 600cfm

cooling capacity from 1800W to 7200W

ABS panel

3 speed remote controller

Power-down memory function is optional

1,LED DISPLAY panel
2,Water valve inside is optional
3,Remote controller is standard
4,Stainless steel hose,let the water connection easily




model(2 tube system) MFP-34BM MFP-51BM MFP-68BM MFP-85BM MFP-102BM MFP-136BM
power supply 220V,50Hz,1Ph
air volume H m3/h 340 510 680 850 1020 1020
M 280 380 515 660 765 765
L 180 260 340 430 530 530
static pressure Pa 0 0 0 0 0 0
cooling capacity TH H W 1800 2700 3600 4500 5400 7200
BTU/h 6142 9212 12283 15354 18425 24566
SH W 1350 2025 2700 3375 4050 5400
BTU/h 4606 6909 9212 11516 13819 18424
TH M W 1476 2214 2952 3690 4428 5904
W 978 1399 1963 2409 3044 3926
SH L W 1098 1647 2196 2745 3294 4392
W 649 960 1355 1715 2060 2710
heating capacity H W 2700 4050 5400 6750 8100 10800
M W 2146 3219 4293 5366 6439 8586
L W 1512 2268 3024 3780 4536 6048
noise H 0Pa dB(A) 37 39 41 43 45 46
power input H 0Pa W 30 38 45 50 90 100
waterflow volume   m3/h 0.31 0.46 0.62 0.77 0.93 0.93
water pressure dropping kPa 12 14 17 18 22.5 23.5
dimension of water(in & out)connection pipe in ZG1/2" ZG1/2" ZG1/2" ZG1/2" ZG1/2" ZG1/2"
out ZG1/2" ZG1/2" ZG1/2" ZG1/2" ZG1/2" ZG1/2"
coil type high efficient copper pipe to wear Hydrophilic aluminum coil
The maximum pressure MPa 1.6 1.6 1.6 1.6 1.6 1.6
dimension of water drain pipe mm ¢16 ¢16 ¢16 ¢16 ¢16 ¢16
unit  dimennsion L×W×H mm 795*285*215 795*285*215 990*330*230 990*330*230 1090*330*255 1090*330*255
unit weight kg 11.2 11.2 14.5 14.5 16.5 16.5




Contact Us for more info:
Mr.John Ding/Sales Manager
--------------------------------------------------
MECO,the Expert of FAN COIL UNIT
Taizhou MECO Refrigeration Equipment Co.,Ltd
Tel: +86 574 88152763
Skype: John Ding
Johnding574@gmail.com
sales02@china-fancoil.com


For Fan coil units, our range include below catagories:
hydronic hi-wall fan coil unit;                                      ceiling concealed fan coil unit;
convector fan coil unit;                                                  high static pressure fan coil unit;
