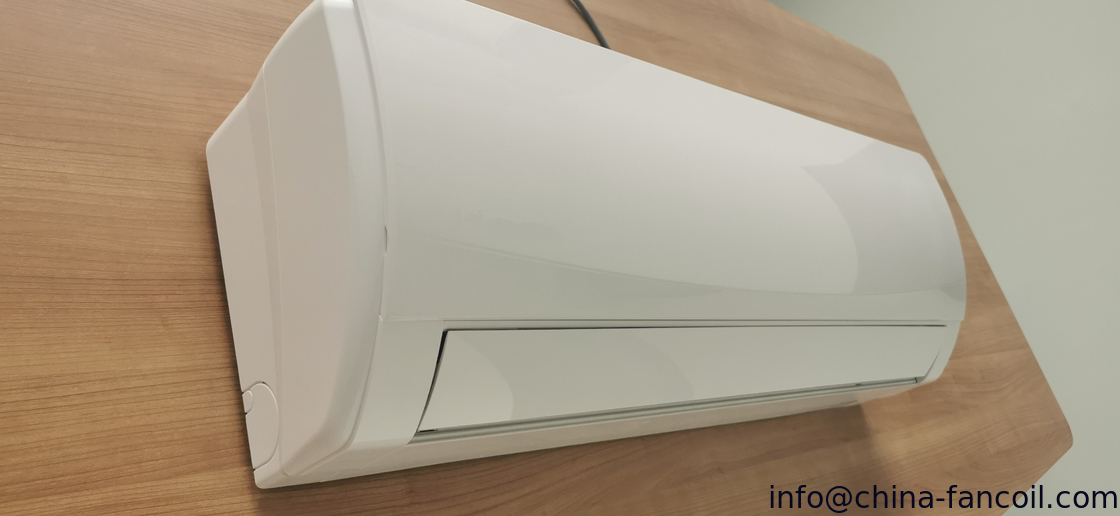

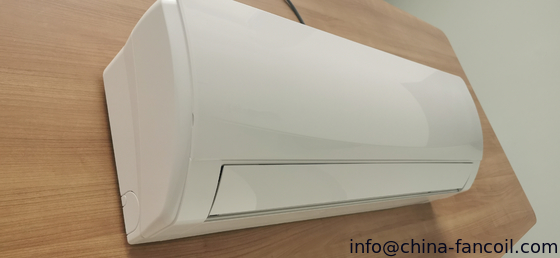

MECO water chilledhigh wall fan coil
Air volume from 200cfm to 600cfm
cooling capacity from 1800W to 7200W
ABS panel
3 speed remote controller
Power-down memory function is optional
1,LED DISPLAY panel
2,Water valve inside is optional
3,Remote controller is standard
4,Stainless steel hose,let the water connection easily
model(2 tube system) | MFP-34BM | MFP-51BM | MFP-68BM | MFP-85BM | MFP-102BM | MFP-136BM | |||
power supply | 220V,50Hz,1Ph | ||||||||
air volume | H | m3/h | 340 | 510 | 680 | 850 | 1020 | 1020 | |
M | 280 | 380 | 515 | 660 | 765 | 765 | |||
L | 180 | 260 | 340 | 430 | 530 | 530 | |||
static pressure | Pa | 0 | 0 | 0 | 0 | 0 | 0 | ||
cooling capacity | TH | H | W | 1800 | 2700 | 3600 | 4500 | 5400 | 7200 |
BTU/h | 6142 | 9212 | 12283 | 15354 | 18425 | 24566 | |||
SH | W | 1350 | 2025 | 2700 | 3375 | 4050 | 5400 | ||
BTU/h | 4606 | 6909 | 9212 | 11516 | 13819 | 18424 | |||
TH | M | W | 1476 | 2214 | 2952 | 3690 | 4428 | 5904 | |
W | 978 | 1399 | 1963 | 2409 | 3044 | 3926 | |||
SH | L | W | 1098 | 1647 | 2196 | 2745 | 3294 | 4392 | |
W | 649 | 960 | 1355 | 1715 | 2060 | 2710 | |||
heating capacity | H | W | 2700 | 4050 | 5400 | 6750 | 8100 | 10800 | |
M | W | 2146 | 3219 | 4293 | 5366 | 6439 | 8586 | ||
L | W | 1512 | 2268 | 3024 | 3780 | 4536 | 6048 | ||
noise | H | 0Pa | dB(A) | 37 | 39 | 41 | 43 | 45 | 46 |
power input | H | 0Pa | W | 30 | 38 | 45 | 50 | 90 | 100 |
waterflow volume | m3/h | 0.31 | 0.46 | 0.62 | 0.77 | 0.93 | 0.93 | ||
water pressure dropping | kPa | 12 | 14 | 17 | 18 | 22.5 | 23.5 | ||
dimension of water(in & out)connection pipe | in | ZG1/2" | ZG1/2" | ZG1/2" | ZG1/2" | ZG1/2" | ZG1/2" | ||
out | ZG1/2" | ZG1/2" | ZG1/2" | ZG1/2" | ZG1/2" | ZG1/2" | |||
coil | type | high efficient copper pipe to wear Hydrophilic aluminum coil | |||||||
The maximum pressure | MPa | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | ||
dimension of water drain pipe | mm | ¢16 | ¢16 | ¢16 | ¢16 | ¢16 | ¢16 | ||
unit dimennsion | L×W×H | mm | 795*285*215 | 795*285*215 | 990*330*230 | 990*330*230 | 1090*330*255 | 1090*330*255 | |
unit weight | kg | 11.2 | 11.2 | 14.5 | 14.5 | 16.5 | 16.5 |
