wall-mounted fan coil 800CFM

China wall-mounted fan coil 800CFM supplier
wall-mounted fan coil 800CFM supplier wall-mounted fan coil 800CFM supplier wall-mounted fan coil 800CFM supplier

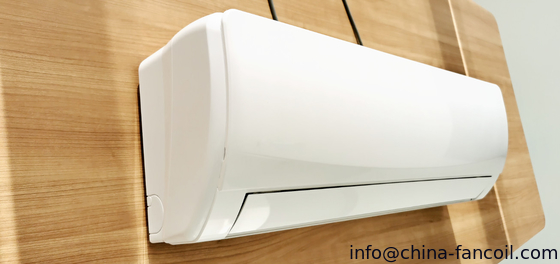

Large Image :  wall-mounted fan coil 800CFM

Product Details:

Place of Origin: China
Brand Name: MECO
Certification: CE,ISO9001
Model Number: http://www.china-fancoil.com

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs per model
Price: check out by mail to info@china-fancoil.com
Packaging Details: standard Export carton box
Delivery Time: 30-35days since deposit date
Payment Terms: TT or LC at sight
Supply Ability: 10000pcs per month
Detailed Product Description
High Light:

high wall fan coil

,

hi-wall fan coil unit

,

fan coil unit

MECO water chilledhigh wall fan coil


Air volume from 200cfm to 600cfm


cooling capacity from 1800W to 7200W

ABS panel

3 speed remote controller

Power-down memory function is optional



performance:



model2 tube system MFP-34BM MFP-51BM MFP-68BM MFP-85BM MFP-102BM
power supply 220V,50Hz,1Ph
air volume H m3/h 340 510 680 850 1020
M 280 380 515 660 765
L 180 260 340 430 530
static pressure Pa 0 0 0 0 0
cooling capacity TH H W 1620 2430 3240 4050 4860
BTU/h 5528 8291 11055 13819 16583
SH W 1215 1823 2430 3038 3645
BTU/h 4145 6218 8291 10364 12437
TH M W 1328 1993 2657 3321 3985
W 880 1259 1767 2168 2740
SH L W 988 1482 1976 2471 2965
W 584 864 1220 1544 1854
heating capacity H W 2430 3645 4860 6075 7290
M W 1931 2897 3864 4829 5795
L W 1361 2041 2722 3402 4082
noise H 0Pa dB(A) 37 39 41 43 45
power input H 0Pa W 30 38 45 50 90
waterflow volume   m3/h 0.28 0.41 0.56 0.69 0.84
water pressure dropping kPa 12 14 17 18 22.5
dimension of water(in & out)connection pipe in ZG1/2" ZG1/2" ZG1/2" ZG1/2" ZG1/2"
out ZG1/2" ZG1/2" ZG1/2" ZG1/2" ZG1/2"
coil type high efficient copper pipe to wear Hydrophilic aluminum coil
The maximum pressure MPa 1.6 1.6 1.6 1.6 1.6
dimension of water drain pipe mm 16 16 16 16 16
unit dimennsion LWH mm 795*285*215 795*285*215 990330230 990330230 1090330255
unit weight kg 11.2 11.2 14.5 14.5 16.5
