New Type 4-Way Cassette Chilled Water Fan Coil Unit(2 Pipes Type)-1600CFM

China New Type 4-Way Cassette Chilled Water Fan Coil Unit(2 Pipes Type)-1600CFM supplier
New Type 4-Way Cassette Chilled Water Fan Coil Unit(2 Pipes Type)-1600CFM supplier New Type 4-Way Cassette Chilled Water Fan Coil Unit(2 Pipes Type)-1600CFM supplier New Type 4-Way Cassette Chilled Water Fan Coil Unit(2 Pipes Type)-1600CFM supplier

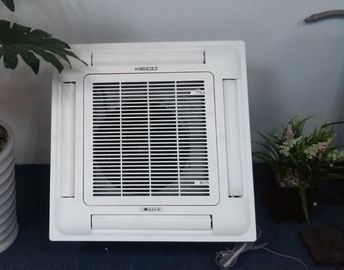

Large Image :  New Type 4-Way Cassette Chilled Water Fan Coil Unit(2 Pipes Type)-1600CFM

Product Details:

Place of Origin: China
Brand Name: MECO, DEKON OR OEM BRAND
Certification: CE
Model Number: Pls contact sales02@china-fancoil.com directly

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: Pls mail to sales02@china-fancoil.com for check
Packaging Details: Export packing
Delivery Time: 25-35days
Payment Terms: TT or LC
Supply Ability: 10000pcs per month
Detailed Product Description
Use: Room Power Source: Electrical
Type: Ceiling Cooling/Heating: Cooling/Heating

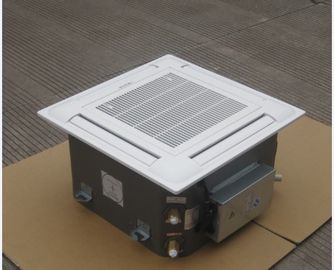

Chilled water 4 way cassette type fan coil units
water cassette air conditioner
air volume=200CFM-1200CFM
drained by water pump height=290mm
multi air flow
E-heater is optional
Duct connection is optional
Flesh air can be intake
Compact design, suitable for strict space installation.
Centrifugal fan with backward vanes, driven by a three-speed motor, statically and dynamically balanced, low noise.
Luxury shape and ABS panel
The easily removable filter is made of filtering honeycomb polypropylene fabric and supported by a plastic frame.
The drip tray is complete with a drain pump for draining the condensate water.
remote control
BMS system can be optional
Water drained pump can be select inside the unit (standard) or outside the unit(optional and easy to do maintain)
2 pipes and 2 rows type as standard.
♦ On-board thermostat and remote thermostat
♦ Electric heater
♦ Return air box
♦ Balancing valve
♦Auto swing





CHILLED WATER CASSETTE FAN COIL(4-WAY,4 TUBE)---DRAINED BY WATER PUMP
model(4 tube system) FP-34CA-K4 FP-51CA-K4 FP-68CA-K4 FP-80CA-K4 FP-85CA-K4 FP-102CA-K4 FP-136CA-K4 FP-170CA-K4 FP-204CA-K4 FP-238CA-K4 FP-272CA-K4
power supply 220V,50Hz,60Hz
air volume H m3/h 340 510 680 800 850 1020 1360 1700 2040 2380 2720
M 290 400 540 650 700 850 1110 1400 1670 1950 2150
L 200 290 400 500 550 680 860 1100 1300 1520 1600
static pressure Pa 0 0 0 0 0 0 0 0 0 0 0
cooling capacity TH H W 1400 2100 2800 3250 3500 4200 5600 7000 8400 9850 11200
BTU/h 4777 7165 9554 11089 11942 14330 19107 23884 28661 33608 38214
SH W 1050 1570 2098 2448 2650 3217 4200 5250 6300 7350 8400
BTU/h 3583 5357 7158 8353 9042 10976 14330 17913 21496 25078 28660
TH M W 1200 1793 2342 2794 2989 3570 4760 5950 7140 8355 9520
SH W 850 1262 1619 1976 2100 2499 3332 4165 4998 5850 6664
TH L W 1060 1571 2110 2467 2612 3150 4200 5250 6300 7347 8400
SH W 675 1000 1340 1580 1643 1998 2667 3333 4009 4663 5334
heating capacity H W 1080 1620 2160 2460 2700 3240 4320 5400 6480 7200 8640
M W 870 1310 1762 2000 2160 2620 3489 4374 5251 5832 6978
L W 752 1102 1497 1700 1845 2233 2978 3726 4453 4968 5956
noise H 0Pa dB(A) 37 39 41 42 43 45 46 48 50 52 53
power input H 0Pa W 37 52 62 65 76 96 134 152 189 228 250
waterflow volume Cooling m3/h 0.24 0.36 0.48 0.56 0.60 0.72 0.96 1.21 1.45 1.70 1.98
waterflow volume heating 0.09 0.14 0.18 0.21 0.23 0.27 0.36 0.45 0.54 0.60 0.72
water pressure dropping cooling  kPa 8.22 8.54 12.88 13.54 16.45 21.07 22.15 25.32 26.67 29.44 31.05
heating 3.51 3.84 6.31 7.02 7.37 8.26 8.56 10.87 11.65 12.31 12.78
dimension of water(in & out)connection pipe cooling/heating ZG3/4" ZG3/4" ZG3/4"   ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4"
ZG3/4" ZG3/4" ZG3/4"   ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4"
coil type high efficient copper pipe to wear Hydrophilic aluminum coil
dimension of drain pipe mm ¢26 ¢26 ¢26 ¢26 ¢26 ¢26 ¢26 ¢26 ¢26 ¢26 ¢26
net dimension unit L×W×H     mm 570*570*290   730*730*290 930*930*290
panel 650*650*45   850*850*45 1050*1050*45
net weight unit kg 25 25 27 28 34 35 35 41 42 43 44
Contact Us for more info:
Mr.John Ding/Sales Manager
--------------------------------------------------
MECO,the Expert of FAN COIL UNIT
Taizhou MECO Refrigeration Equipment Co.,Ltd
Tel: +86 574 88152763
Skype: John Ding
Johnding574@gmail.com
sales02@china-fancoil.com


For Fan coil units, our range include below catagories:
hydronic hi-wall fan coil unit;                                      ceiling concealed fan coil unit;
convector fan coil unit;                                                  high static pressure fan coil unit;
