Cassette fan coil unit with ISO/CE certification-1400CFM

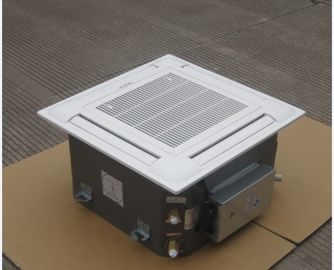

Large Image : Cassette fan coil unit with ISO/CE certification-1400CFM

Product Details:

Place of Origin:	China
Brand Name:	MECO, DEKON OR OEM BRAND
Certification:	CE
Model Number:	Pls contact sales02@china-fancoil.com directly

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Price:	Pls mail to sales02@china-fancoil.com for check
Packaging Details:	Export packing
Delivery Time:	25-35days
Payment Terms:	TT or LC
Supply Ability:	10000pcs per month

Contact Now

Detailed Product Description

Use:	Room	Power Source:	Electrical
Type:	Ceiling	Cooling/Heating:	Cooling/Heating

Chilled water 4 way cassette type fan coil units
water cassette air conditioner
air volume=200CFM-1200CFM
drained by water pump height=290mm
multi air flow
E-heater is optional
Duct connection is optional
Flesh air can be intake
Compact design, suitable for strict space installation.
Centrifugal fan with backward vanes, driven by a three-speed motor, statically and dynamically balanced, low noise.
Luxury shape and ABS panel
The easily removable filter is made of filtering honeycomb polypropylene fabric and supported by a plastic frame.
The drip tray is complete with a drain pump for draining the condensate water.
remote control
BMS system can be optional
Water drained pump can be select inside the unit (standard) or outside the unit(optional and easy to do maintain)
2 pipes and 2 rows type as standard.
♦ On-board thermostat and remote thermostat
♦ Electric heater
♦ Return air box
♦ Balancing valve
♦Auto swing

CHILLED WATER CASSETTE FAN COIL(4-WAY,4 TUBE)---DRAINED BY WATER PUMP
model(4 tube system)				FP-34CA-K4	FP-51CA-K4	FP-68CA-K4	FP-80CA-K4	FP-85CA-K4	FP-102CA-K4	FP-136CA-K4	FP-170CA-K4	FP-204CA-K4	FP-238CA-K4	FP-272CA-K4
power supply				220V,50Hz,60Hz
air volume		H	m³/h	340	510	680	800	850	1020	1360	1700	2040	2380	2720
		M		290	400	540	650	700	850	1110	1400	1670	1950	2150
		L		200	290	400	500	550	680	860	1100	1300	1520	1600
static pressure			Pa	0	0	0	0	0	0	0	0	0	0	0
cooling capacity	TH	H	W	1400	2100	2800	3250	3500	4200	5600	7000	8400	9850	11200
	TH		BTU/h	4777	7165	9554	11089	11942	14330	19107	23884	28661	33608	38214
	SH		W	1050	1570	2098	2448	2650	3217	4200	5250	6300	7350	8400
	SH		BTU/h	3583	5357	7158	8353	9042	10976	14330	17913	21496	25078	28660
	TH	M	W	1200	1793	2342	2794	2989	3570	4760	5950	7140	8355	9520
	SH	M	W	850	1262	1619	1976	2100	2499	3332	4165	4998	5850	6664
	TH	L	W	1060	1571	2110	2467	2612	3150	4200	5250	6300	7347	8400
	SH	L	W	675	1000	1340	1580	1643	1998	2667	3333	4009	4663	5334
heating capacity	H		W	1080	1620	2160	2460	2700	3240	4320	5400	6480	7200	8640
	M		W	870	1310	1762	2000	2160	2620	3489	4374	5251	5832	6978
	L		W	752	1102	1497	1700	1845	2233	2978	3726	4453	4968	5956
noise	H	0Pa	dB(A)	37	39	41	42	43	45	46	48	50	52	53
power input	H	0Pa	W	37	52	62	65	76	96	134	152	189	228	250
waterflow volume		Cooling	m³/h	0.24	0.36	0.48	0.56	0.60	0.72	0.96	1.21	1.45	1.70	1.98
waterflow volume		heating	m³/h	0.09	0.14	0.18	0.21	0.23	0.27	0.36	0.45	0.54	0.60	0.72
water pressure dropping		cooling	kPa	8.22	8.54	12.88	13.54	16.45	21.07	22.15	25.32	26.67	29.44	31.05
water pressure dropping		heating	kPa	3.51	3.84	6.31	7.02	7.37	8.26	8.56	10.87	11.65	12.31	12.78
dimension of water(in & out)connection pipe		cooling/heating		ZG3/4"	ZG3/4"	ZG3/4"		ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"
dimension of water(in & out)connection pipe		cooling/heating		ZG3/4"	ZG3/4"	ZG3/4"		ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"
coil			type	high efficient copper pipe to wear Hydrophilic aluminum coil
dimension of drain pipe			mm	￠26	￠26	￠26	￠26	￠26	￠26	￠26	￠26	￠26	￠26	￠26
net dimension	unit		L×W×H mm	570570290				730730290			930930290
net dimension	panel		L×W×H mm	65065045				85085045			1050105045
net weight	unit		kg	25	25	27	28	34	35	35	41	42	43	44
