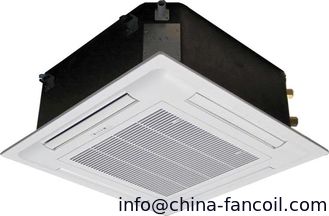

Water chilled ceiling concealed Cassette Fan coil unit 1000CFM-K type 4 Tube

: Large Image : Water chilled ceiling concealed Cassette Fan coil unit 1000CFM-K type 4 Tube

Product Details:

Place of Origin:	China
Brand Name:	MECO, DEKON OR OEM BRAND
Certification:	CE
Model Number:	Pls contact sales02@china-fancoil.com directly

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Price:	Pls mail to sales02@china-fancoil.com for check
Packaging Details:	Export packing
Delivery Time:	25-35days
Payment Terms:	TT or LC
Supply Ability:	10000pcs per month

Contact Now

Detailed Product Description

High Light:	cassette fan coil unit , cassette fcu , fan coil units

High Light:

cassette fan coil unit

cassette fcu

fan coil units

Water chilled ceiling concealed Cassette Fan coil unit 200-1400CFM-K type

1:Cassette type fan coil unit,4-way
2:E-heater is optional
3:CE certify and Rohs standrad
4:air volume from 200 to 1400cfm

1:4-way cassette type fan coil unit

air volume : 200cfm,300cfm,400cfm,500cfm,600cfm,800cfm,1000cfm,1200cfm,1400cfm

2:4-pipe system is optional

3:E-heater is optional

4:Flesh air can be intake

5: Duct connection is optional

6: Auto swing

7: BMS system can be optional

8: Remote controller is standard and wire controller is optional

9: Water drained pump can be select inside the unit (standard) or outside the unit(optional and easy to do maintain)

10:Easy to do maintain

11:Water valve can be optional whic installed already

12:Float switch inside to do alarm

model(4 tube system)				MFP-102KM4-(Q)KK2	MFP-136KM4-(Q)KK2	MFP-170KM4-(Q)KK3	MFP-204KM4-(Q)KK3	MFP-204KM4-(Q)KK3
air volume		H	m3/h	1020	1360	1700	2040	2380
		M		850	1110	1400	1670	1950
		L		680	860	1100	1300	1520
cooling capacity	TH	H	W	4200	5600	7000	8400	9850
	TH		BTU/h	14330	19107	23884	28661	33608
	SH		W	3217	4200	5250	6300	7350
	SH		BTU/h	10976	14330	17913	21496	25078
	TH	M	W	3570	4760	5950	7140	8355
	SH	M	W	2499	3332	4165	4998	5850
	TH	L	W	3150	4200	5250	6300	7347
	SH	L	W	1998	2667	3333	4009	4663
heating capacity	H		W	3240	4320	5400	6480	7200
	M		W	2620	3489	4374	5251	5832
	L		W	2233	2978	3726	4453	4968
noise	H	0Pa	dB(A)	45	46	48	50	52
power input	H	0Pa	W	96	134	152	189	228
waterflow volume		Cooling	m3/h	0.72	0.96	1.21	1.45	1.70
waterflow volume		heating	m3/h	0.27	0.36	0.45	0.54	0.60
water pressure dropping		cooling	kPa	21.07	22.15	25.32	26.67	29.44
water pressure dropping		heating	kPa	8.26	8.56	10.87	11.65	12.31
dimension of water(in & out)connection pipe		cooling/heating		ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"
dimension of water(in & out)connection pipe		cooling/heating		ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"
dimension of pipe			mm	￠26	￠26	￠26	￠26	￠26
net dimension	unit		L×W×H mm	730730290	730730290	930930290
net dimension	panel		L×W×H mm	85085045	85085045	1050105045
net weight	unit		kg	35	35	41	42	43
