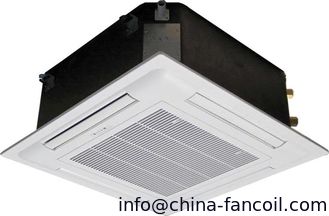

Water chilled ceiling concealed Cassette Fan coil unit 200-1400CFM-K type
1:Cassette type fan coil unit,4-way
2:E-heater is optional
3:CE certify and Rohs standrad
4:air volume from 200 to 1400cfm
1:4-way cassette type fan coil unit
air volume : 200cfm,300cfm,400cfm,500cfm,600cfm,800cfm,1000cfm,1200cfm,1400cfm
2:4-pipe system is optional
3:E-heater is optional
4:Flesh air can be intake
5: Duct connection is optional
6: Auto swing
7: BMS system can be optional
8: Remote controller is standard and wire controller is optional
9: Water drained pump can be select inside the unit (standard) or outside the unit(optional and easy to do maintain)
10:Easy to do maintain
11:Water valve can be optional whic installed already
12:Float switch inside to do alarm
model(4 tube system) | MFP-34KM4-(Q)KK1 | MFP-51KM4-(Q)KK1 | MFP-68KM4-(Q)KK1 | MFP-80KM4-(Q)KK1 | MFP-85KM4-(Q)KK2 | |||
air volume | H | m3/h | 340 | 510 | 680 | 800 | 850 | |
M | 290 | 400 | 540 | 650 | 700 | |||
L | 200 | 290 | 400 | 500 | 550 | |||
cooling capacity | TH | H | W | 1400 | 2100 | 2800 | 3250 | 3500 |
BTU/h | 4777 | 7165 | 9554 | 11089 | 11942 | |||
SH | W | 1050 | 1570 | 2098 | 2448 | 2650 | ||
BTU/h | 3583 | 5357 | 7158 | 8353 | 9042 | |||
TH | M | W | 1200 | 1793 | 2342 | 2794 | 2989 | |
SH | W | 850 | 1262 | 1619 | 1976 | 2100 | ||
TH | L | W | 1060 | 1571 | 2110 | 2467 | 2612 | |
SH | W | 675 | 1000 | 1340 | 1580 | 1643 | ||
heating capacity | H | W | 1080 | 1620 | 2160 | 2460 | 2700 | |
M | W | 870 | 1310 | 1762 | 2000 | 2160 | ||
L | W | 752 | 1102 | 1497 | 1700 | 1845 | ||
noise | H | 0Pa | dB(A) | 37 | 39 | 41 | 42 | 43 |
power input | H | 0Pa | W | 37 | 52 | 62 | 65 | 76 |
waterflow volume | Cooling | m3/h | 0.24 | 0.36 | 0.48 | 0.56 | 0.60 | |
waterflow volume | heating | 0.09 | 0.14 | 0.18 | 0.21 | 0.23 | ||
water pressure dropping | cooling | kPa | 8.22 | 8.54 | 12.88 | 13.54 | 16.45 | |
heating | 3.51 | 3.84 | 6.31 | 7.02 | 7.37 | |||
dimension of water(in & out)connection pipe | cooling/heating | ZG3/4" | ZG3/4" | ZG3/4" | ZG3/4" | |||
ZG3/4" | ZG3/4" | ZG3/4" | ZG3/4" | |||||
dimension of pipe | mm | ¢26 | ¢26 | ¢26 | ¢26 | ¢26 | ||
net dimension | unit | L×W×H mm | 570*570*290 | 730*730*290 | ||||
panel | 650*650*45 | 850*850*45 | ||||||
net weight | unit | kg | 25 | 25 | 27 | 28 | 34 |
