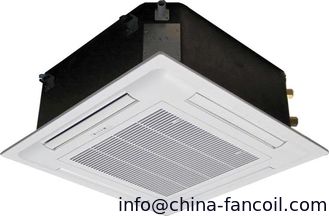

Water chilled ceiling concealed Cassette Fan coil unit 800CFM-K type 4 Tube

China Water chilled ceiling concealed Cassette Fan coil unit 800CFM-K type 4 Tube supplier

Large Image :  Water chilled ceiling concealed Cassette Fan coil unit 800CFM-K type 4 Tube

Product Details:

Place of Origin: China
Brand Name: MECO, DEKON OR OEM BRAND
Certification: CE
Model Number: Pls contact sales02@china-fancoil.com directly

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: Pls mail to sales02@china-fancoil.com for check
Packaging Details: Export packing
Delivery Time: 25-35days
Payment Terms: TT or LC
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description
High Light:

cassette fan coil unit

,

cassette fcu

,

fan coil units

Water chilled ceiling concealed Cassette Fan coil unit 200-1400CFM-K type

1:Cassette type fan coil unit,4-way
2:E-heater is optional
3:CE certify and Rohs standrad
4:air volume from 200 to 1400cfm



1:4-way cassette type fan coil unit

air volume : 200cfm,300cfm,400cfm,500cfm,600cfm,800cfm,1000cfm,1200cfm,1400cfm

2:4-pipe system is optional

3:E-heater is optional

4:Flesh air can be intake

5: Duct connection is optional

6: Auto swing

7: BMS system can be optional

8: Remote controller is standard and wire controller is optional

9: Water drained pump can be select inside the unit (standard) or outside the unit(optional and easy to do maintain)

10:Easy to do maintain

11:Water valve can be optional whic installed already

12:Float switch inside to do alarm



model(4 tube system) MFP-102KM4-(Q)KK2 MFP-136KM4-(Q)KK2 MFP-170KM4-(Q)KK3 MFP-204KM4-(Q)KK3 MFP-204KM4-(Q)KK3
air volume H m3/h 1020 1360 1700 2040 2380
M 850 1110 1400 1670 1950
L 680 860 1100 1300 1520
cooling capacity TH H W 4200 5600 7000 8400 9850
BTU/h 14330 19107 23884 28661 33608
SH W 3217 4200 5250 6300 7350
BTU/h 10976 14330 17913 21496 25078
TH M W 3570 4760 5950 7140 8355
SH W 2499 3332 4165 4998 5850
TH L W 3150 4200 5250 6300 7347
SH W 1998 2667 3333 4009 4663
heating capacity H W 3240 4320 5400 6480 7200
M W 2620 3489 4374 5251 5832
L W 2233 2978 3726 4453 4968
noise H 0Pa dB(A) 45 46 48 50 52
power input H 0Pa W 96 134 152 189 228
waterflow volume Cooling m3/h 0.72 0.96 1.21 1.45 1.70
waterflow volume heating 0.27 0.36 0.45 0.54 0.60
water pressure dropping cooling kPa 21.07 22.15 25.32 26.67 29.44
heating 8.26 8.56 10.87 11.65 12.31
dimension of water(in & out)connection pipe cooling/heating ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4"
ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4"
dimension of pipe mm 26 26 26 26 26
net dimension unit L×W×H mm 730*730*290 730*730*290 930*930*290
panel 850*850*45 850*850*45 1050*1050*45
net weight unit kg 35 35 41 42 43
Contact Us for more info:
Mr.John Ding/Sales Manager
--------------------------------------------------
MECO,the Expert of FAN COIL UNIT
Taizhou MECO Refrigeration Equipment Co.,Ltd
Tel: +86 574 88152763
Skype: John Ding
Johnding574@gmail.com
sales02@china-fancoil.com


For Fan coil units, our range include below catagories:
hydronic hi-wall fan coil unit;                                      ceiling concealed fan coil unit;
convector fan coil unit;                                                  high static pressure fan coil unit;
