Home ProductsCEILING CASSETTE FAN COIL UNIT

Water chilled ceiling concealed Cassette Fan coil unit 1200CFM-K type 4 Tube

Certification
Good quality Ceiling concealed FCU for sales
Good quality Ceiling concealed FCU for sales
Excellent product produced by Meco,all purchased items worked very good, tks.

—— Saliman

For your K series fan coil units, we liked it very much, the design is beautiful, only problem is prices for big sized models, anyway, i like it.

—— Roman-Silva

I'm Online Chat Now

Water chilled ceiling concealed Cassette Fan coil unit 1200CFM-K type 4 Tube

China Water chilled ceiling concealed Cassette Fan coil unit 1200CFM-K type 4 Tube supplier

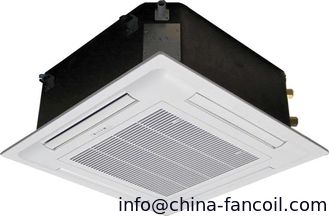

Large Image :  Water chilled ceiling concealed Cassette Fan coil unit 1200CFM-K type 4 Tube

Product Details:

Place of Origin: China
Brand Name: MECO, DEKON OR OEM BRAND
Certification: CE
Model Number: Pls contact sales02@china-fancoil.com directly

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: Pls mail to sales02@china-fancoil.com for check
Packaging Details: Export packing
Delivery Time: 25-35days
Payment Terms: TT or LC
Supply Ability: 10000pcs per month
Detailed Product Description
High Light:

cassette fan coil unit

,

cassette fcu

,

fan coil units

Water chilled ceiling concealed Cassette Fan coil unit 200-1400CFM-K type

1:Cassette type fan coil unit,4-way
2:E-heater is optional
3:CE certify and Rohs standrad
4:air volume from 200 to 1400cfm



1:4-way cassette type fan coil unit

air volume : 200cfm,300cfm,400cfm,500cfm,600cfm,800cfm,1000cfm,1200cfm,1400cfm

2:4-pipe system is optional

3:E-heater is optional

4:Flesh air can be intake

5: Duct connection is optional

6: Auto swing

7: BMS system can be optional

8: Remote controller is standard and wire controller is optional

9: Water drained pump can be select inside the unit (standard) or outside the unit(optional and easy to do maintain)

10:Easy to do maintain

11:Water valve can be optional whic installed already

12:Float switch inside to do alarm



model(4 tube system) MFP-102KM4-(Q)KK2 MFP-136KM4-(Q)KK2 MFP-170KM4-(Q)KK3 MFP-204KM4-(Q)KK3 MFP-204KM4-(Q)KK3
air volume H m3/h 1020 1360 1700 2040 2380
M 850 1110 1400 1670 1950
L 680 860 1100 1300 1520
cooling capacity TH H W 4200 5600 7000 8400 9850
BTU/h 14330 19107 23884 28661 33608
SH W 3217 4200 5250 6300 7350
BTU/h 10976 14330 17913 21496 25078
TH M W 3570 4760 5950 7140 8355
SH W 2499 3332 4165 4998 5850
TH L W 3150 4200 5250 6300 7347
SH W 1998 2667 3333 4009 4663
heating capacity H W 3240 4320 5400 6480 7200
M W 2620 3489 4374 5251 5832
L W 2233 2978 3726 4453 4968
noise H 0Pa dB(A) 45 46 48 50 52
power input H 0Pa W 96 134 152 189 228
waterflow volume Cooling m3/h 0.72 0.96 1.21 1.45 1.70
waterflow volume heating 0.27 0.36 0.45 0.54 0.60
water pressure dropping cooling kPa 21.07 22.15 25.32 26.67 29.44
heating 8.26 8.56 10.87 11.65 12.31
dimension of water(in & out)connection pipe cooling/heating ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4"
ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4"
dimension of pipe mm 26 26 26 26 26
net dimension unit L×W×H mm 730*730*290 730*730*290 930*930*290
panel 850*850*45 850*850*45 1050*1050*45
net weight unit kg 35 35 41 42 43

Contact Us for more info:
Mr.John Ding/Sales Manager
--------------------------------------------------
MECO,the Expert of FAN COIL UNIT
Taizhou MECO Refrigeration Equipment Co.,Ltd
Tel: +86 574 88152763
Skype: John Ding
Johnding574@gmail.com
sales02@china-fancoil.com


For Fan coil units, our range include below catagories:
hydronic hi-wall fan coil unit;                                      ceiling concealed fan coil unit;
convector fan coil unit;                                                  high static pressure fan coil unit;
