Concealed Duct Chilled Water Fan Coil-1400CFM

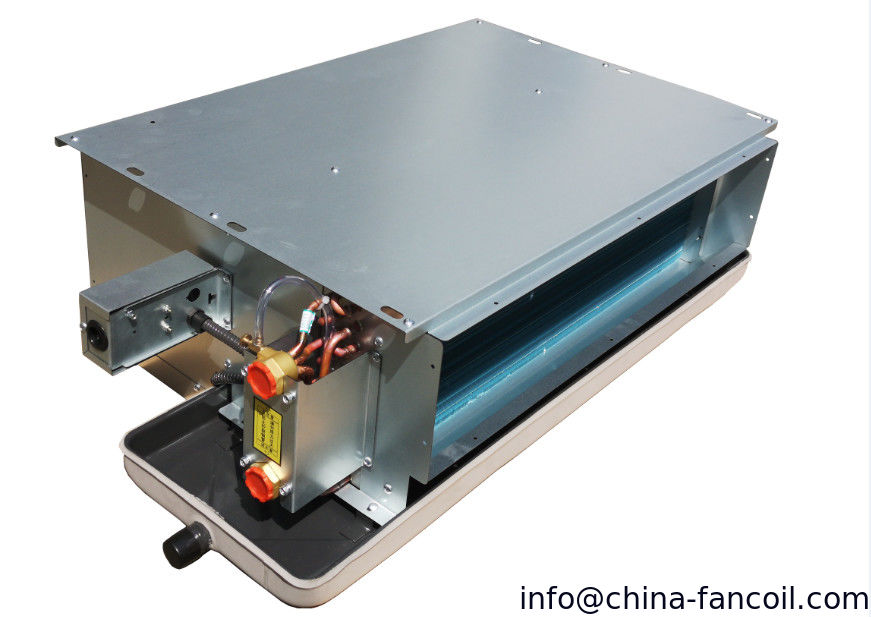

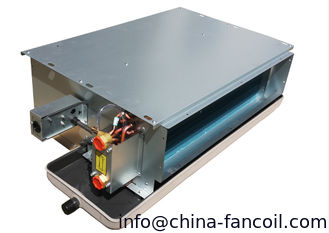

: Large Image : Concealed Duct Chilled Water Fan Coil-1400CFM

Product Details:

Place of Origin:	China
Brand Name:	MECO, DEKON OR OEM BRAND
Certification:	CE
Model Number:	http://www.china-fancoil.com

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs per model
Price:	check out by mail to info@china-fancoil.com
Packaging Details:	standard Export carton box
Delivery Time:	30-35days since deposit date
Payment Terms:	TT or LC at sight
Supply Ability:	10000pcs per month

Contact Now

Detailed Product Description

Type:	Fan Coil Unit	Model:	HVAC System
Function:	Air Conditioner

MECO Water chilled ceiling concealed duct type fan coil unit
air volume=200-1400CFM
height=230mm
return box and filter optional
air conditioner fan coil

El nuevo Fan & Coil Agua Helada Intensity es el complemento perfecto para unidades generadoras de agua helada. Cuenta con un diseño de bajo peralte.

Termostato incluido.
Capacidades de 1, 1.5 ,2 3, 4 y 5 TR en voltaje 220V. Solo Frío y Calefacción.
Volumen de aire de 200 a 1400 CFM.
Motor de 3 velocidades.
Equipo con caja plenum con filtro de aire.
Diseño de bajo peralte.
Serpentín intercambiable de izquierda a derecha.

Aplicaciones: Hospitales, Hoteles, Oficinas y Residencias

Mr.John Ding/Sales Manager

--------------------------------------------------

MECO,the Expert of FAN COIL UNIT

Taizhou MECO Refrigeration Equipment Co.,Ltd

Tel: +86 574 88152763

Skype: John Ding

Johnding574@gmail.com

sales02@china-fancoil.com

http://www.china-fancoil.com

PERFORMANCE OF DUCTED TYPE FAN COIL(4 TUBE)
model(4 tube system)				MFP-34WA4	MFP-51WA4	MFP-68WA4	MFP-85WA4	MFP-102WA4	MFP-136WA4	MFP-170WA4	MFP-204WA4	MFP-238WA4
power supply				220V,50Hz,1Ph
air volume		H	m³/h	340	510	680	850	1020	1360	1700	2040	2380
		M		270	380	515	660	765	1040	1280	1550	1800
		L		190	260	340	430	530	710	860	1050	1280
static pressure			Pa	12(30)	12(30)	12(30)	12(30)	12(30)	12(30)	12(30)	12(30)	12(30)
cooling capacity	TH	H	W	1800	2700	3600	4500	5400	7200	9000	10800	12600
	TH		BTU/h	6142	9212	12283	15354	18425	24566	30708	36850	42991
	SH		W	1341	2012	2682	3353	4023	5364	6705	8046	9387
	SH		BTU/h	4575	6865	9151	11440	13726	18302	22877	27453	32028
	TH	M	W	1458	2187	2916	3645	4374	5832	7290	8748	10206
	TH	M	W	1152	1728	2304	2880	3455	4607	5759	6911	8063
	SH	L	W	1134	1701	2268	2835	3402	4536	5670	6804	7938
	SH	L	W	930	1395	1860	2325	2790	3720	4649	5579	6509
heating capacity	H		W	1300	1940	2590	3240	3890	5180	6480	7780	9070
	M		W	1020	1530	2040	2550	3060	4070	5090	6110	7130
	L		W	820	1235	1630	2040	2450	3270	4080	4900	5720
noise	high speed	12Pa	dB(A)	35	36	38	40	43	44	45	46	49
noise		30Pa	dB(A)	39	41	43	45	48	49	50	52	54
power input		12Pa	W	34	41	59	73	91	118	146	182	216
power input		30Pa	W	41	54	65	82	98	132	168	206	247
waterflow volume		cool	m³/h	0.31	0.46	0.62	0.77	0.93	1.23	1.54	1.85	2.16
waterflow volume		heat		0.11	0.17	0.22	0.28	0.34	0.45	0.56	0.67	0.78
water pressure dropping		cool	kPa	7	15	18	23	28	30	22	30	36
water pressure dropping		heat		2.8	6	7.2	9.2	11.2	12	8.8	12	14.4
dimension of water(in & out)connection pipe				ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"
dimension of water(in & out)connection pipe				ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"
coil			type	high efficient copper pipe to wear Hydrophilic aluminum coil
dimension of water drain pipe			mm	ZG3/4"
dimension	L×W×H		mm	700462235	810462235	930462235	990462235	1070462235	1328462235	1593462235	1708462235	1928462235
weight			kg	17	19	20	23	30	32	37	40	43
