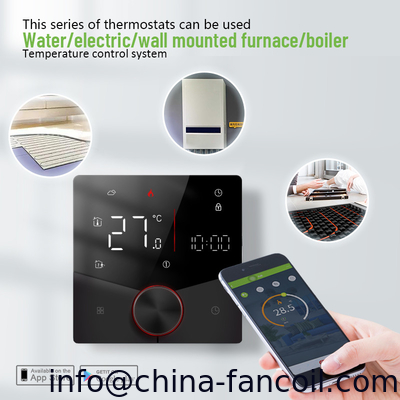

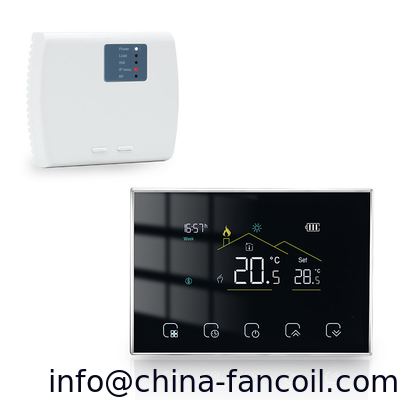

220V LCD Touch Screen Room Underfloor Heating Thermostat Weekly Programmable Thermoregulator Temperature Controller
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Electic Heater Or Gas Boiler | Week Program: | Yes |
|---|---|---|---|
| Model No.: | DSK-9C | IP Level: | IP20 |
220V LCD Touch Screen Room Underfloor Heating Thermostat Weekly Programmable Thermoregulator Temperature Controller
Model NO. DSK-9C
Technical Data:
- Voltage: AC200~240V 50/60Hz
- Power consumption: less than 1.5W
- Setting range: 5 ~ 35 degree centigrade
- Limitation range: 5 ~ 35 degree centigrade (factory setting: 35 degree centigrade
- Protecting grade: IP20
- Housing material: self-extinguishing PC
- Dimension: 86 x 86 x 13 mm
Package includes: 1 x Room thermostat
1 x external sensor/probe (3m)
2 x screws
1 x English user manual
Function
1. Detective and display room temperature
2. Room temperature settting
3.. control on/ off of heating and cooling equipments
4. fan speed control
5. control on/ff of motorized valves
6. suitable for gas boiler, floor heating.
Technical Data
| Set TEMP range | 5-35 ℃ | Power supply | 220VAC±10%,50/60Hz |
| Accuracy | ±1℃ | Rated current | GA 3A/ GB 16A&25A |
| Sensor Type | NTC sensor | Power consumption | <2W |
| External sensor | NTC sensor with 3 meters wire | Week program | 5+2 day program |
| Ambient Condition | -5-55 ℃ | Operating Humidity | 5~90%RH (no condensing) |
| Color | White or black | Protection Class | IP20 |
| Housing Material | PC+ABS Flame Retardant plastics | Dimension ( W × H × D ) | 86*86*14mm |
| Certificate | CE & ISO9001 | Hole pitch | 60mm (standard) |
Packaging & Delivery
Packaging Details
Inner packing: 1 pcs / paper box for ditital thermostat
Outer packing: 50 pcs/ carton for digital thermostat
Carton size: 47.5*32*24.5 CM
Volume: 0.038m³/carton
Groos weight: 15.00KG/ carton
Port
Ningbo
Lead Time :
Less than 20000pcs of room thermostat, in 15 days;
