High Static Duct Fan Coil Unit-3400m³/h

China High Static Duct Fan Coil Unit-3400m³/h supplier
High Static Duct Fan Coil Unit-3400m³/h supplier High Static Duct Fan Coil Unit-3400m³/h supplier High Static Duct Fan Coil Unit-3400m³/h supplier

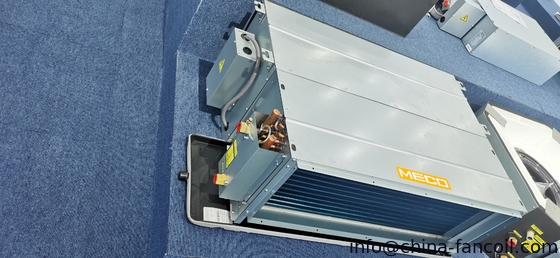

Large Image :  High Static Duct Fan Coil Unit-3400m³/h

Product Details:

Place of Origin: China
Brand Name: MECO
Certification: CE/EMC
Model Number: http://www.china-fancoil.com

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs per model
Price: check out by mail to sales02@china-fancoil.com
Packaging Details: Standard export packing
Delivery Time: 30-35days since deposit date
Payment Terms: TT or LC at sight
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description

Features
Cooling capacity 9.0Kw-25.2KW air flow 1700m3/h-4760m3/h
E-heater is optional
Classical elegant design
No-spangle galvanized sheet, beautiful appearance
High static pressure, long distance air supply
the static pressure is Max.200Pa, and Min .120Pa
big diameter fan, big air volume, low noise

Advantages
Superior air distribution for comfortable living
The conditioned air of the high static pressure fan coil units can be effectively distributed to every corner of the room through the duct connection and this realize a more pleasant environment for a comfort living.

Compact design helps blend with interior decor.
Built-in type high static pressures FCU are designed with compact size. This design is able to provide some saving in space for installation.

Benefit
Versatility
Multiple rooms can be cooled together at the same time by using just one unit of fan coil unit.
Fresh air intake for healthy living
Fresh air can be introduced into the building through the design of fresh air intakes. This will help to improve the indoor air quality.

Application
Our High static pressure fan coil units, widely used in theater, restaurant, office buildings, ect.

Instructions
Standard export packing cartons; Please read the instruction manual before install our fan coil units.

PERFORMANCE OF HIGH STATIC PRESSURE DUCT TYPE FAN COIL UNIT(HAW series,2 pipe system)
modelunitMFP-136HA(W)MFP-170HA(W)MFP-204HA(W)MFP-238HA(W)MFP-272HA(W)MFP-306HA(W)MFP-340HA(W)MFP-408HA(W)
High speedm3/h13601700204023802720306034004080
Medium speedm3/h10901360163519002180245027203260
Low speedm3/h8151020122514301630183020402450
Cooling capacitykW7.2910.812.614.416.21821.6
Heating capacitykW10.813.516.218.921.624.32732.4
Water volumem3/h1.231.541.852.162.462.773.083.7
Static pressurePa120120120120120120120120
Water pressure droppingkPa2528303536424350
fantypedouble inlet forward-curve centrifugal fan
quantity12
Motortype3 speed permanent split capacity motor
quantity1
power supply220V~ 50Hz 1Ph
power input(w)3804204505205508809001100

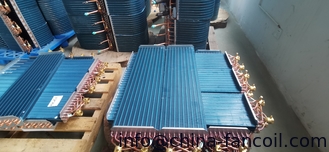

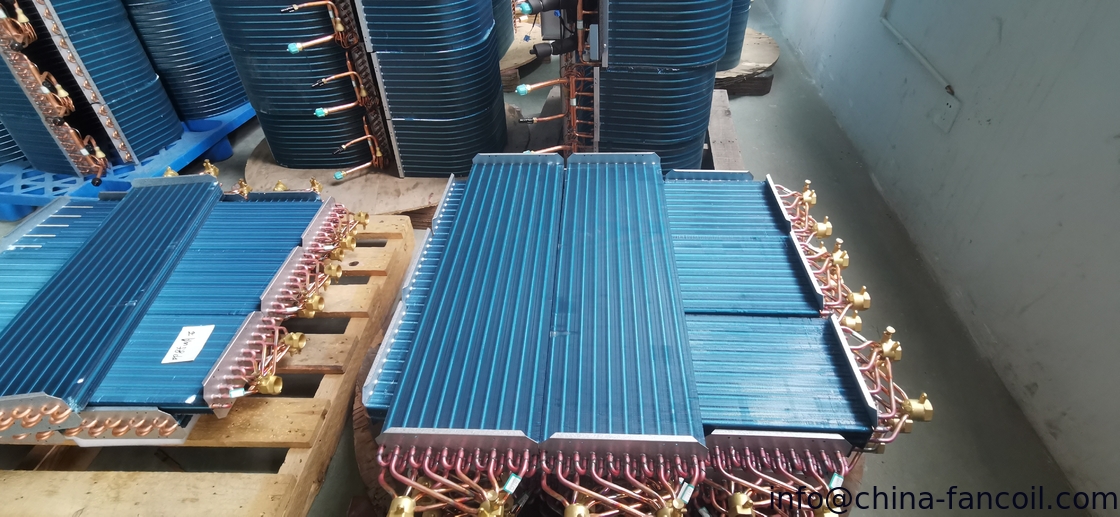

CoiltypeCopper tube coat aluminum fin
working pressure1.6MPa
faced area(m2)0.2560.2850.2850.3340.3340.4020.4020.494
Pipe connectionwater inlet3/4"
water outlet3/4"
water drainage3/4"
　dimension(mm)970*760*4251050*760*4251050*760*4251190*760*4251190*760*4251380*760*4251380*760*4251640*760*425
net weight(kg)4749505455606180
