Water chilled Ceiling floor type Fan coil unit 1200CFM
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | ceiling floor fan coil,ceiling floor fcu,floor ceiling fan coil |
||
|---|---|---|---|
Water chilled Ceiling floor type Fan coil unit 200CFM -1400CFM
ceiling floor type fan coil
ceiling&floor
air volume=2380m3/h(1400CFM)
2 pipe and 4 pipe is optional
CE & ROHS standard
For Fan coil units, our range include below catagories:
Contact Us for more info:
Mr.John Ding/Sales Manager
--------------------------------------------------
MECO,the Expert of FAN COIL UNIT
Taizhou MECO Refrigeration Equipment Co.,Ltd
Tel: +86 574 88152763
Skype: John Ding
http://www.china-fancoil.com

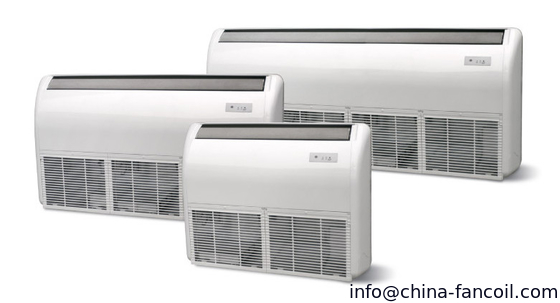

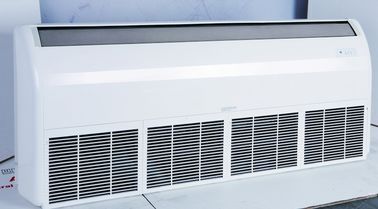

Ceiling/floor type fan coil
1.Diversiform installationway available to be installed under ceiling or placed on the floor,saves space maximum
2.Luxury appearance design,not only meet the cooling(heating) demand,but also beautify indoor decoration.
3.Auto swing function three-dimensional wide angle airflow, makes indoor airflow more even and enhances comfort of airflow
4.Elaborate structure design makes installation and maintenance more convenient.
| PERFORMANCE OF CEILING FLOOR TYPE FAN COIL(2 TUBE SYSTEM) | |||||||
| model(2 tube system) | MFP-136ZDM | MFP-170ZDM | MFP-204ZDM | MFP-238ZDM | |||
| air volume | H | m3/h | 1360 | 1700 | 2040 | 2380 | |
| M | 1040 | 1280 | 1550 | 1800 | |||
| L | 710 | 860 | 1050 | 1280 | |||
| static pressure | Pa | 0 | 0 | 0 | 0 | ||
| cooling capacity | TH | H | W | 7200 | 9000 | 10800 | 12600 |
| BTU/h | 24566 | 30708 | 36850 | 42991 | |||
| SH | W | 5385 | 6746 | 8109 | 9062 | ||
| BTU/h | 18374 | 23017 | 27668 | 30920 | |||
| TH | M | W | 6499 | 7926 | 9389 | 10605 | |
| W | 4278 | 5447 | 6669 | 7262 | |||
| SH | L | W | 5660 | 7295 | 8619 | 8989 | |
| W | 3317 | 4460 | 5300 | 5555 | |||
| heating capacity | H | W | 10800 | 13500 | 16200 | 18900 | |
| M | W | 7987 | 10557 | 13101 | 14011 | ||
| L | W | 5464 | 7048 | 8714 | 9778 | ||
| noise | H | 0Pa | dB(A) | 46 | 48 | 50 | 51 |
| power input | H | 0Pa | W | 134 | 152 | 189 | 228 |
| waterflow volume | m3/h | 1.23 | 1.54 | 1.85 | 2.16 | ||
| water pressure dropping | kPa | 25 | 32 | 33 | 38 | ||
| dimension of water(in & out)connection pipe | in | ZG3/4" | ZG3/4" | ZG3/4" | ZG3/4" | ||
| out | ZG3/4" | ZG3/4" | ZG3/4" | ZG3/4" | |||
| The maximum pressure | MPa | 1.6 | 1.6 | 1.6 | 1.6 | ||
| dimension of water drain pipe | mm | ￠26 | ￠26 | ￠26 | ￠26 | ||
| unit dimennsion | L×W×H | mm | 1288*673*243 | 1672*673*243 | |||
| unit weight | kg | 40 | 42 | 45 | 45 | ||
