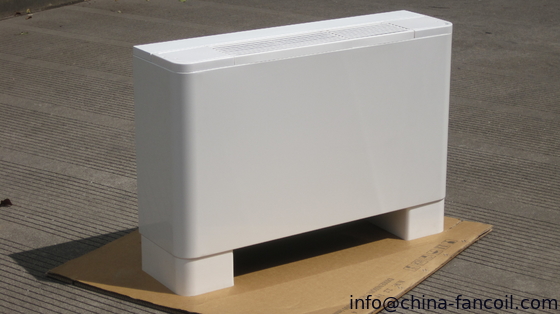

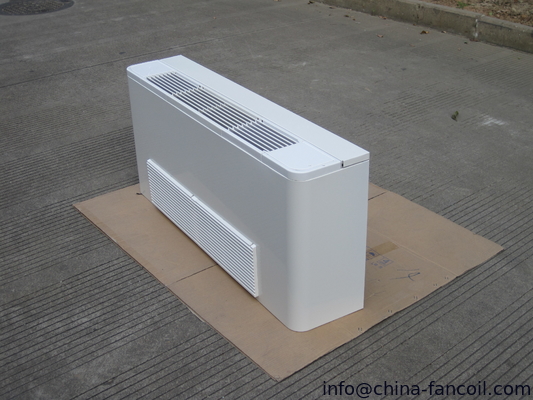

Vertical & Horizontal Fan Coil with 0-10V BLDC motor

MECO Water chilled Universal fan coil unit

Air volume=200CFM-1400CFM(340m³/h-2380m³/h)

cooling capacity:1.8Kw--12.6Kw(0.5RT--3.5RT)

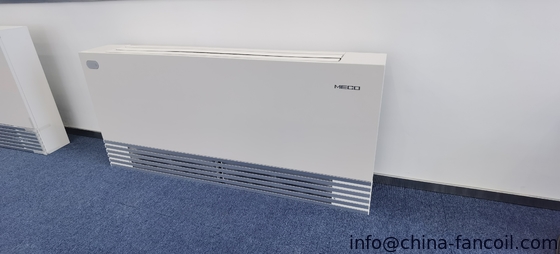

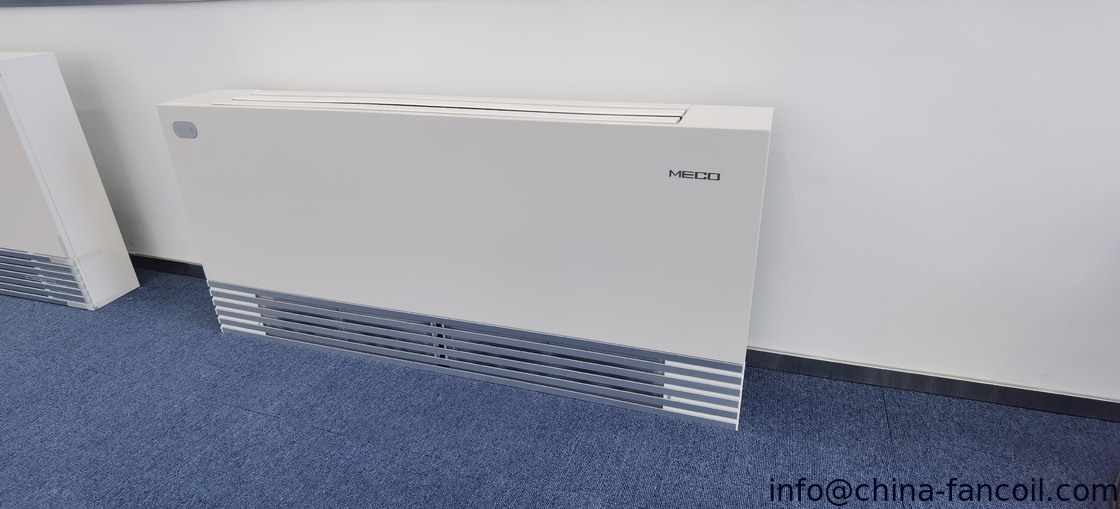

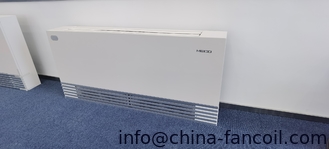

Can be installed by ceiling mounted,floor standing or wall mounted. Save space maximum

Symmetric-design allows it the change the outlet pipe in left or right side according to actual installation. Allows you to change the water flow direction according to you actual needs during installation

1. fan

Our fans are made by international professional fan manufacture with stable quality and reliable character with routine dynamic balance precise debug. Fan runs stably and quietly.

2. Water collection tray

Adopt high class panel,with plastic sprayed on the surface,therefore it is smooth and shiny rusty-proof as well Introducing one-off pressed forming technique,there is no welding line and point deal with heat preservation to assure the tray flat and compact avoiding quadratic leakage. Sloping design of bidirectional air guide outlet, aster the condensate is flow speed, no exist water, therefore, reducing the breeding ratio of bacteria. Outsize condensate tray design prevents coil and water pipe inlet and outlet joints from leak.

3. Heat exchanger

High quality purple copper, with high  diathermanous efficiency, tenacity and rigidity characteristic to bear high hydraulic pressure especially, suits super high building use. Distance of fins is improved by computer emulation optimum design with experimental feedback, supply sufficient heat exchange area, smooth airflow and high efficient heat exchange.

4.Air return box is optional, which can ease installation, reducing construction cost.

5.High efficiency

Adopt high efficient heat exchanger and huge airflow centrifugal fan enhances unit diathermanous effect.

6. 6 kind of air distribution solution is optional. Bottom air return, or side air return.

High efficient copper pipe to wear Hydrophilic aluminum coil.

2 pipes and 2 rows type as standard. 4 pipe is optional.

Water valve inside is optional.
