wireless control with Lora control

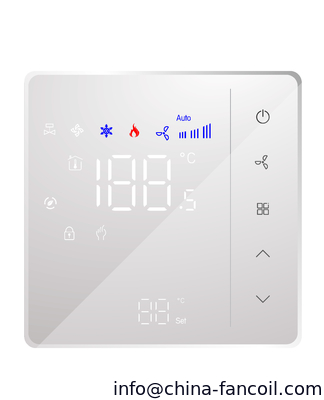

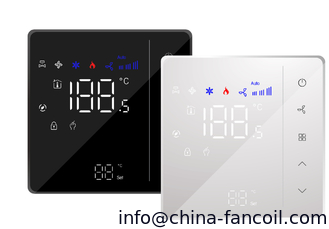

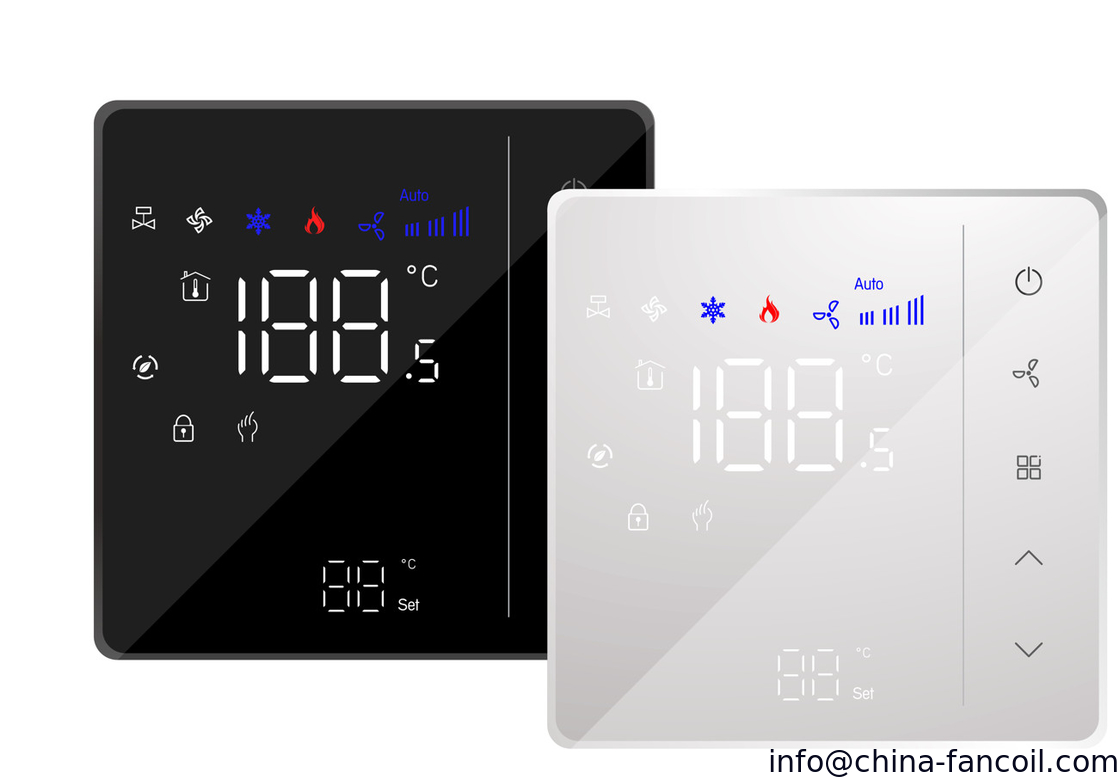

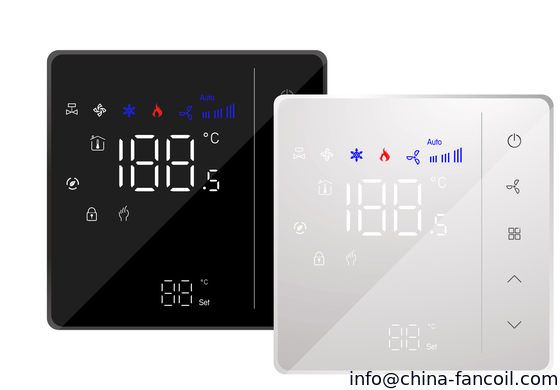

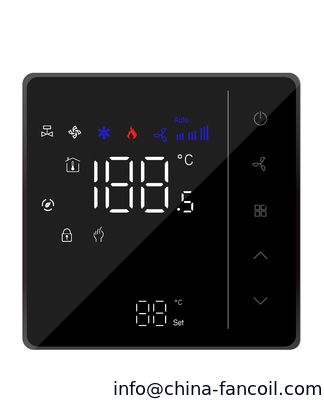

LCD digital thermostat, adopts LoRa wireless
communication technology, utilizes large screen digital display control technology,
ARM processor, modular switch power supply with high stability, flame retardant
shell (flame retardant grade V0).

Sensor:NTC Accuracy:±0.5℃
Temp. Range:5 -35℃ Power Consumption:<1.5W
Timing error:<1％ Power Supply:95~240VAC, 50 ~60Hz
Current Load:5A for fan and 3A for valve
Shell Material:PC (Fireproof)
Dimension:86x86x13.3mm
Installation box:86*86mm or European 60mm
Ambient Temp.:0 ~ 45℃,5 ~ 95％RH(Non condensing)
Storage Temp:-5~ 55℃

1. Communication Interface: LoRa wireless communication RF；
2. Wide-viewing angle, large LCD display with beautiful and reasonable function
partition;
3. Operation panel can display working mode, setting temperature, indoor
temperature, indoor humidity, operating mode, fan speed, clock (optional), water
valve on/off;

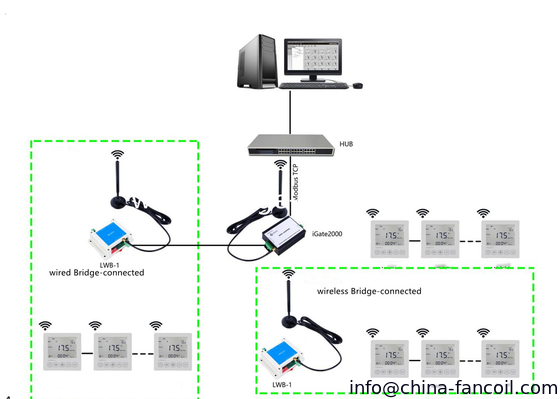

4. Routing function. When the communication signal between the thermostat in the
local area and the LORA gateway is not ideal, thermostat in the adjacent area can
also serve as a router to establish the communication channel.
5.Support two-wire/three-wire valves(ON/OFF); support two-pipe/four-pipe FCU
system;
6. Four-period timing function, parameters can be set, outstanding energy saving
effect；
7. Shell material: V0 grade flame retardant PC；
8. White back light panel, convenient for night operation；
9. Low temperature protection;
10. Standard 86 box installation.

Modern desgin similar as a cell phone.
Beautiful Frame CHROME creates elegant life.
Acrylic lenses to avoid the finger scrath.
Touch Button makes simple operation.
Large screen display with backlight is easy to
read—even in the dark.
Four periods program schedules maximize
comfort and economy.
One-touch temp control overrides program
schedule at any time.
Precise comfort control keeps temperature within
0.5°C of the level you set.
Internal and external sensor selectable is
suitable for any place. (customized)
Data memory when power is off. (selectable)
Easy installation.
86mm hidden box and european 60mm round
box is available.
