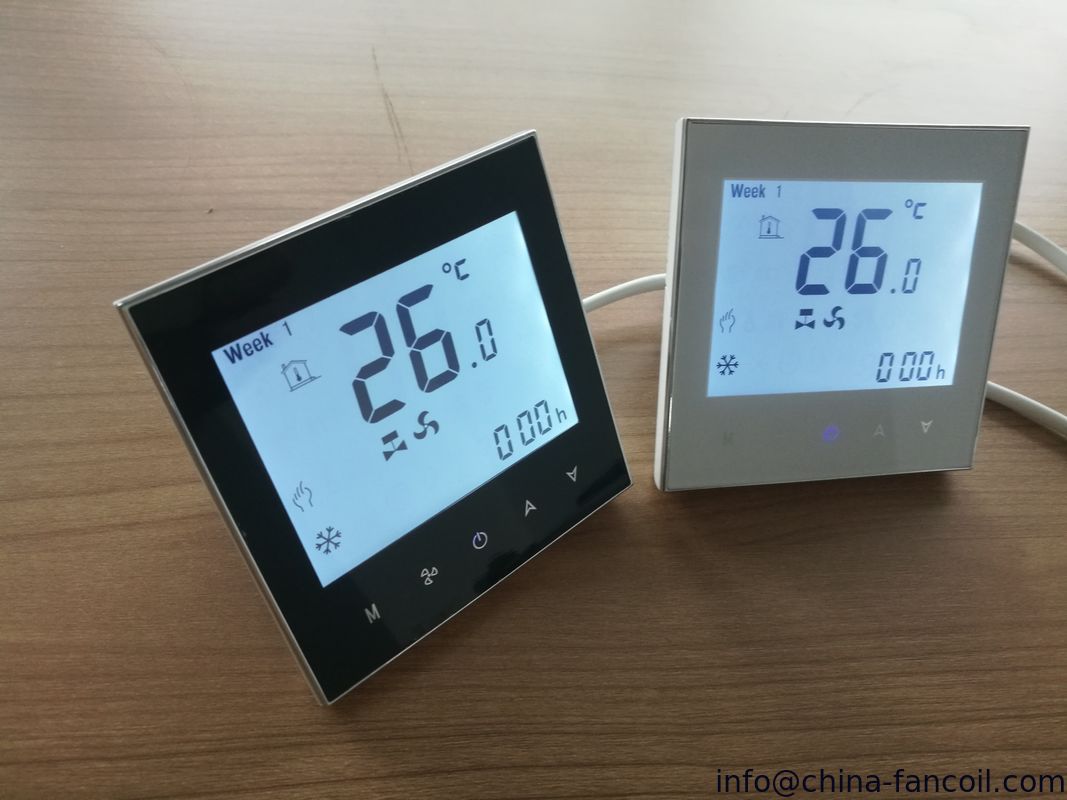

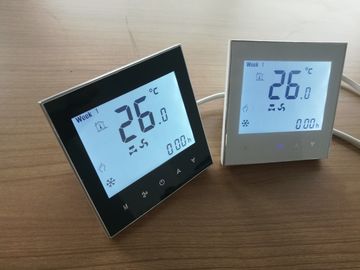

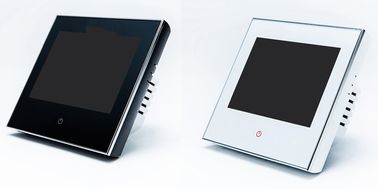

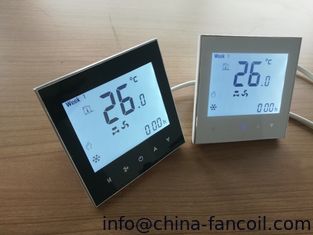

Fan Coil Unit Control with Modbus communication

Modern Touch Screen
Room Thermostats are designed to on/off control
the fans and valves in air conditioner applications
via comparison of the room temperature and
setting temperature as reaching the aim of
comfort and saving energy. BAC-1000 are
microprocessor based thermostat with LCD
display.

Modern desgin similar as a cell phone.
Beautiful Frame CHROME creates elegant life.
Acrylic lenses to avoid the finger scrath.
Touch Button makes simple operation.
Large screen display with backlight is easy to
read—even in the dark.
Four periods program schedules maximize
comfort and economy.
One-touch temp control overrides program
schedule at any time.
Precise comfort control keeps temperature within
0.5°C of the level you set.
Internal and external sensor selectable is
suitable for any place. (customized)
Easy installation.
86mm hidden box and european 60mm round
box is available.

Sensor:NTC Accuracy:±0.5℃
Temp. Range:5 -35℃ Power Consumption:<1.5W
Timing error:<1％ Power Supply:95~240VAC, 50 ~60Hz
Current Load:5A for fan and 3A for valve
Shell Material:PC (Fireproof)
Dimension:86x86x13.3mm
Installation box:86*86mm or European 60mm
Ambient Temp.:0 ~ 45℃,5 ~ 95％RH(Non condensing)
Storage Temp:-5~ 55℃

For Fan coil units, our range include below catagories:
