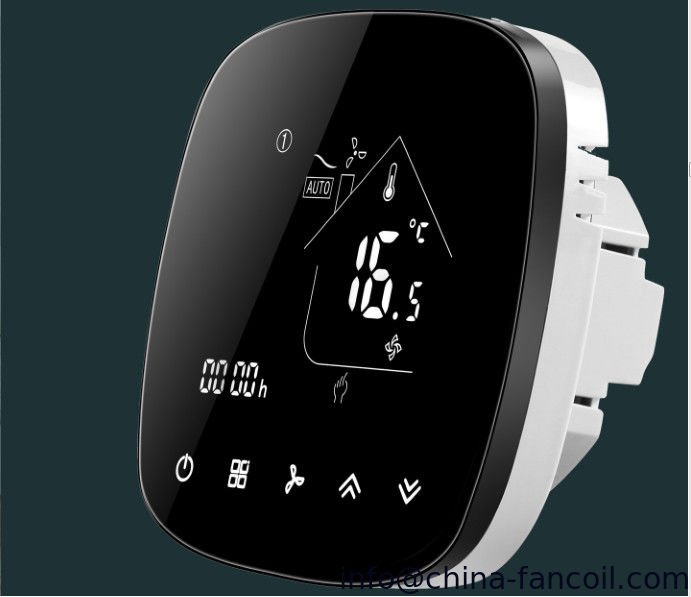

thermostat controller with Modbus communication
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Design: | Occhio-Big Eyes | Series: | DKT-S600 |
|---|---|---|---|
| Application: | Water/electric/boiler Under Floor Heating And FCU | App Control: | Smart WIFI App Control Available |
| Echo Control: | Amazon Echo Or Google Home Accessable | Auto-restart: | Yes, With Data Memory Auto Restart Function |
| ℃ & ℉: | Changable | Time Programable: | 5+2 Six Periods Programmable |
| High Light: | duct type fan coil unit,concealed duct fan coil unit,fan coil unit |
||
TECHNICAL DATA
Power Supply: 95 ~ 240 VAC, 50 ~ 60HZ
Fan Relay Amps Resistance: 5A; Inductive: 3A
Valve Relay Amps Resistance: 3A; Inductive: 1A
Sensor: NTC3950, 10K
Accuracy: ±0.5℃ or ±1℉
Set Temp. Range: 5 -35℃
Dispaly Temp. Range: 5 ~ 99℃
Power Consumption: <1.5W
Timing Error: <1%
Ambient Temp.: 0 ~ 45 ℃
Ambient Humidity: 5 ~ 95 % RH (Non Condensing)
Storage Temp.: -5 ~ 45 ℃
Timing Error: < 1%
Shell Material: PC +ABS ( Fireproof)
Wire Terminals: Wire 2 x 1.5 mm2 or 1 x 2.5 mm2
Protection Class: IP30
Buttons: Capactive Touch Buttons
WIRING
Packaging & Delivery
Packaging Details
UNIT WEIGHT: 0.25KG/PC;
100 PCS/CTN;
GROSS WEIGHT: 26.5KG;
PAPER BOX PACKING;
BOX DIMENSION: 48*48*35CM
