BMS Control systems for Fan Coil Units

China BMS Control systems for Fan Coil Units supplier
BMS Control systems for Fan Coil Units supplier BMS Control systems for Fan Coil Units supplier BMS Control systems for Fan Coil Units supplier BMS Control systems for Fan Coil Units supplier

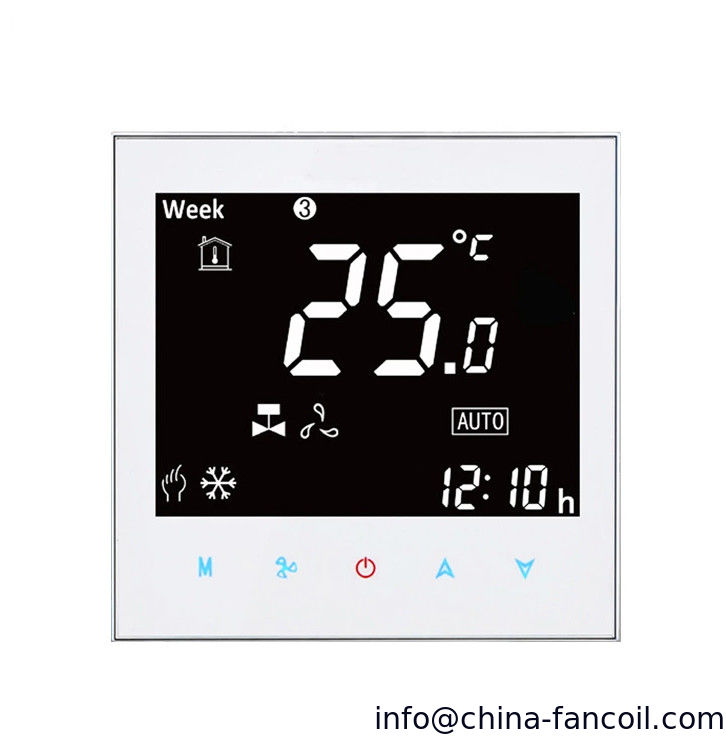

Large Image :  BMS Control systems for Fan Coil Units

Product Details:

Place of Origin: China
Certification: CE
Model Number: SNOW WHITE TF-704

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs per model
Price: check out by mail to
Packaging Details: standard Export carton box
Delivery Time: to be discussed
Payment Terms: TT or LC at sight
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description
APP: Optional Modbus RS485: Optional
Amazon Echo: Optional ℃ & ℉: Yes, Changable
Auto Restart: Yes, Standard Programmable: 5+2 Six Periods Programmable
2 Pipe And 4 Pipe: Optional
High Light:

duct type fan coil unit


concealed duct fan coil unit


fan coil unit

Termostato WIFI app intelligente para unidad de fan coil agua fría




SNOW WHITE Design TF-704 series Touch Screen Room Thermostat.
Termostato basado en microprocesador con pantalla LCD.
Diseñado para controlar los ventiladores y las válvulas para aplicaciones de unidades de fan coils de agua fría


1. Pantalla grande con luz de fondo blanca;
2. Modbus RS485 RTU opcional;
3. Teléfono inteligente App WIFI control remoto opcional;
4. Fan coil y Floor Heaing ambos disponibles;
5. Caja oculta de 86 mm y caja redonda europea de 60 mm, ambas disponibles.
6. Amazon Echo o Google Home accesible.
7. La temperatura para ℃ y ℉ es cambiante.
8. Función de reinicio automático disponible.
9. 5 + 2 seis períodos programables maximizan la comodidad y económico.




Sensor: NTC
Exactitud: ± 0.5 ℃
Temperatura. Rango: 5 -35 ℃
Consumo de energía: <1.5W
Error de tiempo: <1%
Fuente de alimentación: 110 ~ 240V, 50 ~ 60Hz
Carga actual: Inducción para ventilador: 3A; Resistivo para ventilador: 5A
Material de Shell: PC (incombustible)
Dimensión: 86x86x13.3mm
Caja de instalación: 86 * 86 mm o 60 mm Europea
Temp. Ambiente: 0 ~ 45℃,5 ~ 95%RH
Temp de almacenamiento: -5 ~ 55 ℃




WIFI Smart phone app control Room Thermostat for fan coil unit / TF-704



SNOW WHITE Design TF-704 series Touch Screen Room Thermostat.
Microprocessor based thermostat with LCD display.
Designed to control the fans and valves for chilled water fan coil unit applications.


1. Big screen display with white backlight;
2. Modbus RS485 RTU optional;
3. Smart phone App WIFI remote control optional;
4. Fan coil and Floor Heaing both available;
5. Hidden 86mm box and European 60mm round box both available.
6. Amazon Echo or Google Home accessable.
7. Temperature for ℃ & ℉ is changeable.
8. Auto restart function available.
9. 5+2 six periods programmable maximize comfort and economic.

Temp. Range:5 -35℃
Power Consumption:<1.5W
Timing error:<1%
Power Supply:110~240V, 50 ~60Hz
Current Load: Induction for fan: 3A; Resistive for fan: 5A
Shell Material:PC (Fireproof)
Installation box:86*86mm or European 60mm
Ambient Temp.:0 ~ 45℃,5 ~ 95%RH(Non condensing)
Storage Temp:-5~ 55℃




Q1. Can I have a sample order for wifi thermostat?
A: Yes, we welcome sample order to test and check quality. More detail please contact with usdirectly.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks.

Q3. Do you have any MOQ limit for wifi thermostat?
A: 50pcs. 10pcs for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx, TNT or by air or by sea. It usually takes 3-5 days to arrive.

Airline and sea shipping is also optional. Airline need 3-6 days and sea shipping need 20-35 days.

Q5. How to proceed an order for wifi thermostat?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on wifi thermostat?
A: Yes. When quantity is more than 200 pcs, your logo could be printed on the thermostat and app.
Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 18 months warranty to our products.

Q8: How to deal with the faulty?
A: Your thermostat carries an 18 month warranty from date of purchase. Service outwith the warranty period may incur a charge.

Q9. Can you do OEM and ODM for us?
A: Yes. We are professional in provide OEM and ODM service.



For Fan coil units, our range include below catagories:
